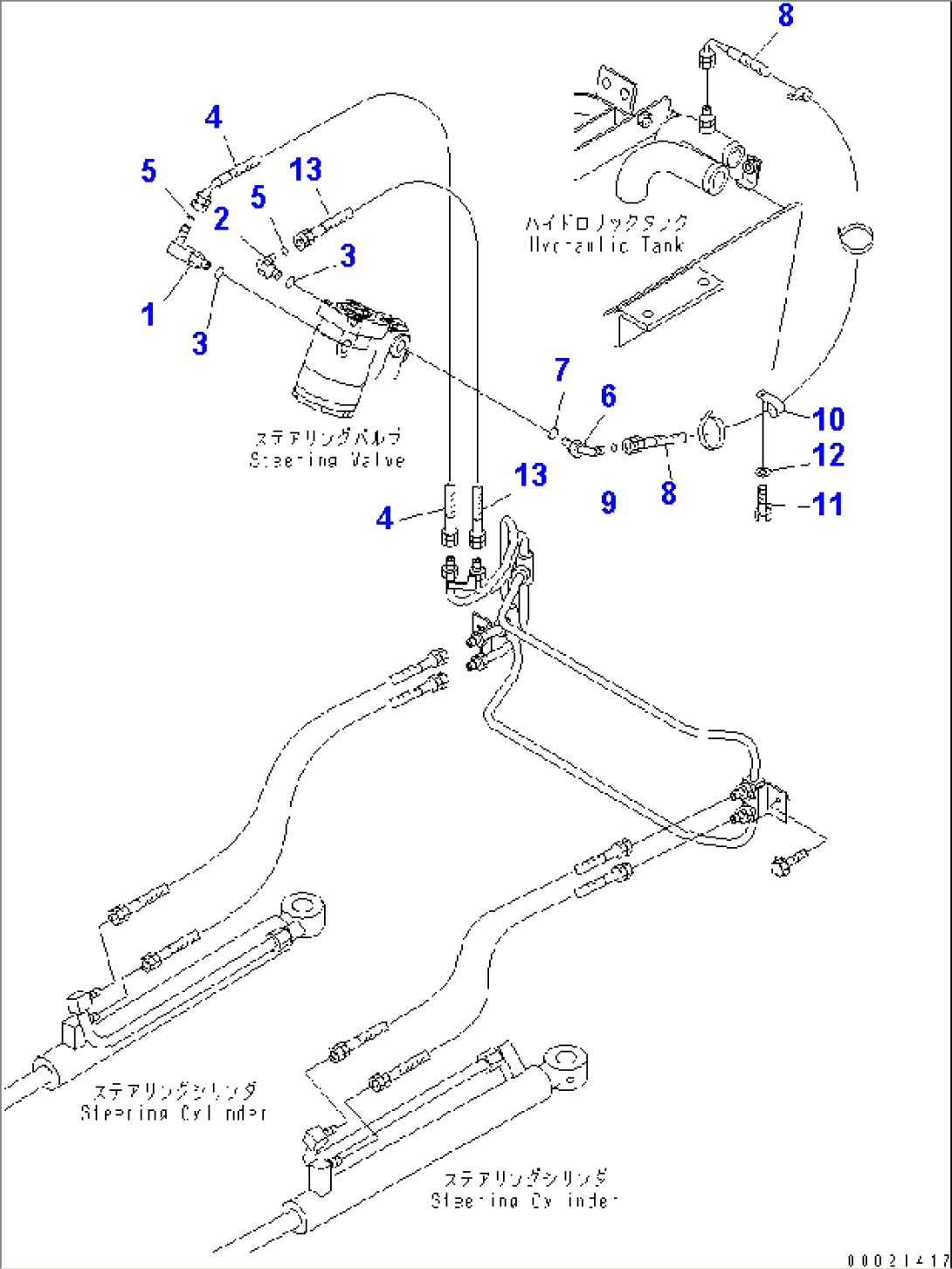

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-62-21411 | ELBOW | 12001- | |
| 2 | 56B-88-12320 | ELBOW | 12001- | |
| 3 | 07000-12014 | O-RING | 11258- | |
| 4 | 415-62-21431 | HOSE | 12018- | |
| 4 | 415-62-21430 | HOSE | 12001-12017 | |
| 5 | 02896-11009 | O-RING | 12001- | |
| 6 | 56B-88-12320 | ELBOW | 12001- | |
| 7 | 07000-12014 | O-RING | 11258- | |
| 8 | 415-62-21480 | HOSE | 12001- | |
| 9 | 02896-11009 | O-RING | 12001- | |
| 10 | 04434-51610 | CLIP | 12001- | |
| 11 | 01010-81020 | BOLT | 12001- | |
| 12 | 01643-31032 | WASHER | 12001- | |
| 13 | 415-62-21420 | HOSE | 12001- |
