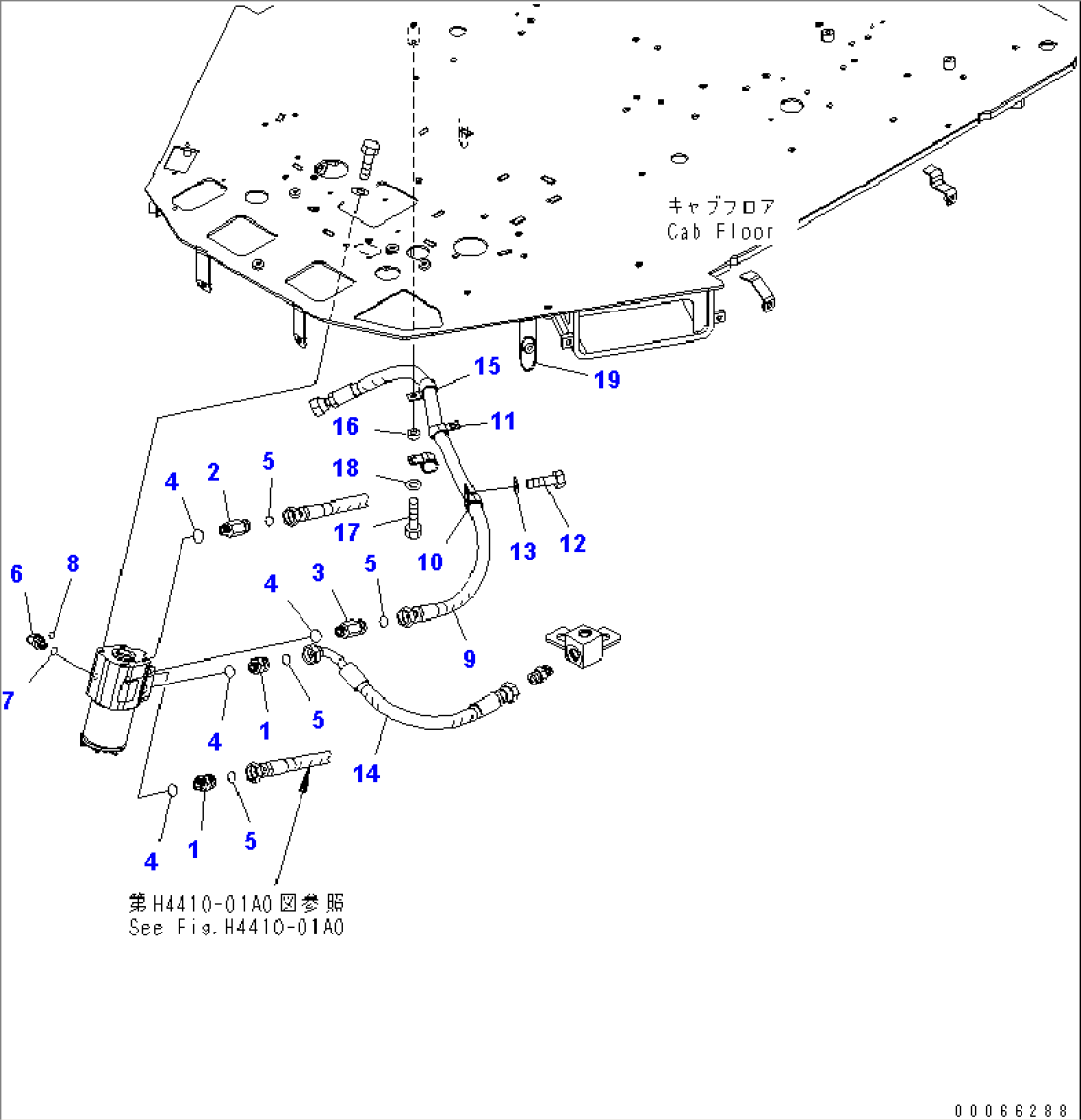

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-31120 | NIPPLE | 70136-70342 | |
| 2 | 417-62-31110 | NIPPLE | 70136-70342 | |
| 3 | 417-62-31110 | NIPPLE | 70136-70342 | |
| 4 | 415-62-11560 | O-RING | 70136-70342 | |
| 5 | 02896-11012 | O-RING | 70136-70342 | |
| 6 | 418-62-32162 | ELBOW | 70136-70342 | |
| 7 | 416-62-11480 | O-RING | 70136-70342 | |
| 8 | 02896-11008 | O-RING | 70136-70342 | |
| 9 | 417-62-41190 | HOSE, 1050MM | 70136-70342 | |
| 10 | 04434-51810 | CLIP | 70136-70342 | |
| 11 | 04434-51810 | CLIP | 70136-70342 | |
| 12 | 01010-81016 | BOLT | 70136-70342 | |
| 13 | 01643-31032 | WASHER | 70136-70342 | |
| 14 | 417-62-42430 | HOSE, 430MM | 70136-70342 | |
| 15 | 04434-51810 | CLIP | 70136-70342 | |
| 16 | 198-43-15310 | COLLAR | 70136-70342 | |
| 17 | 01016-51030 | BOLT | 70136-70342 | |
| 18 | 01643-31032 | WASHER | 70136-70342 | |
| 19 | 08034-20519 | BAND | 70136-70342 |
