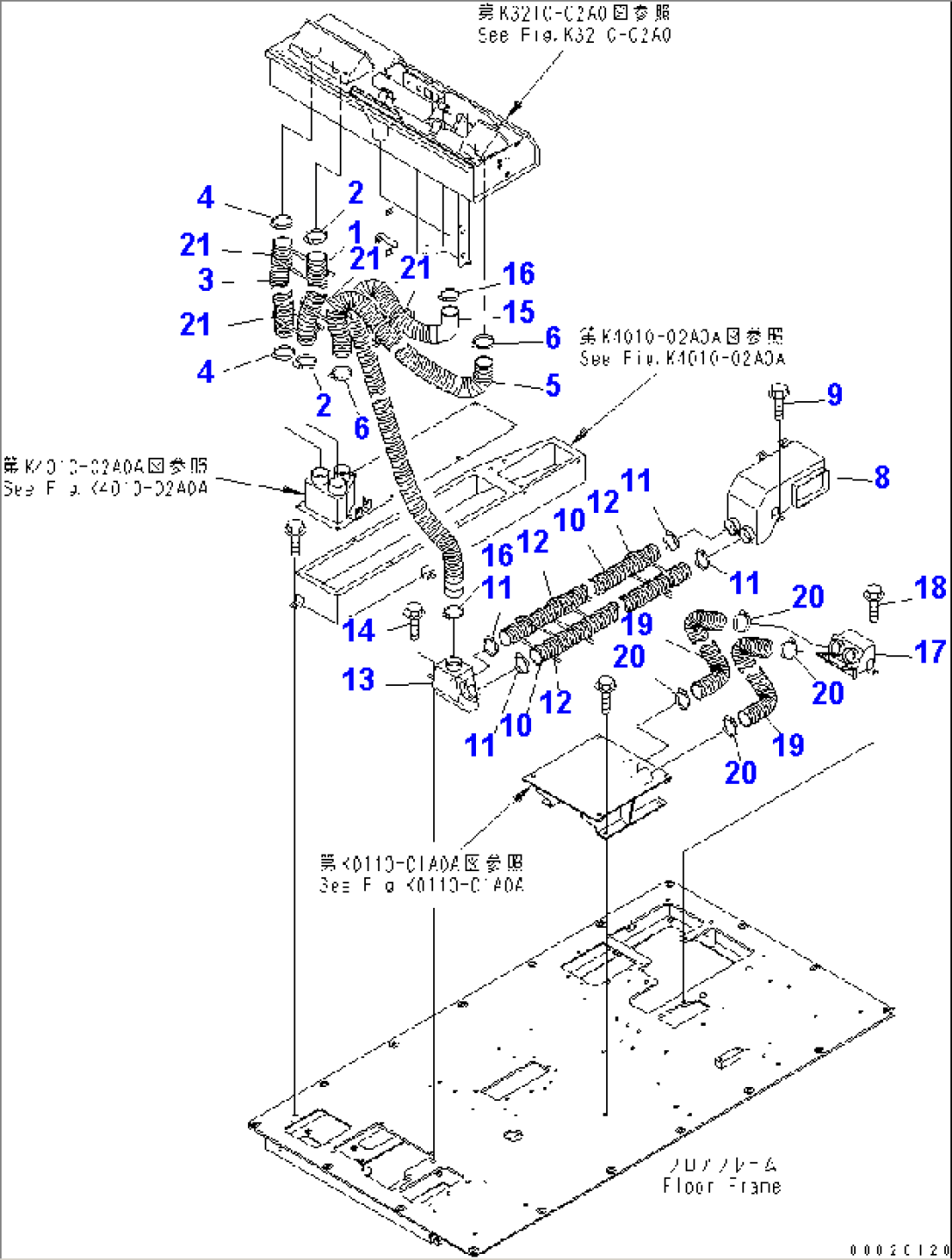

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-07-76562 | HOSE | 1601- | |
| 2 | 07281-00709 | CLAMP | 1601- | |
| 3 | 567-07-76562 | HOSE | 1601- | |
| 4 | 07281-00709 | CLAMP | 1601- | |
| 5 | 567-07-76572 | HOSE | 1601- | |
| 6 | 07281-00709 | CLAMP | 1601- | |
| 8 | 567-07-76510 | DUCT | 1601- | |
| 9 | 01435-01016 | BOLT | 1601- | |
| 10 | 567-07-76530 | HOSE | 1601- | |
| 11 | 07281-00609 | CLAMP | 1601- | |
| 12 | 08034-00876 | BAND | 1601- | |
| 13 | 567-07-76521 | DUCT | 1601- | |
| 14 | 01435-01016 | BOLT | 1601- | |
| 15 | 567-07-76541 | HOSE | 1601- | |
| 16 | 07281-00609 | CLAMP | 1601- | |
| 17 | 567-07-76410 | DUCT | 1601- | |
| 18 | 01435-01016 | BOLT | 1601- | |
| 19 | 567-07-76420 | HOSE | 1601- | |
| 20 | 07281-00609 | CLAMP | 1601- | |
| 21 | 08034-00536 | BAND | 1601- |
