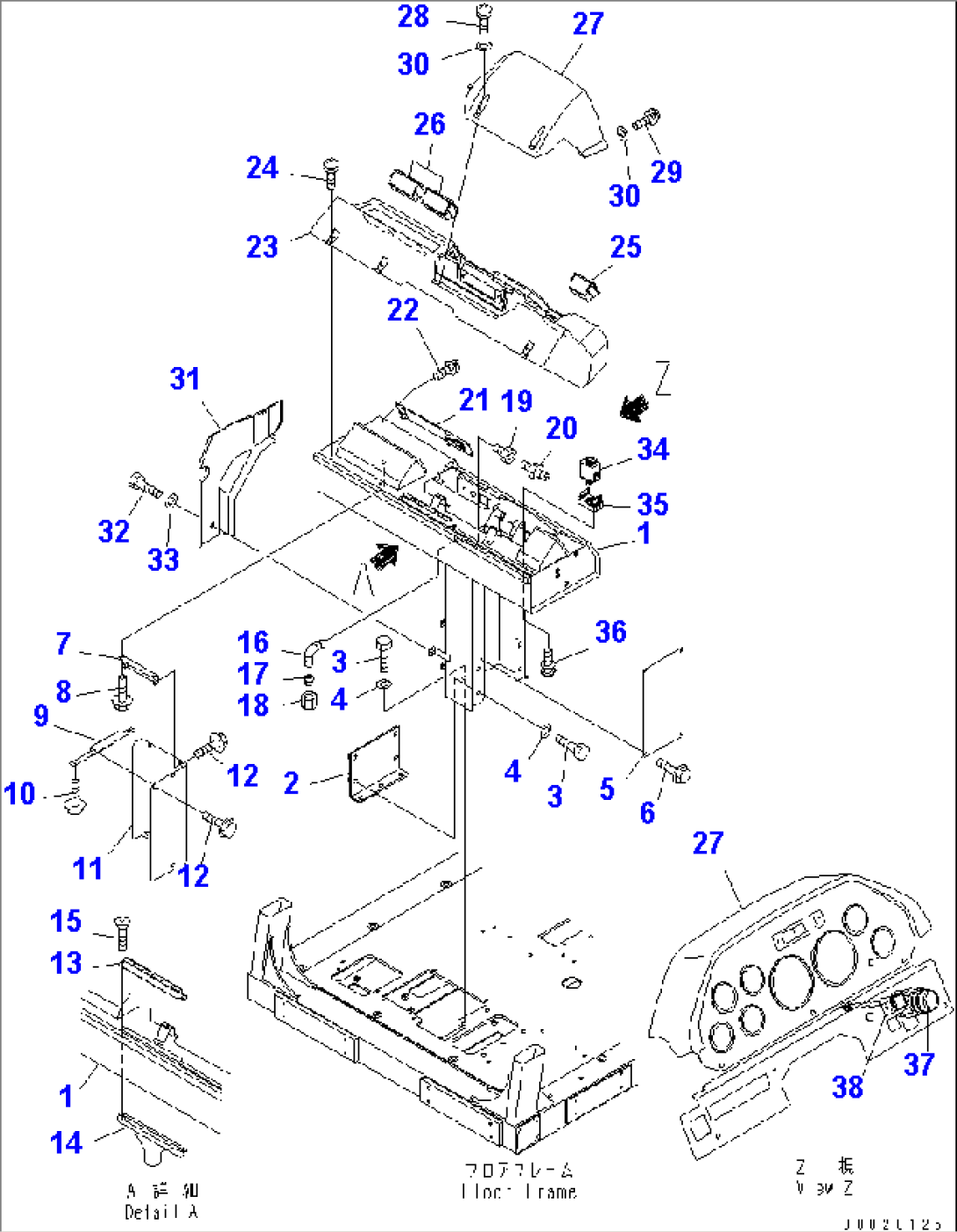

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-71165 | DASHBOARD | 1601- | |
| 2 | 567-54-71293 | BRACKET | 1425- | |
| 3 | 01010-81225 | BOLT | 1425- | |
| 4 | 01643-31232 | WASHER | 1425- | |
| 5 | 567-54-71281 | COVER | 1425- | |
| 6 | 01435-00612 | BOLT | 1425- | |
| 7 | 567-07-73631 | BRACKET | 1425- | |
| 8 | 01435-00816 | BOLT | 1425- | |
| 9 | 567-07-73531 | BRACKET | 1601- | |
| 10 | 01435-00816 | BOLT | 1601- | |
| 11 | 567-07-73592 | COVER | 1601- | |
| 12 | 01435-00816 | BOLT | 1601- | |
| 13 | 09487-30220 | NOZZLE | 1425- | |
| 14 | 567-07-76580 | NOZZLE | 1601- | |
| 15 | 01224-40412 | SCREW | 1425- | |
| 16 | 07834-00613 | ELBOW | 1425- | |
| 17 | 07831-00612 | SLEEVE | 1425- | |
| 18 | 07832-00614 | NUT | 1425- | |
| 19 | 07326-10201 | ADAPTER | 1425- | |
| 20 | 07213-50510 | CONNECTOR | 1425- | |
| 21 | 567-07-73652 | PLATE | 1601- | |
| 22 | 01023-20616 | SCREW | 1425- | |
| 23 | 567-54-71272 | COVER | 1601- | |
| 24 | 01023-20616 | SCREW | 1425- | |
| 25 | 567-54-73190 | LOUVER | 1601- | |
| 26 | 567-54-73180 | LOUVER | 1601- | |
| 27 | 567-54-71460 | HOOD | 1601- | |
| 28 | 01023-20616 | SCREW | 1425- | |
| 29 | 01023-20625 | SCREW | 1601- | |
| 30 | 01642-40608 | WASHER | 1601- | |
| 31 | 569-54-63673 | COVER | 1425- | |
| 32 | 01010-81016 | BOLT | 1425- | |
| 33 | 01643-31032 | WASHER | 1425- | |
| 34 | 582-06-11810 | TIMER | 1601- | |
| 35 | 582-06-11820 | SOCKET | 1601- | |
| 36 | 01023-10414 | SCREW | 1601- | |
| 37 | 568-95-11361 | SWITCH | 1601- | |
| 38 | 567-40-74340 | LAMP | 1601- |
