| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10504 | HOSE | 52001- | |
| 2 | 09484-00560 | CONNECTOR | 52001- | |
| 3 | 423-07-23240 | CLIP,HOSE | 52001- | |
| 4 | 421-07-23950 | PLATE | 52001- | |
| 5 | 421-07-23960 | SHEET | 52001- | |
| 6 | 01435-00610 | BOLT | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa900l 3 s/n 52001 up
- Operator's compartment and control system
- Floor sub (heater piping)
Поиск по каталогу

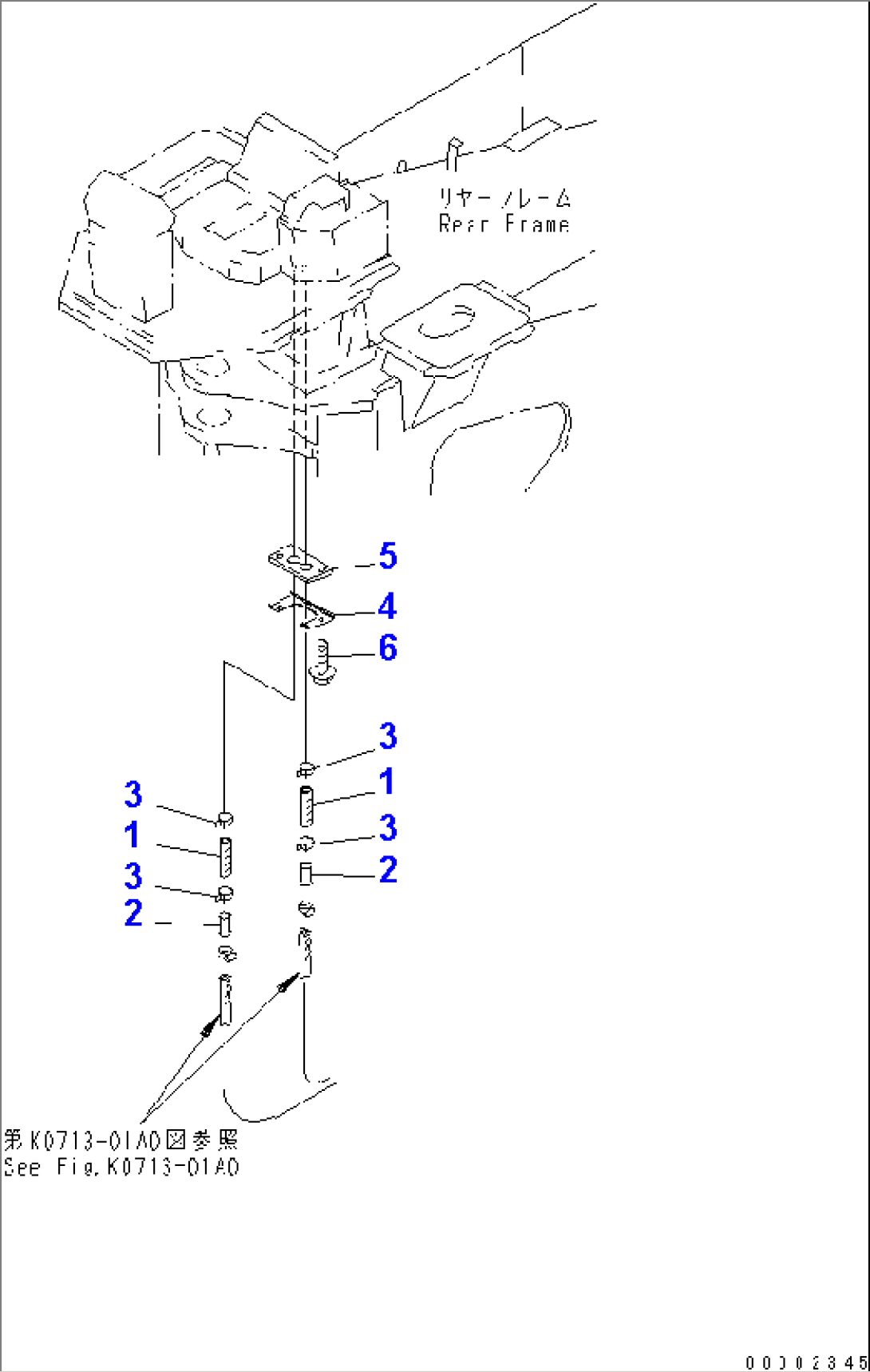

FLOOR SUB (HEATER PIPING)
