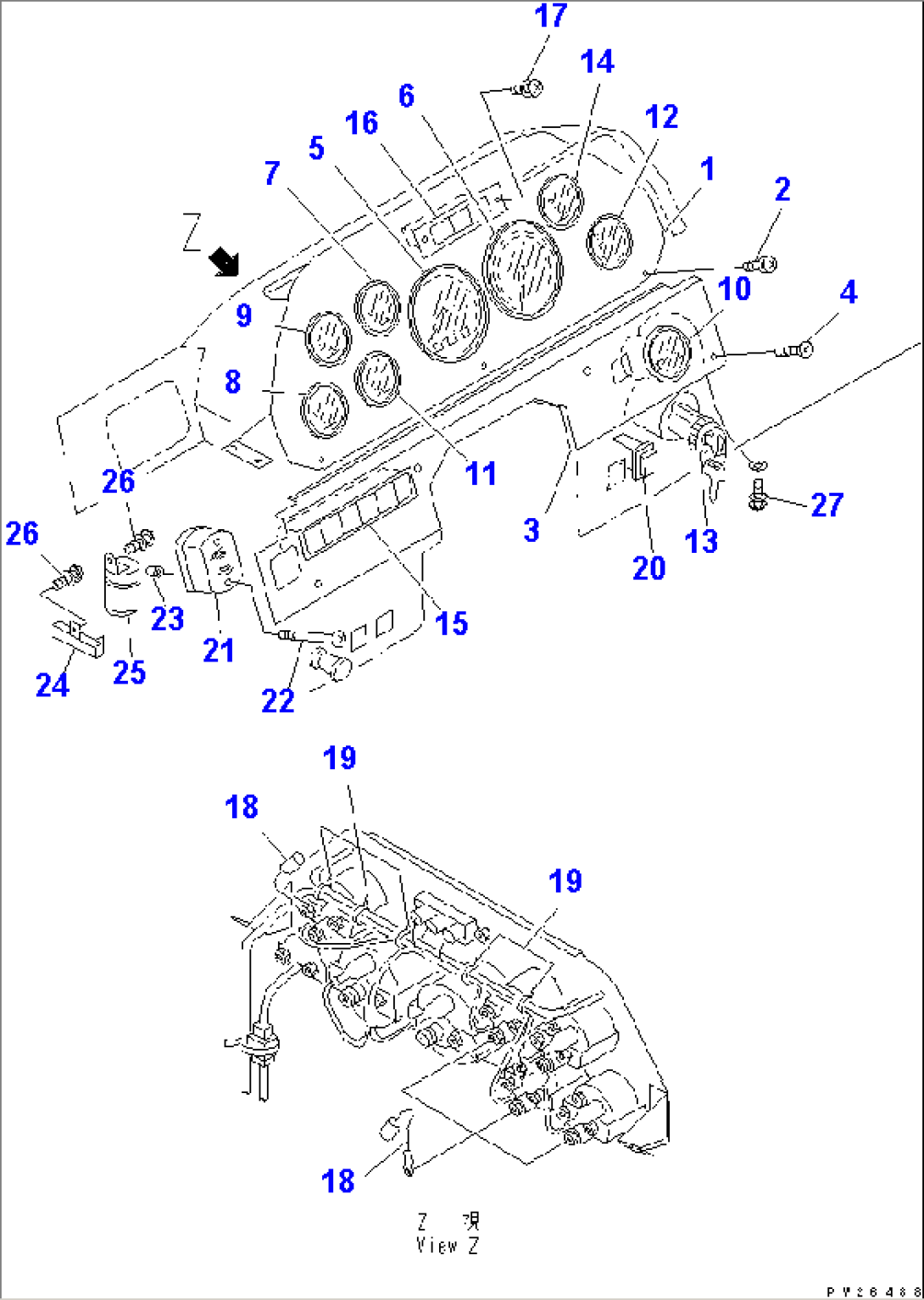

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-06-71190 | PANEL | 1425-1600 | |
| 2 | 01023-20616 | SCREW | 1425-@ | |
| 3 | 567-54-71610 | PLATE | 1425-1600 | |
| 4 | 01224-70630 | SCREW | 1425-@ | |
| 5 | 569-06-66210 | SPEEDOMETER | 1425-@ | |
| 08111-12430 | BULB¤ 3W | 1425-@ | ||
| 6 | 08682-00000 | TACHOMETER | 1425-1600 | |
| 7 | 08645-00001 | GAUGE,WATER TEMPERATURE | 1425-@ | |
| 8 | 08646-00001 | GAUGE,TORQUE CONVERTER OIL TEMP. | 1425-@ | |
| 9 | 512-06-11420 | GAUGE,AIR PRESSURE | 1425-@ | |
| 08111-12430 | BULB¤ 3W | 1425-@ | ||
| 10 | 08687-22403 | METER,SERVICE | 1425-@ | |
| 11 | 566-06-15871 | GAUGE,BRAKE OIL TEMPERATURE | 1425-@ | |
| 08111-12430 | BULB¤ 3W | 1425-@ | ||
| 12 | 7831-35-2001 | INDICATOR | 1425-@ | |
| 13 | 08086-10000 | SWITCH,STARTING | 1425-@ | |
| 14 | 08652-10000 | GAUGE,FUEL | 1425-@ | |
| 15 | 567-06-72120 | LAMP | 1425-@ | |
| 16 | 567-06-43110 | LAMP | 1425-@ | |
| 567-06-43120 | BULB | 1425-@ | ||
| 17 | 01023-20512 | SCREW | 1425-@ | |
| 18 | 566-07-12231 | CONDENSER | 1425-@ | |
| 19 | 08034-20519 | BAND | 1425-@ | |
| 20 | 569-06-61211 | SWITCH,HEAT | 1425-1600 | |
| 569-06-61320 | BULB | 1425-1600 | ||
| 569-06-61350 | BULB,WHITE | 1425-1600 | ||
| 21 | 569-06-61860 | LAMP | 1425-@ | |
| 08110-12410 | BULB¤ 12W | 1425-@ | ||
| 22 | 421-06-15330 | SCREW | 1425-@ | |
| 23 | 421-06-15321 | GROMMET | 1425-@ | |
| 24 | 569-06-61620 | RESISTOR | 1425-@ | |
| 25 | 08077-32400 | FLASHER | 1425-@ | |
| 26 | 01023-20612 | SCREW | 1425-@ | |
| 27 | 01023-20614 | SCREW | 1425-1600 |
