| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-31760 | NIPPLE | 55001- | |
| 2 | 426-62-32660 | HOSE | 55001- | |
| 3 | 426-62-32670 | HOSE | 55001- | |
| 4 | 426-62-32680 | HOSE | 55001- | |
| 5 | 02896-61009 | O-RING | 55001- | |
| 6 | 415-62-11560 | O-RING | 55001- |
- Главная
- Каталог запчастей
- Колесные бульдозеры
- Wd600 6 s/n 55001 55003
- Operator's compartment and control system
- Floor sub (steering pilot line)(#55001 )
Поиск по каталогу

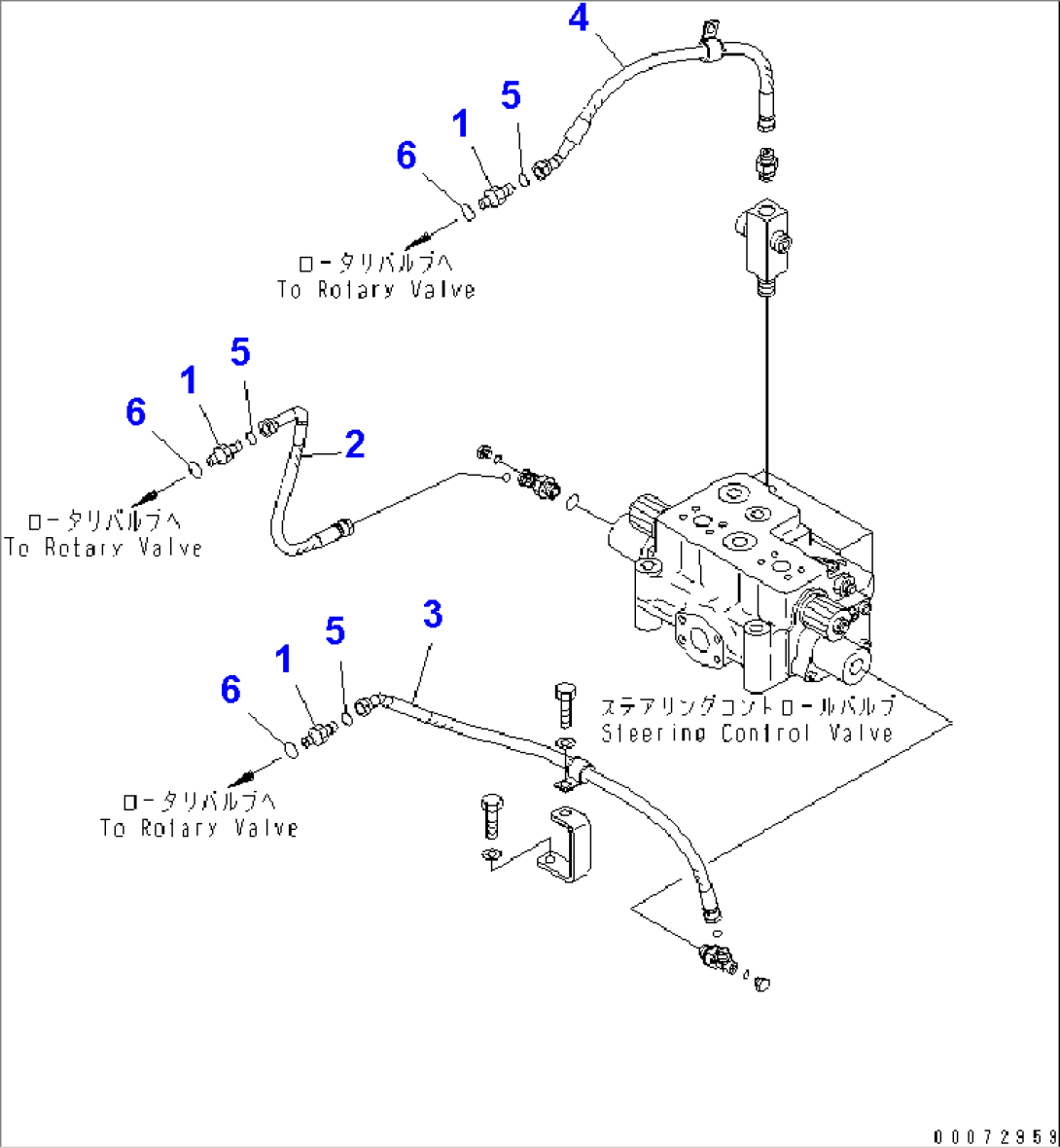

FLOOR SUB (STEERING PILOT LINE)(#55001-)
