| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-06-72181 | TIMER | 52001- | |
| 2 | 195-06-41180 | SWITCH,STEP LAMP | 52001- | |
| 3 | 01435-00608 | BOLT | 52001- | |
| 4 | 569-06-61960 | RELAY,STEP LAMP | 52001- | |
| 5 | 287-06-16420 | BRACKET | 52001- | |
| 6 | 01435-00608 | BOLT | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa800l 3 s/n 52001 up
- Operator's compartment and control system
- Floor sub (step light related parts)
Поиск по каталогу

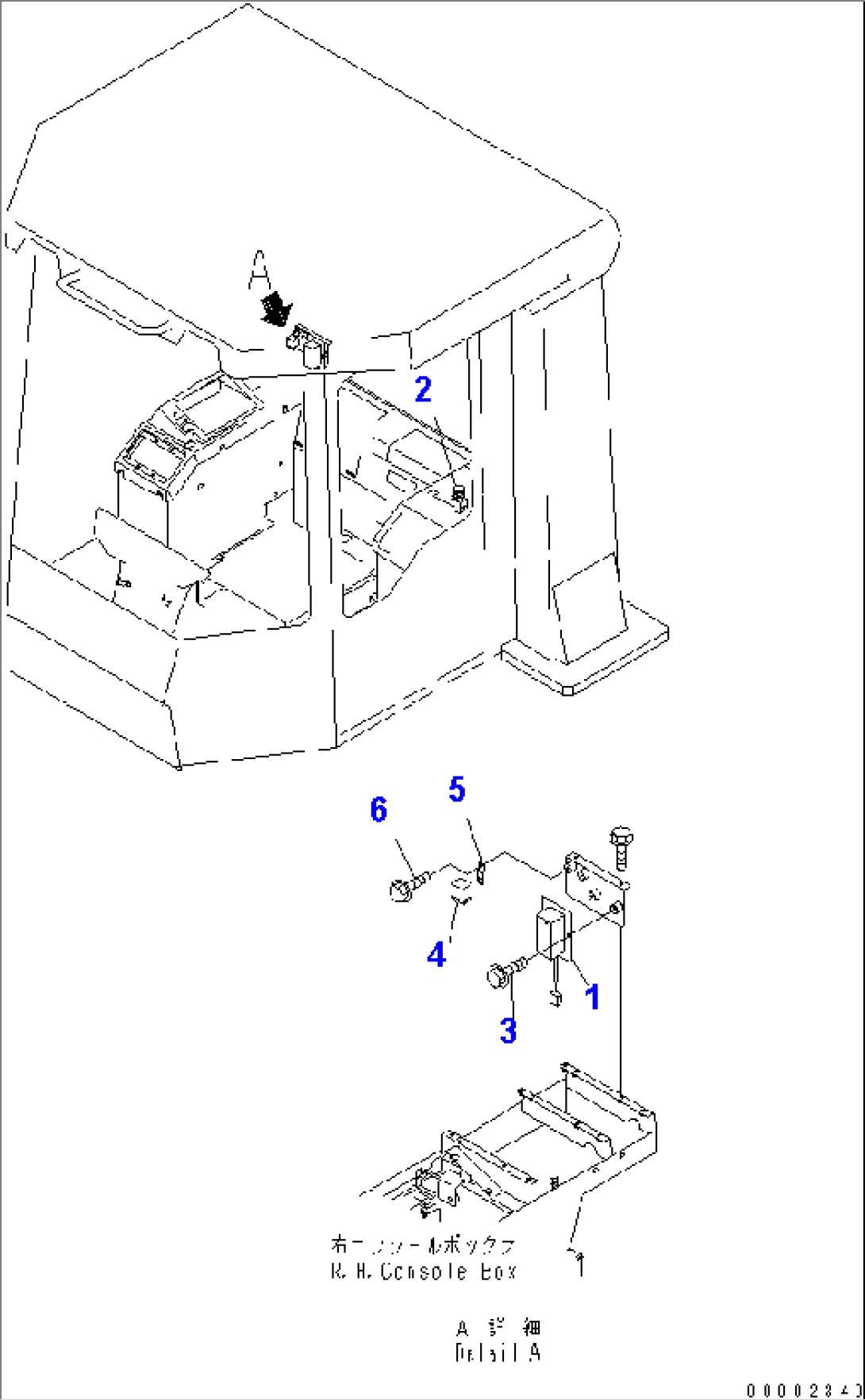

FLOOR SUB (STEP LIGHT RELATED PARTS)
