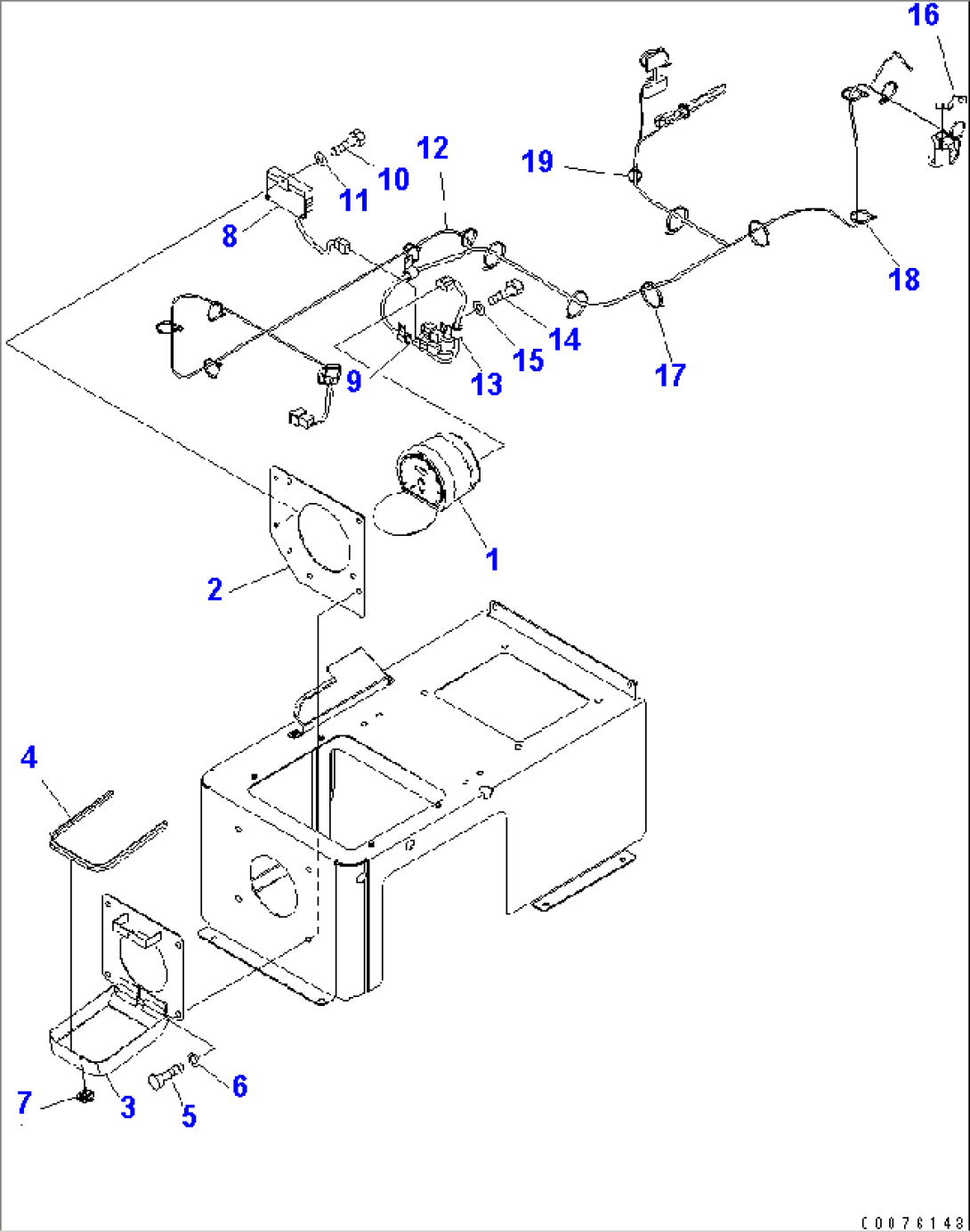

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-86-85110 | TACHOGRAPH | 3001- | |
| 2 | 561-86-85220 | BRACKET | 3001- | |
| 3 | 561-86-85210 | COVER | 3001- | |
| 4 | 566-86-86140 | FINISHER | 3001- | |
| 5 | 01010-81025 | BOLT | 3001- | |
| 6 | 01643-31032 | WASHER | 3001- | |
| 7 | 561-06-86280 | SCREW | 3001- | |
| 8 | 569-86-85120 | CONVERTER | 3001- | |
| 9 | 8255-06-1960 | CONNECTOR | 3001- | |
| 10 | 01010-80612 | BOLT | 3001- | |
| 11 | 01643-30623 | WASHER | 3001- | |
| 12 | 561-86-85310 | WIRING HARNESS | 3001- | |
| 13 | 04434-51510 | CLIP | 3001- | |
| 14 | 01010-81016 | BOLT | 3001- | |
| 15 | 01643-31032 | WASHER | 3001- | |
| 16 | 08053-01510 | CLIP | 3001- | |
| 17 | 08034-20823 | BAND | 3001- | |
| 18 | 08034-20519 | BAND | 3001- | |
| 19 | 08034-20414 | BAND | 3001- |
