| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7826-12-2302 | CONTROLLER | A10001- | |
| 2 | 01010-80825 | BOLT | A10001- | |
| 3 | 01643-30823 | WASHER | A10001- | |
| 4 | 569-97-82261 | WIRING HARNESS | A10001- | |
| 5 | 04434-51008 | CLIP | A10001- | |
| 6 | 08053-01510 | CLIP | A10001- | |
| 7 | 561-97-62250 | CABLE | A10001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n a10001 up
- Operator's compartment and control system
- Floor (vhms) (orbcom part)
Поиск по каталогу

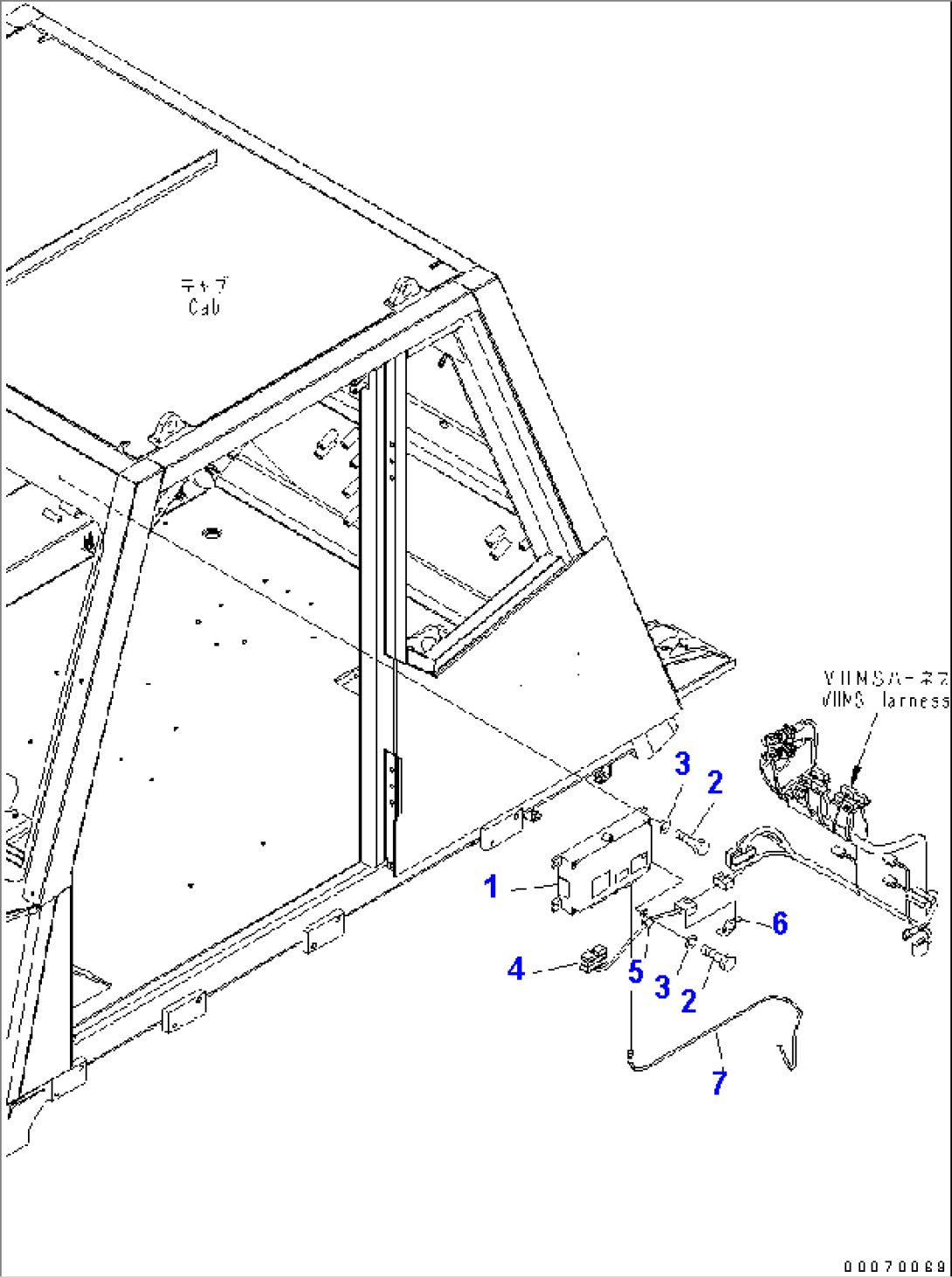

FLOOR (VHMS) (ORBCOM PART)
