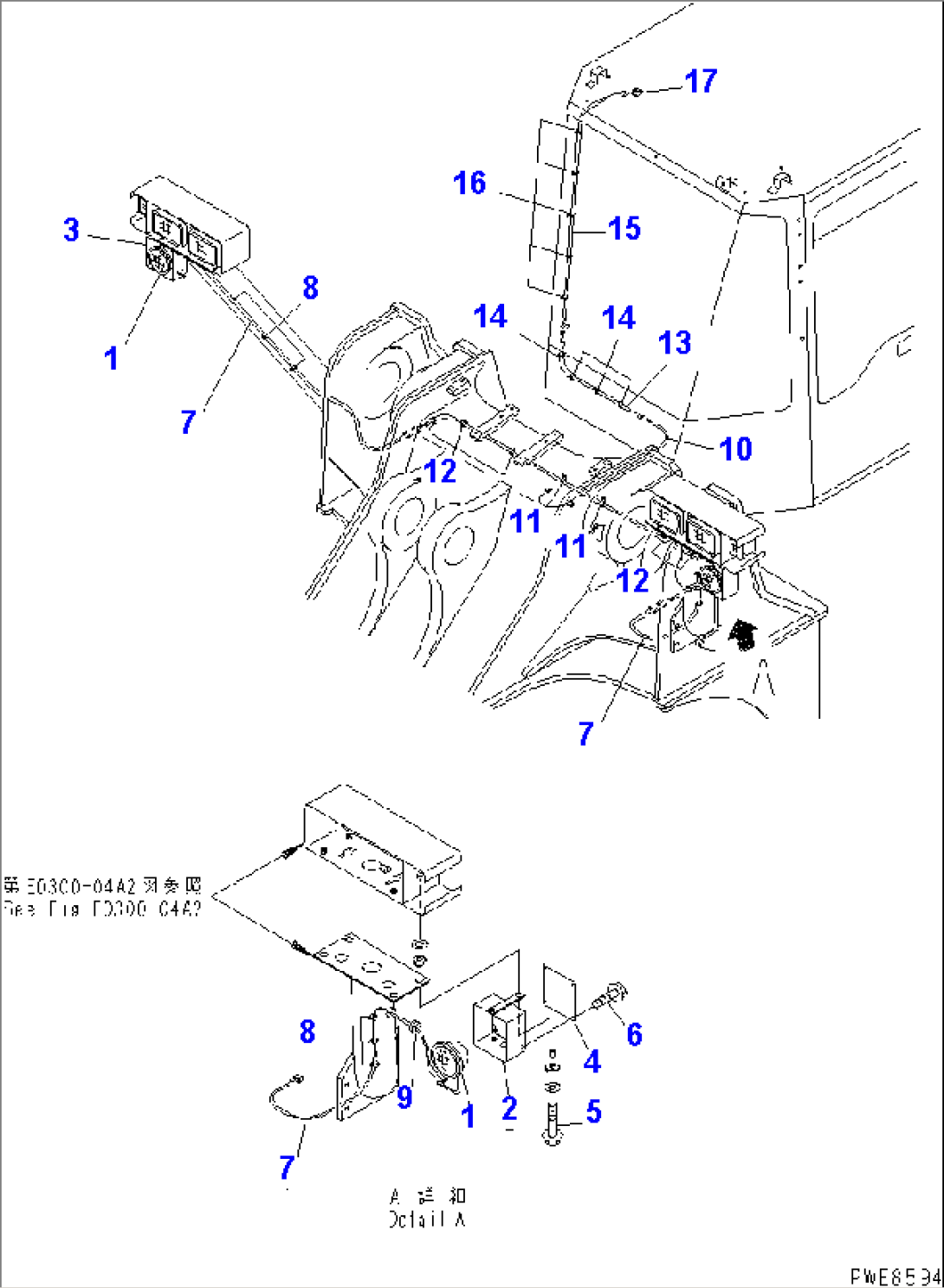

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08125-02410 | LAMP ASS'Y | 50001- | |
| 08125-00006 | LENS | 50001- | ||
| 2 | 427-Z23-2110 | BRACKET,L.H. | 50001- | |
| 3 | 427-Z23-2120 | BRACKET,R.H. | 50001- | |
| 4 | 427-Z23-2190 | PLATE | 50001- | |
| 5 | 01435-01260 | BOLT | 50001- | |
| 6 | 01435-00612 | BOLT | 50001- | |
| 7 | 427-Z23-2130 | WIRING HARNESS | 50001- | |
| 8 | 08034-20834 | BAND | 50001- | |
| 9 | 08037-02512 | GROMMET | 50001- | |
| 10 | 427-Z23-2140 | WIRING HARNESS | 50001- | |
| 11 | 04434-51010 | CLIP | 50001- | |
| 12 | 08034-20834 | BAND | 50001- | |
| 13 | 427-Z23-2150 | WIRING HARNESS | 50001- | |
| 14 | 08034-20834 | BAND | 50001- | |
| 15 | 427-Z23-2160 | WIRING HARNESS | 50001- | |
| 16 | 08034-20834 | BAND | 50001- | |
| 17 | 423-Z23-2230 | SWITCH,FOG LAMP | 50001- |
