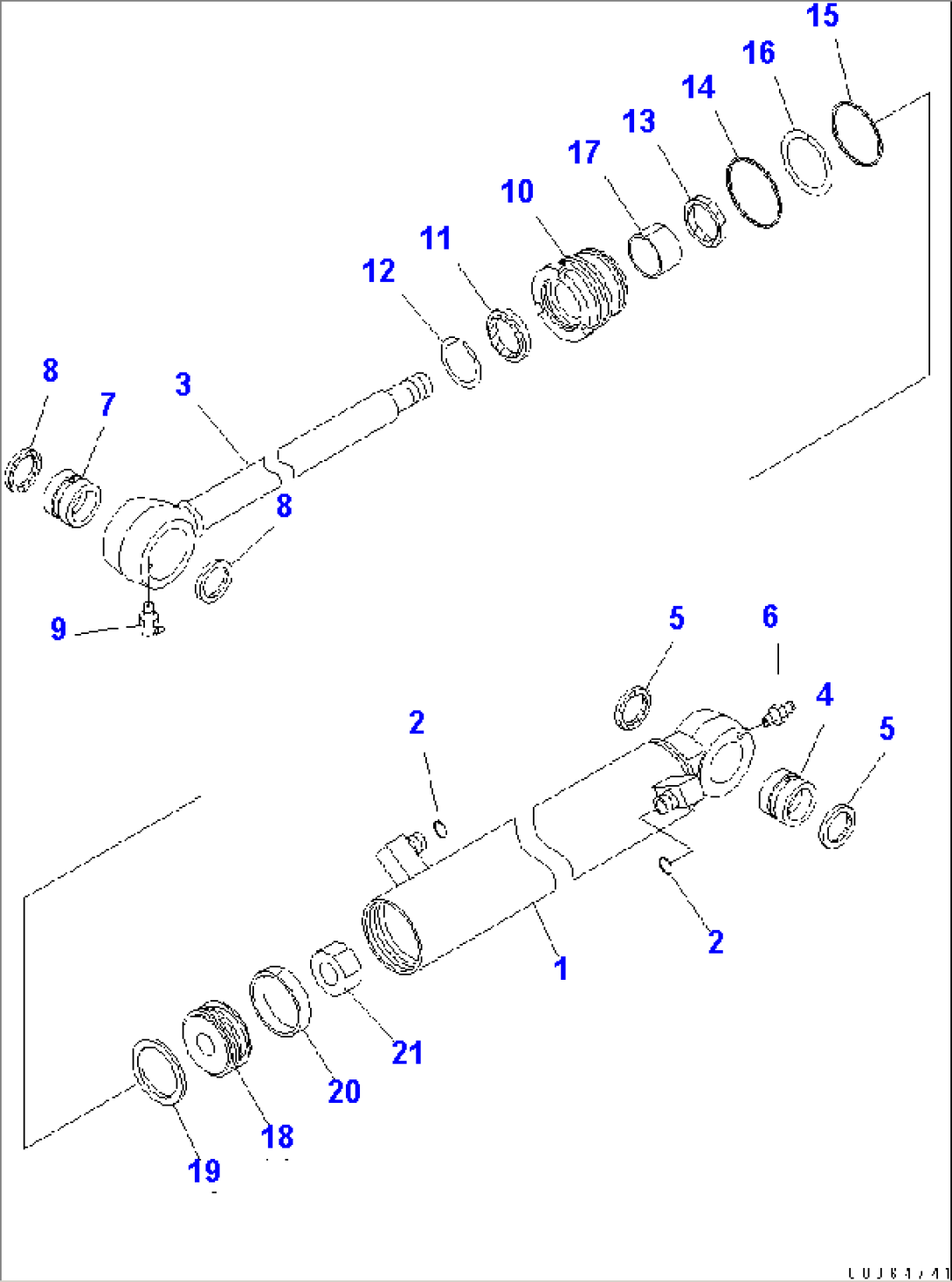

| Item | Part No. | Part Name | Qty | Serial No. |
| (\8\707-00-0X870) | CYLINDER ASS'Y,(FINAL COATING) | 1001- | ||
| 707-00-0H140 | CYLINDER ASS'Y | 1001- | ||
| 1 | 721-11-50640 | CYLINDER | 1001- | |
| 2 | 02896-11008 | O-RING (KIT) | 1001- | |
| 3 | 707-58-25890 | ROD,PISTON | 1001- | |
| 4 | 707-76-25010 | BUSHING | 1001- | |
| 5 | 07145-00025 | SEAL,DUST (KIT) | 1001- | |
| 6 | 07020-00000 | FITTING | 1001- | |
| 7 | 707-76-25010 | BUSHING | 1001- | |
| 8 | 07145-00025 | SEAL,DUST (KIT) | 1001- | |
| 9 | 07020-00675 | FITTING,GREASE | 1001- | |
| 10 | 707-29-50701 | HEAD,CYLINDER | 1001- | |
| 11 | 707-56-25510 | SEAL,DUST (KIT) | 1001- | |
| 12 | 07179-12037 | RING,SNAP | 1001- | |
| 13 | 707-51-25210 | PACKING,ROD (KIT) | 1001- | |
| 14 | 07000-13048 | O-RING (KIT) | 1001- | |
| 15 | 07000-13045 | O-RING (KIT) | 1001- | |
| 16 | 707-35-52510 | RING,BACK-UP (KIT) | 1001- | |
| 17 | 07177-02525 | BUSHING | 1001- | |
| 18 | 707-36-50610 | PISTON | 1001- | |
| 19 | 707-44-50060 | RING,PISTON (KIT) | 1001- | |
| 20 | 10E-63-32390 | RING,WEAR (KIT) | 1001- | |
| 21 | 707-67-18040 | NUT | 1001- | |
| KIT | 707-98-03600 | SERVICE KIT | 1001- |
