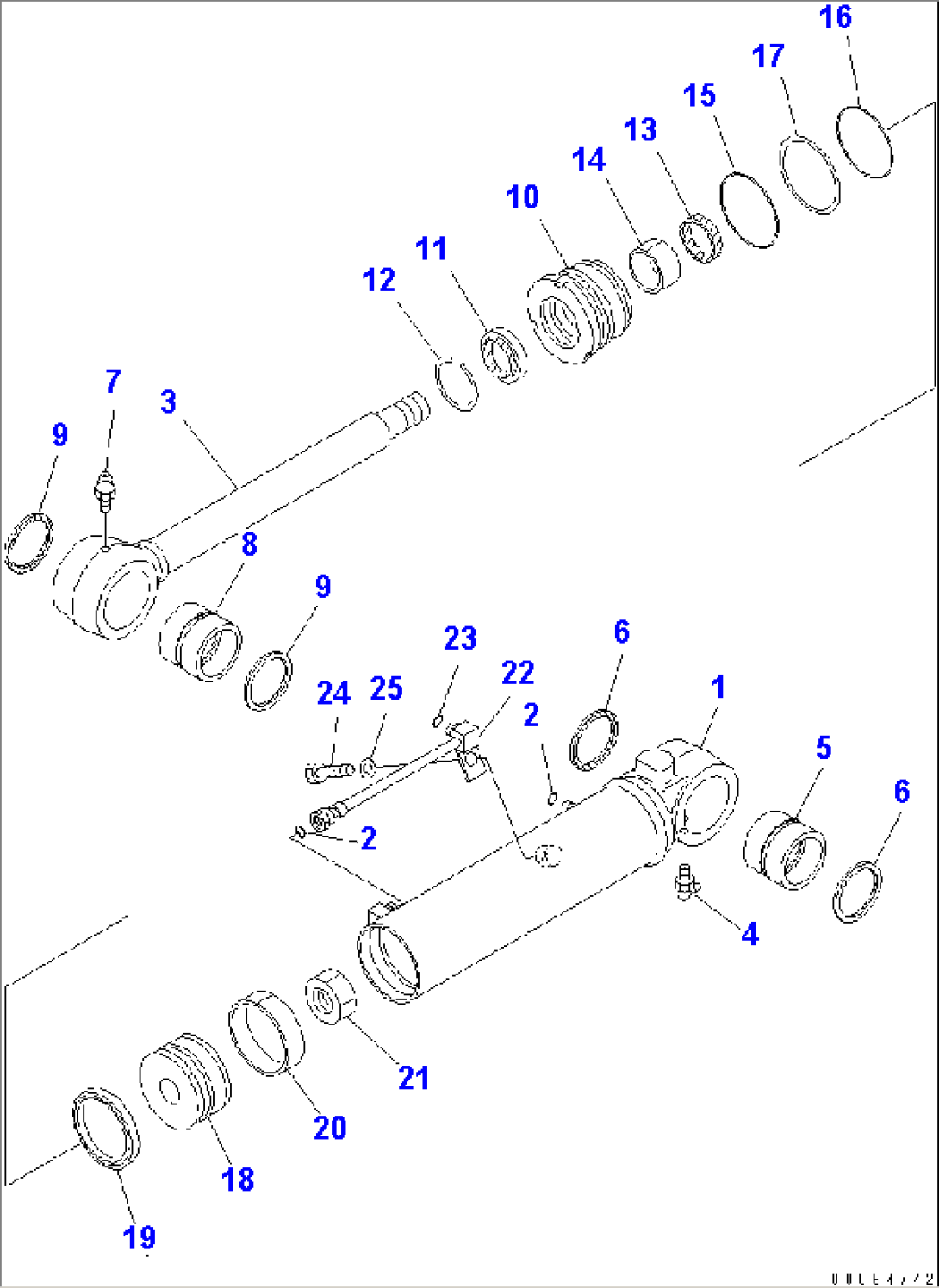

| Item | Part No. | Part Name | Qty | Serial No. |
| G | (\8\707-00-XX890) | CYLINDER GROUP,(FINAL COATING) | 1001- | |
| ==================== | ||||
| 707-00-0H160 | CYLINDER ASS'Y | 1001- | ||
| 1 | 707-11-80H70 | CYLINDER | 1001- | |
| 2 | 02896-11008 | O-RING (KIT) | 1001- | |
| 3 | 707-58-40H10 | ROD,PISTON | 1001- | |
| 4 | 07020-00675 | FITTING,GREASE | 1001- | |
| 5 | 07144-10506 | BUSHING | 1001- | |
| 6 | 07145-00055 | SEAL (KIT) | 1001- | |
| 7 | 07020-00000 | FITTING,GREASE | 1001- | |
| 8 | 07144-10506 | BUSHING | 1001- | |
| 9 | 07145-00055 | SEAL (KIT) | 1001- | |
| 10 | 707-29-80820 | HEAD,CYLINDER | 1001- | |
| 11 | 198-63-75190 | SEAL,DUST (KIT) | 1001- | |
| 12 | 07179-12052 | RING,SNAP | 1001- | |
| 13 | 707-51-40210 | PACKING,ROD (KIT) | 1001- | |
| 14 | 07177-04025 | BUSHING | 1001- | |
| 15 | 07000-12080 | O-RING (KIT) | 1001- | |
| 16 | 07000-12075 | O-RING (KIT) | 1001- | |
| 17 | 07146-02076 | RING,BACK-UP (KIT) | 1001- | |
| 18 | 707-36-80230 | PISTON | 1001- | |
| 19 | 707-44-80150 | RING,PISTON (KIT) | 1001- | |
| 20 | 07156-00810 | RING,WEAR (KIT) | 1001- | |
| 21 | 707-67-30030 | NUT | 1001- | |
| 22 | 707-86-22180 | TUBE | 1001- | |
| 23 | 02896-11008 | O-RING (KIT) | 1001- | |
| 24 | 01010-81020 | BOLT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-23240 | SERVICE KIT | 1001- |
