| Item | Part No. | Part Name | Qty | Serial No. |

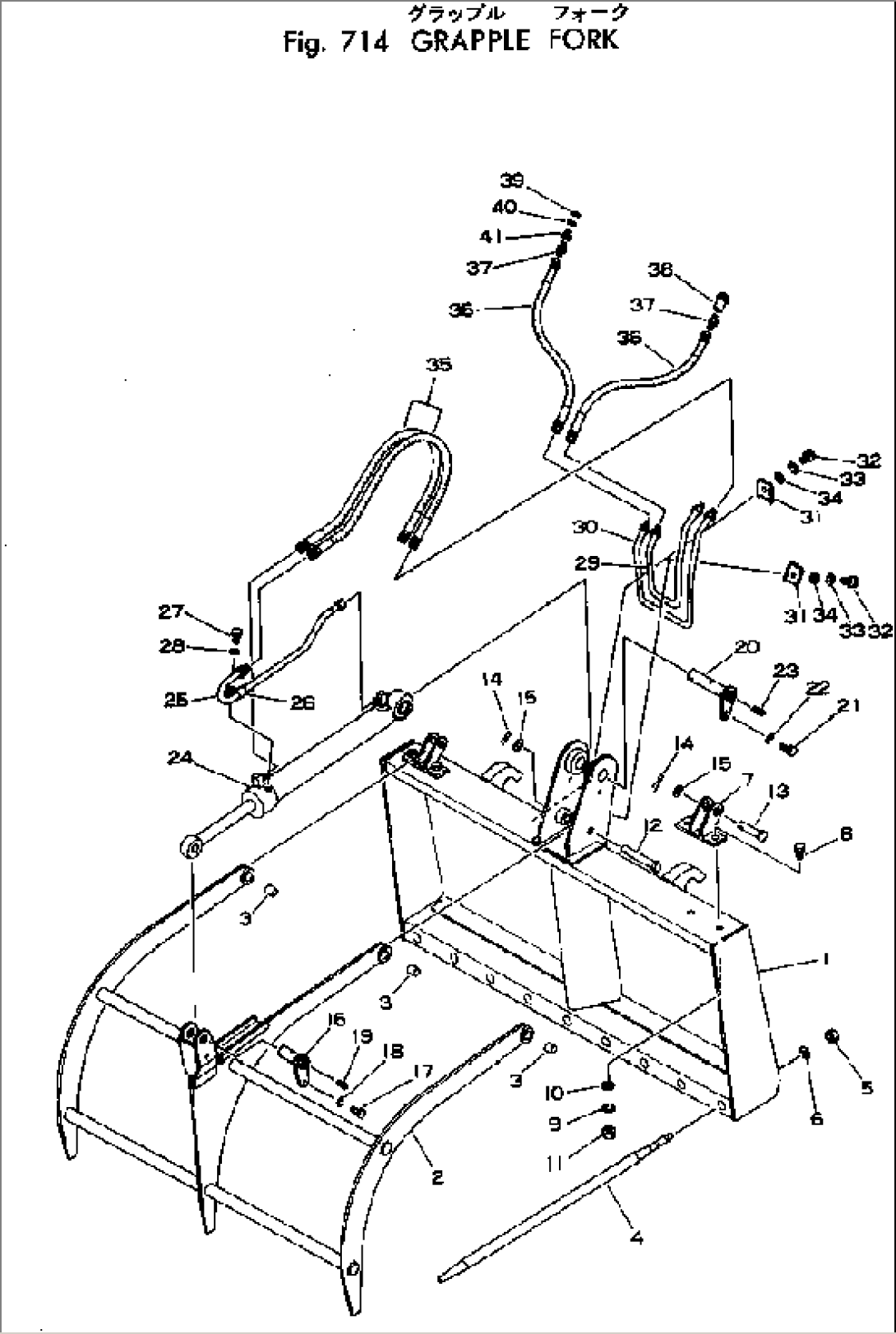

| FF7829-13100 | FORK ASS'Y | 1001- | ||
| 1 | FF7829-13110 | BODY | 1001- | |
| 2 | FF7829-13120 | ARM,GRAPPLE | 1001- | |
| 3 | WB8710-46220 | BUSHING | 1001- | |
| 4 | FF7829-13130 | FORK | 1001- | |
| 5 | 01580-12016 | NUT | 1001- | |
| 6 | 01602-22060 | WASHER,SPRING | 1001- | |
| 7 | FF7829-13140 | BRACKET | 1001- | |
| 8 | 01010-51230 | BOLT | 1001- | |
| 9 | 01602-21236 | WASHER,SPRING | 1001- | |
| 10 | 01640-21223 | WASHER | 1001- | |
| 11 | 01580-11210 | NUT | 1001- | |
| 12 | FF7829-13150 | PIN | 1001- | |
| 13 | 04205-11650 | PIN | 1001- | |
| 14 | 04050-14025 | PIN,COTTER | 1001- | |
| 15 | 01641-21626 | WASHER | 1001- | |
| 16 | FF7820-70310 | PIN | 1001- | |
| 17 | 01010-50816 | BOLT | 1001- | |
| 18 | 01602-20825 | WASHER,SPRING | 1001- | |
| 19 | 07020-00000 | FITTING,GREASE | 1001- | |
| 20 | FF7820-70320 | PIN | 1001- | |
| 21 | 01010-50816 | BOLT | 1001- | |
| 22 | 01602-20825 | WASHER,SPRING | 1001- | |
| 23 | 07020-00000 | FITTING,GREASE | 1001- | |
| 24 | (707-00-50140) | CYLINDER ASS'Y,(SEE FIG.613) | 1001- | |
| 25 | FF7829-13160 | PIPE | 1001- | |
| 26 | 101-854-8442 | CLAMP | 1001- | |
| 27 | 01010-50816 | BOLT | 1001- | |
| 28 | 01602-20825 | WASHER,SPRING | 1001- | |
| 29 | FF7829-13170 | PIPE | 1001- | |
| 30 | FF7829-13180 | PIPE | 1001- | |
| 31 | WB8710-87550 | CLAMP | 1001- | |
| 32 | 01010-50616 | BOLT | 1001- | |
| 33 | 01602-20619 | WASHER,SPRING | 1001- | |
| 34 | 01640-20610 | WASHER | 1001- | |
| 35 | 07113-00206 | HOSE | 1001- | |
| 36 | 07113-00210 | HOSE | 1001- | |
| 37 | FF7820-91610 | NIPPLE | 1001- | |
| FF7810-91600 | COUPLING ASS'Y | 1001- | ||
| FF7810-91610 | COUPLING | 1001- | ||
| 38 | \6\ | BODY | 1001- | |
| 39 | FF7810-91630 | O-RING | 1001- | |
| 40 | FF7810-91640 | RING | 1001- | |
| 41 | FF7810-91620 | COUPLING | 1001- |
