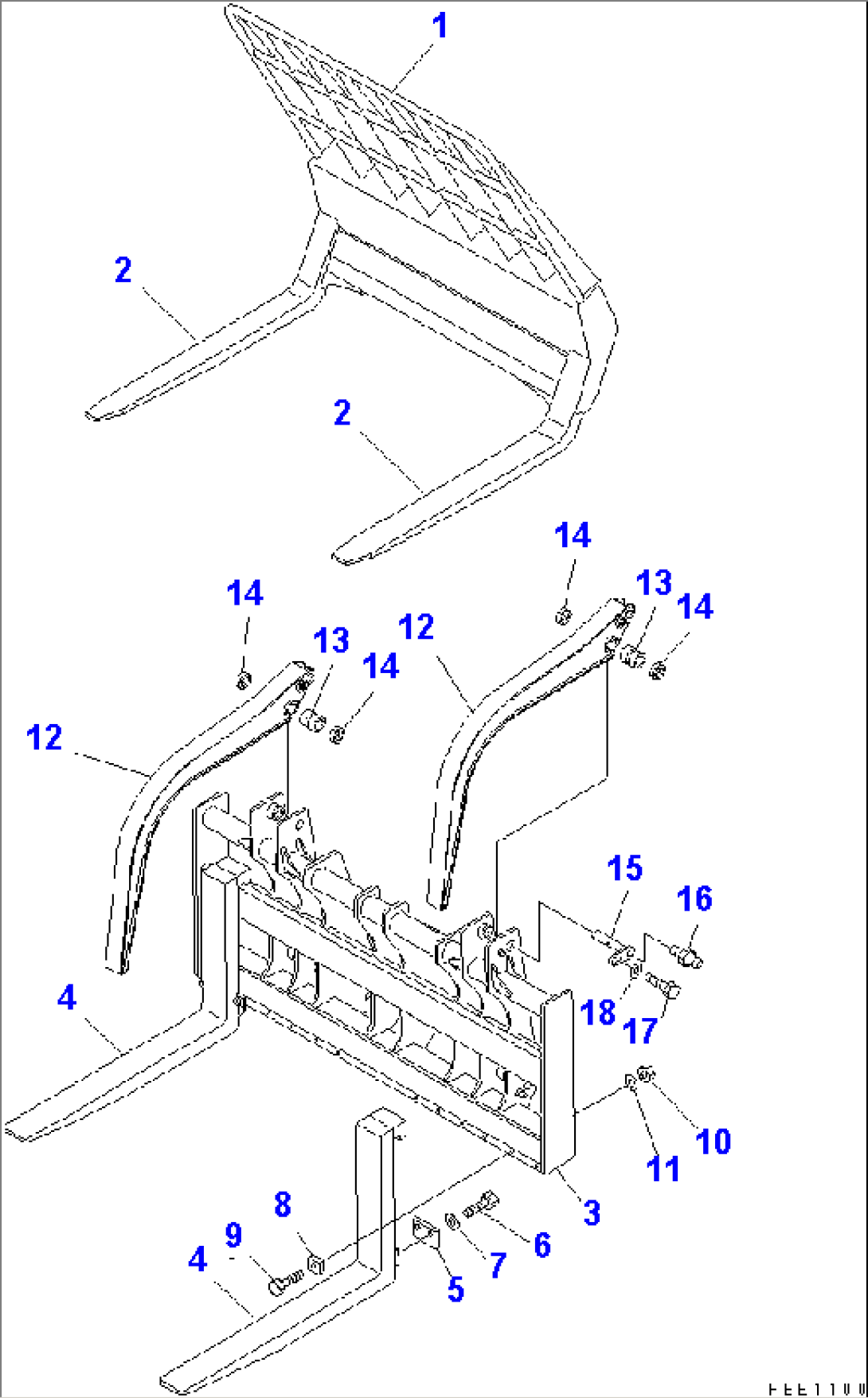

| Item | Part No. | Part Name | Qty | Serial No. |
| DUMPING FORK | ||||
| 1 | 418-883-1101 | FORK ASS'Y,DUMPING | 60001- | |
| 2 | 416-883-1120 | FORK (WELDED) | 60001- | |
| LUMBER FORK | ||||
| 3 | 418-884-1111 | CARRIER | 60001- | |
| 4 | 418-884-1120 | FORK | 60001- | |
| 5 | 418-884-1130 | PLATE | 60001- | |
| 6 | 01010-62045 | BOLT | 60001- | |
| 7 | 01643-32060 | WASHER | 60001- | |
| 8 | 417-884-1140 | PLATE | 60001- | |
| 9 | 01010-61255 | BOLT | 60001- | |
| 10 | 01580-01210 | NUT | 60001- | |
| 11 | 01643-31232 | WASHER | 60001- | |
| LUMBER FORK{(FOR LOG LUMBER FORK GRAPPLE)} | ||||
| 418-881-0010 | ARM ASS'Y | 60001- | ||
| 12 | \6\ | ARM | 60001- | |
| 13 | 416-70-11810 | BUSHING | 60001- | |
| 14 | 416-09-11140 | SEAL,DUST | 60001- | |
| 15 | 417-881-1220 | PIN | 60001- | |
| 16 | 07020-00000 | FITTING,GREASE | 60001- | |
| 17 | 01010-61220 | BOLT | 60001- | |
| 18 | 175-54-34170 | WASHER | 60001- |
