| Item | Part No. | Part Name | Qty | Serial No. |
| (41E-15-00010) | TRANSMISSION ASS'Y | 10001- | ||

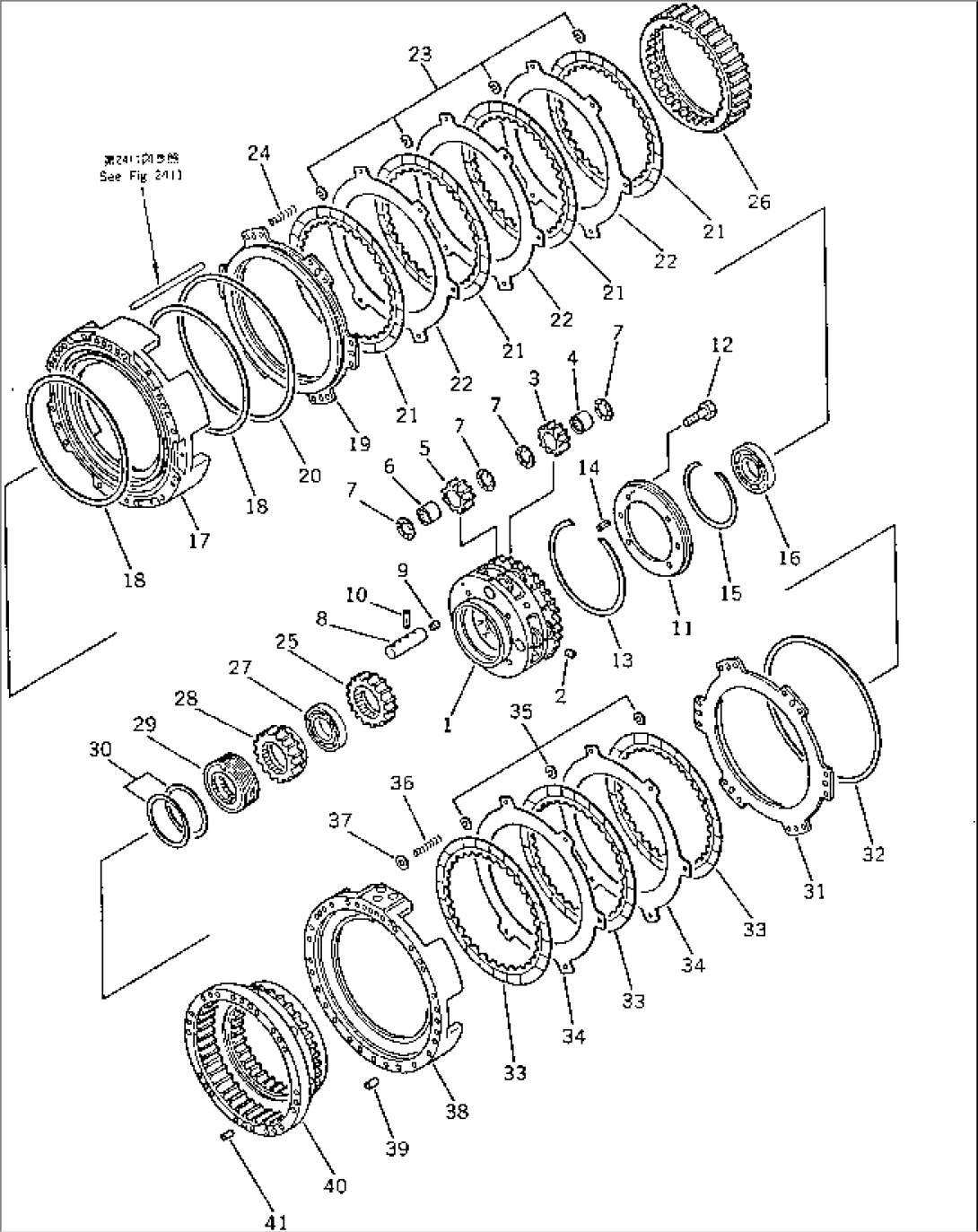

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| 41E-15-00131 | CARRIER ASS'Y | 10001- | ||
| 1 | \6\ | CARRIER | 10001- | |
| 2 | 145-14-11320 | PLUG | 10001- | |
| 3 | 426-15-12420 | GEAR | 10001- | |
| 4 | 426-15-19410 | BEARING | 10001- | |
| 5 | 41E-15-12420 | GEAR | 10001- | |
| 6 | 41E-15-19410 | BEARING | 10001- | |
| 7 | 561-15-32590 | WASHER,THRUST | 10001- | |
| 41E-15-00140 | SHAFT ASS'Y | 10001- | ||
| 8 | \6\ | SHAFT | 10001- | |
| 9 | 07043-50108 | PLUG | 10001- | |
| 10 | 04025-00620 | PIN,SPRING | 10001- | |
| 11 | 426-15-12890 | COVER | 10001- | |
| 12 | 01010-51245 | BOLT | 10001- | |
| 13 | 154-15-12670 | RING,SNAP | 10001- | |
| 14 | 04025-00620 | PIN,SPRING | 10001- | |
| 15 | 04070-00170 | RING,SNAP | 10001- | |
| 16 | 06000-06918 | BEARING | 10001- | |
| 17 | 41E-15-11170 | HOUSING | 10001- | |
| 18 | 426-15-19210 | RING,SEAL (KIT) | 10001- | |
| 19 | 426-15-12740 | PISTON | 10001- | |
| 20 | 175-15-59250 | RING,SEAL (KIT) | 10001- | |
| 21 | 198-15-22810 | DISC | 10001- | |
| 22 | 426-15-12720 | PLATE | 10001- | |
| 23 | 175-15-42880 | SPRING | 10001- | |
| 24 | 425-15-12920 | SPRING, (L= 68.0) | 10001- | |
| 25 | 41E-15-12221 | GEAR | 10001- | |
| 26 | 41E-15-12641 | GEAR,RING | 10001- | |
| 27 | 06000-06014 | BEARING | 10001- | |
| 28 | 426-15-12230 | GEAR | 10001- | |
| 29 | 426-15-12850 | COLLAR | 10001- | |
| 30 | 07018-11455 | RING,SEAL | 10001- | |
| 31 | 426-15-12750 | PISTON | 10001- | |
| 32 | 426-15-19220 | RING,SEAL (KIT) | 10001- | |
| 33 | 198-15-22810 | DISC | 10001- | |
| 34 | 426-15-12720 | PLATE | 10001- | |
| 35 | 175-15-42880 | SPRING | 10001- | |
| 36 | 234-15-15230 | SPRING, (L= 52.0) | 10001- | |
| 37 | 426-15-12840 | WASHER | 10001- | |
| 38 | 426-15-11160 | HOUSING | 10001- | |
| 39 | 569-15-41310 | SLEEVE | 10001- | |
| 40 | 426-15-12630 | GEAR,RING | 10001- | |
| 41 | 04020-01434 | PIN,DOWEL | 10001- |
