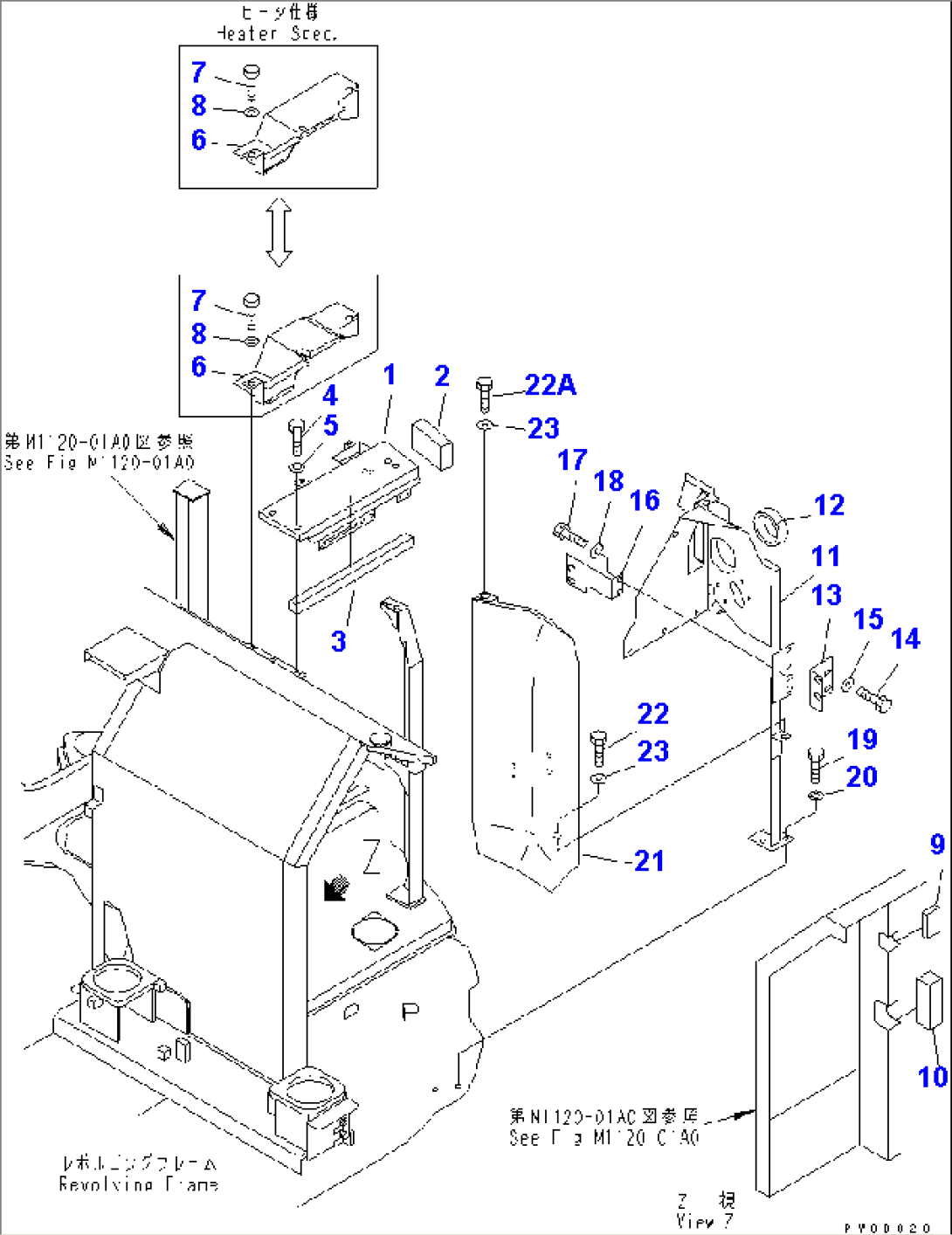

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-54-11371NU | FRAME (BLUE) | 7109-7300 | |
| 2 | 22B-54-12390 | SHEET | 7109-7300 | |
| 3 | 22B-54-11382 | SHEET | 7109-@ | |
| 4 | 01010-71245 | BOLT | 7109-@ | |
| 5 | 01643-11232 | WASHER | 7109-@ | |
| 6 | 22B-54-11361NU | COVER | 7109-7300 | |
| 7 | 01010-81225 | BOLT | 7109-7300 | |
| 8 | 01643-31232 | WASHER | 7109-7300 | |
| 9 | 22B-54-12440 | SHEET | 7109-@ | |
| 10 | 22B-54-12670 | SHEET | 7109-@ | |
| 22B-54-12551 | FRAME | 7109-7300 | ||
| 11 | 22B-54-11411 | FRAME | 7109-7300 | |
| 12 | 22B-54-12561 | SHEET | 7109-@ | |
| 13 | 22B-54-11451 | BRACKET | 7109-@ | |
| 14 | 01010-81225 | BOLT | 7109-@ | |
| 15 | 124-54-26540 | WASHER | 7109-@ | |
| 16 | 22B-54-11461 | BRACKET | 7109-@ | |
| 17 | 01010-81225 | BOLT | 7109-@ | |
| 18 | 124-54-26540 | WASHER | 7109-@ | |
| 19 | 01010-81225 | BOLT | 7109-@ | |
| 20 | 01643-31232 | WASHER | 7109-@ | |
| 21 | 22B-54-11422NU | COVER (BLUE) | 7109-7300 | |
| 22 | 01010-81225 | BOLT,(FOR ATTACHMENT) | 7109-@ | |
| 22A | 01010-81240 | BOLT,(FOR ATTACHMENT) | 7109-@ | |
| 23 | 124-54-26540 | WASHER | 7109-@ |
