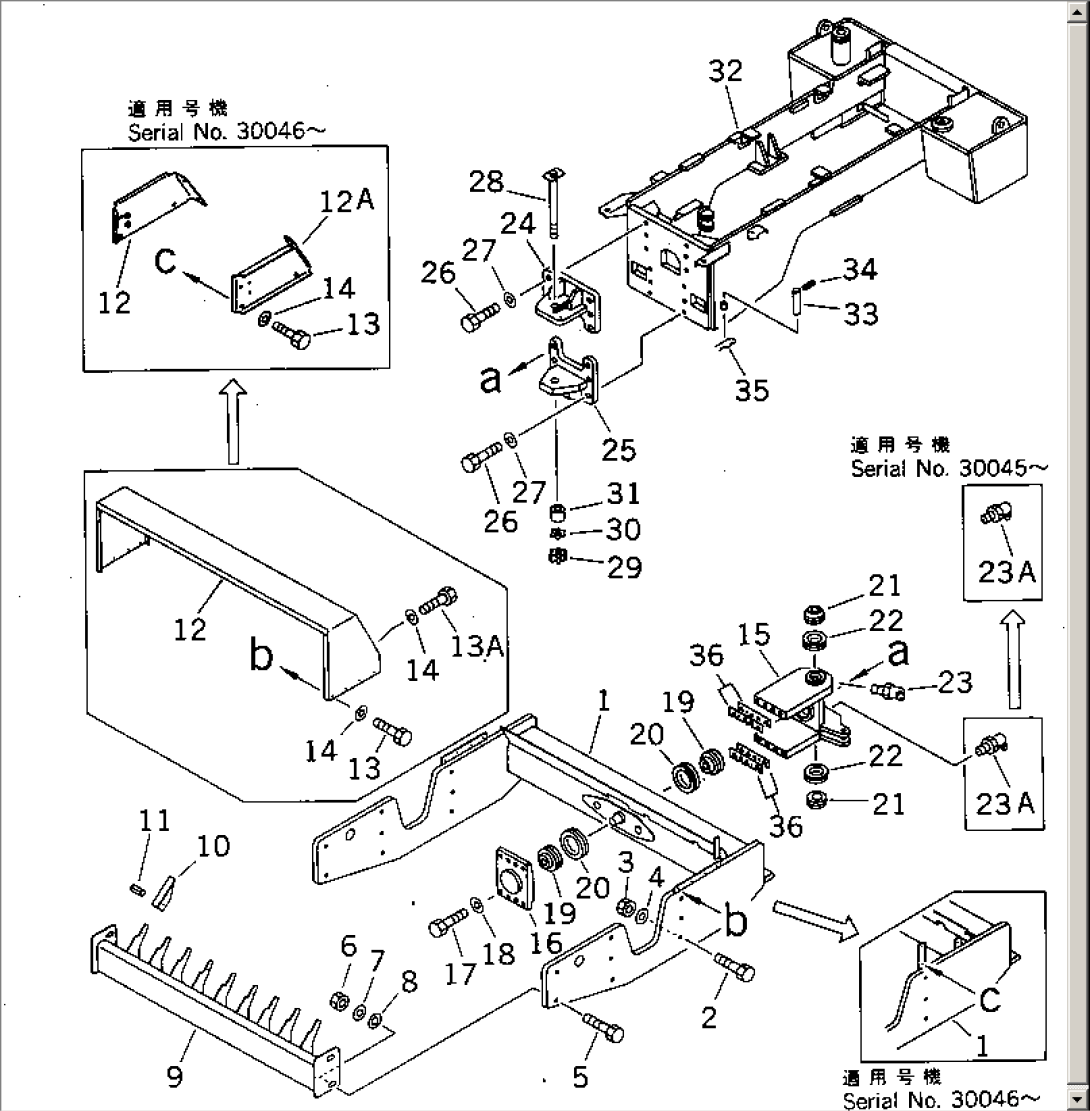

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-46-21111 | FRAME,FRONT | 30046- | |
| 273-46-21110 | FRAME,FRONT | 30003-30045 | ||
| 2 | 01010-52495 | BOLT | 30003- | |
| 3 | 01580-12419 | NUT | 30003- | |
| 4 | 01643-52460 | WASHER | 30003- | |
| 5 | 01010-52495 | BOLT | 30009- | |
| 01010-52490 | BOLT | 30003-30008 | ||
| 6 | 01580-12419 | NUT | 30003- | |
| 7 | 01643-32460 | WASHER | 30003- | |
| 8 | 01643-32460 | WASHER | 30003- | |
| 9 | 273-46-31110 | SCRAPER | 30003- | |
| 10 | 273-46-31120 | TOOTH | 30003- | |
| 11 | 04025-01250 | PIN,SPRING | 30003- | |
| 12 | 273-46-21250 | COVER,R.H. | 30046- | |
| 273-46-31130 | COVER | 30003-30045 | ||
| 12A | 273-46-21260 | COVER,L.H. | 30046- | |
| 13 | 01010-51020 | BOLT | 30046- | |
| 01010-51025 | BOLT | 30003-30045 | ||
| 13A | 01010-51020 | BOLT | 30003- | |
| 14 | 234-54-13252 | WASHER | 30046- | |
| 01643-31032 | WASHER | 30003-30045 | ||
| 15 | 273-46-21121 | PLATE,GUIDE | 30039- | |
| 273-46-21120 | PLATE,GUIDE | 30003-30038 | ||
| 16 | 273-46-21132 | COVER | 30039- | |
| 273-46-21131 | COVER | 30009-30038 | ||
| 273-46-21130 | COVER | 30003-30037 | ||
| 17 | 01010-52475 | BOLT | 30003- | |
| 18 | 01643-32460 | WASHER | 30003- | |
| 19 | 569-63-22880 | BUSHING | 30003- | |
| 20 | 273-46-11230 | RING,SNAP | 30003- | |
| 21 | 569-63-22880 | BUSHING | 30003- | |
| 22 | 273-46-11230 | RING,SNAP | 30003- | |
| 23 | 07020-00675 | FITTING,GREASE | 30003- | |
| 23A | 07020-00900 | FITTING,GREASE | 30045- | |
| 07020-00675 | FITTING,GREASE | 30003-30044 | ||
| 24 | 273-46-21140 | BRACKET | 30003- | |
| 25 | 273-46-21150 | BRACKET | 30003- | |
| 26 | 01010-52480 | BOLT | 30003- | |
| 27 | 01643-32460 | WASHER,SPRING | 30003- | |
| 28 | 273-46-21160 | PIN | 30003- | |
| 29 | 01530-07616 | NUT | 30003- | |
| 30 | 01658-27623 | WASHER,LOCK | 30003- | |
| 31 | 273-46-21170 | SPACER | 30003- | |
| 32 | 273-46-11502 | FRAME,REAR | 30046- | |
| 273-46-22100 | FRAME,REAR | 30003-30045 | ||
| 33 | 273-46-12211 | PIN | 30003- | |
| 34 | 04025-00650 | PIN,ROLL | 30003- | |
| 35 | 236-46-13450 | PIN | 30003- | |
| 273-46-00020 | SHIM ASS'Y | 30003- | ||
| 36 | \6\ | SHIM | 30003- |
