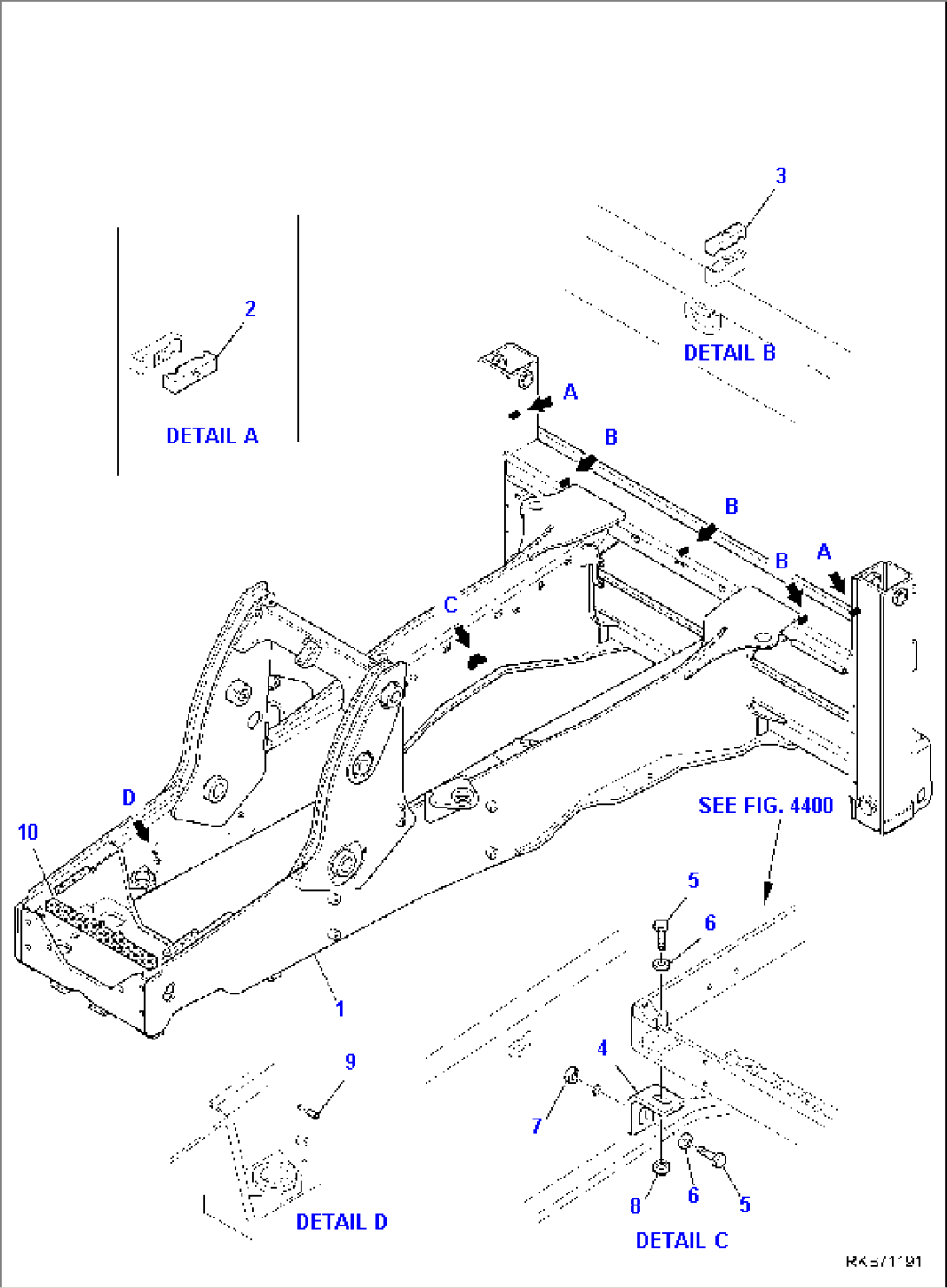

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-46-13102 | FRAME, ASSEMBLY | | F20466-F20822 |
| 1 | 42N-46-18100 | FRAME, ASSEMBLY | | F20823-F20898 |
| 1 | 42N-46-13104 | FRAME, ASSEMBLY | | F20899-F21197 |
| 1 | 42N-46-13105 | FRAME, ASSEMBLY | | F21198-F21476 |
| 1 | 42N-46-13106 | FRAME, ASSEMBLY | | F21477- |
| 1 | 42N-46-13902 | FRAME, HYDRAULIC SLIDING PLATE, ASSEMBLY | | F20466-F20822 |
| 1 | 42N-46-18400 | FRAME, HYDRAULIC SLIDING PLATE, ASSEMBLY | | F20823-F20898 |
| 1 | 42N-46-13904 | FRAME, HYDRAULIC SLIDING PLATE, ASSEMBLY | | F20899-F21197 |
| 1 | 42N-46-13905 | FRAME, HYDRAULIC SLIDING PLATE, ASSEMBLY | | F21198-F21499 |
| 1 | 42N-46-13906 | FRAME, HYDRAULIC SLIDING PLATE, ASSEMBLY | | F21500- |
| 2 | 42N-46-11N40 | CLAMP | | F20466- |
| 3 | 42N-46-11H70 | CLAMP | | F20466- |
| 4 | 42N-43-11620 | BENT | | F20466-F20822 |
| 4 | 42N-43-11621 | SUPPORT | | F20823-F20898 |
| 4 | 42N-43-11620 | BENT | | F20899- |
| 5 | 01010-81035 | BOLT | | F20466-F20822 |
| 5 | 01010-81040 | BOLT | | F20823- |
| 6 | 01643-11032 | WASHER | | F20466-F20822 |
| 6 | 01643-11032 | WASHER | | F20823- |
| 7 | 21D-09-24190 | NUT | | F20823- |
| 8 | 21D-09-24200 | NUT | | F20466- |
| 9 | 42N-46-11321 | NUT | | F20466- |
| 10 | 42N-03-11241 | GASKET | | F20466- |
| | SEE FIG. 4400 | | |
