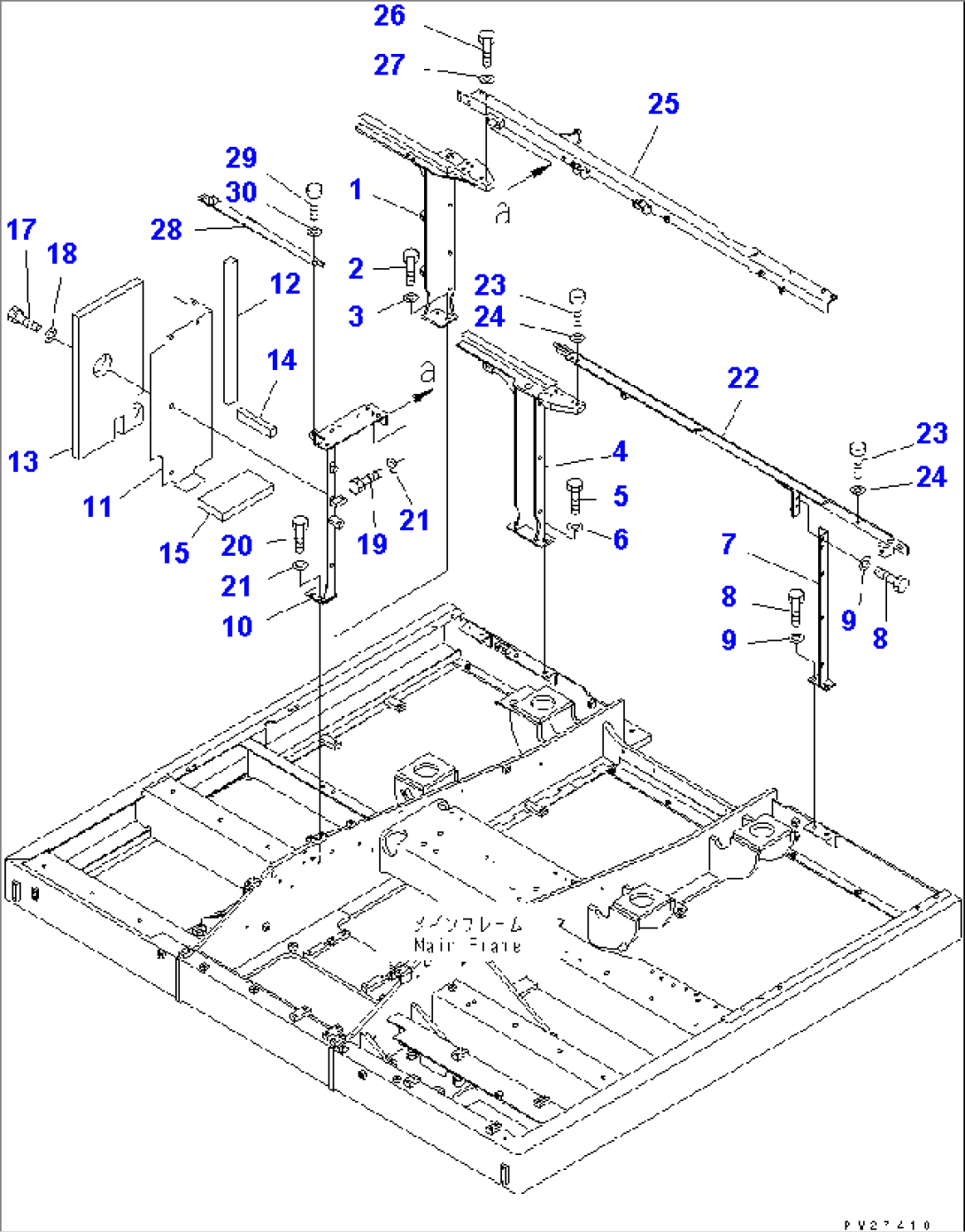

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8287-54-1451 | FRAME | 1101- | |
| 2 | 01010-81230 | BOLT | 1101- | |
| 3 | 01643-31232 | WASHER | 1101- | |
| 4 | 8287-54-1441 | FRAME | 1101- | |
| 5 | 01010-81230 | BOLT | 1101- | |
| 6 | 01643-31232 | WASHER | 1101- | |
| 7 | 207-54-61531 | FRAME | 1101- | |
| 8 | 01010-81230 | BOLT | 1101- | |
| 9 | 01643-31232 | WASHER | 1101- | |
| 10 | 8248-54-2130 | FRAME | 1101- | |
| 11 | 208-54-62411 | COVER | 1101- | |
| 12 | 208-54-62420 | SHEET | 1101- | |
| 13 | 208-54-62430 | SHEET | 1101- | |
| 14 | 208-54-62610 | SHEET | 1101- | |
| 15 | 208-54-62620 | SHEET | 1101- | |
| 17 | 01010-81230 | BOLT | 1101- | |
| 18 | 01643-31232 | WASHER | 1101- | |
| 19 | 01010-81230 | BOLT | 1101- | |
| 20 | 01010-81225 | BOLT | 1101- | |
| 21 | 01643-31232 | WASHER | 1101- | |
| 22 | 8287-54-1420 | FRAME | 1101- | |
| 23 | 01010-81230 | BOLT | 1101- | |
| 24 | 01643-31232 | WASHER | 1101- | |
| 25 | 8287-54-1431 | FRAME | 1101- | |
| 26 | 01010-81230 | BOLT | 1101- | |
| 27 | 01643-31232 | WASHER | 1101- | |
| 28 | 8287-54-2240 | STAY | 1101- | |
| 29 | 01010-81230 | BOLT | 1101- | |
| 30 | 01643-31232 | WASHER | 1101- |
