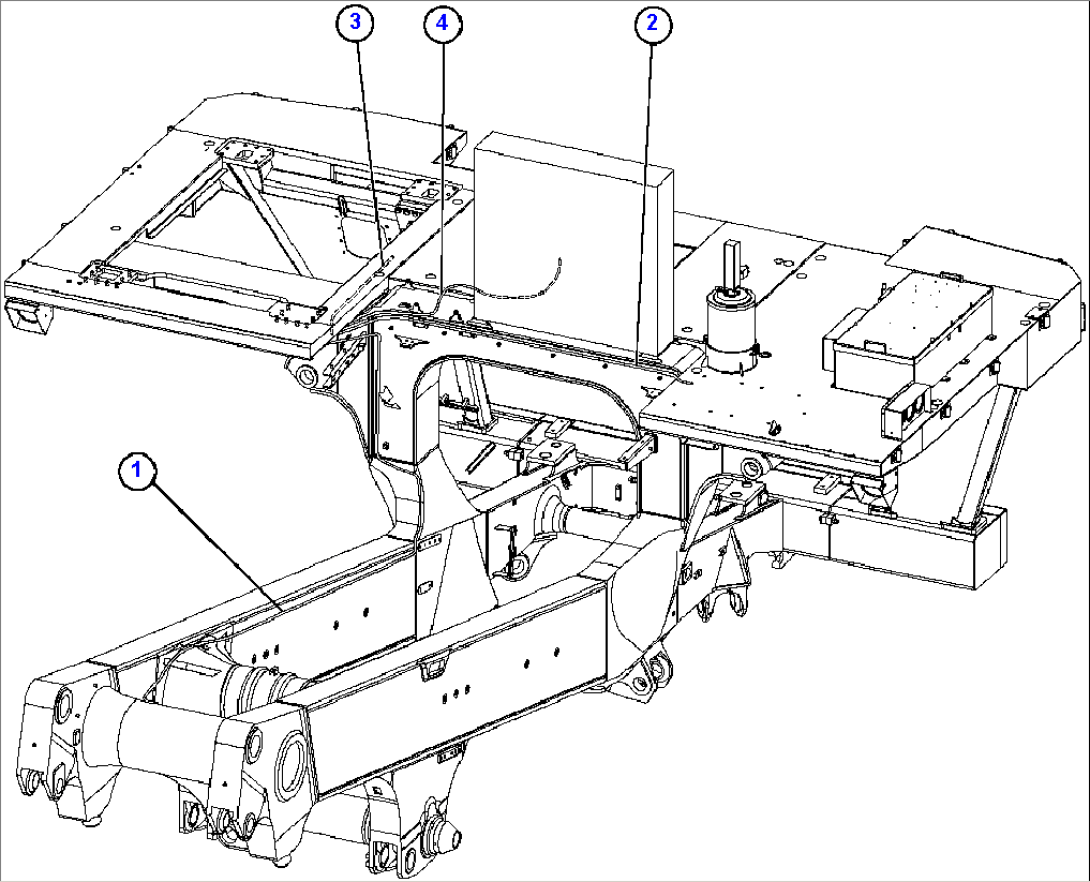

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH0922 | HARNESS, FRAME | ||
| 2 | EH5029 | HARNESS, R.H. DECK | ||
| 3 | EH5030 | HARNESS, L.H. DECK | ||
| 4 | EH5044 | HARNESS (CAB TO HYDRAULIC CABINET) | ||
| NS|5 | NOTE: NS = NOT SHOWN | |||
| NS|6 | 421-06-11970 | DIODE (INSIDE HYDRAULIC CABINET) |
- Главная
- Каталог запчастей
- Самосвалы
- Afp49 w 530m s/n a30036 a30038 (soloman)
- Electrical system
- Frame & deck wiring
Поиск по каталогу
FRAME & DECK WIRING
