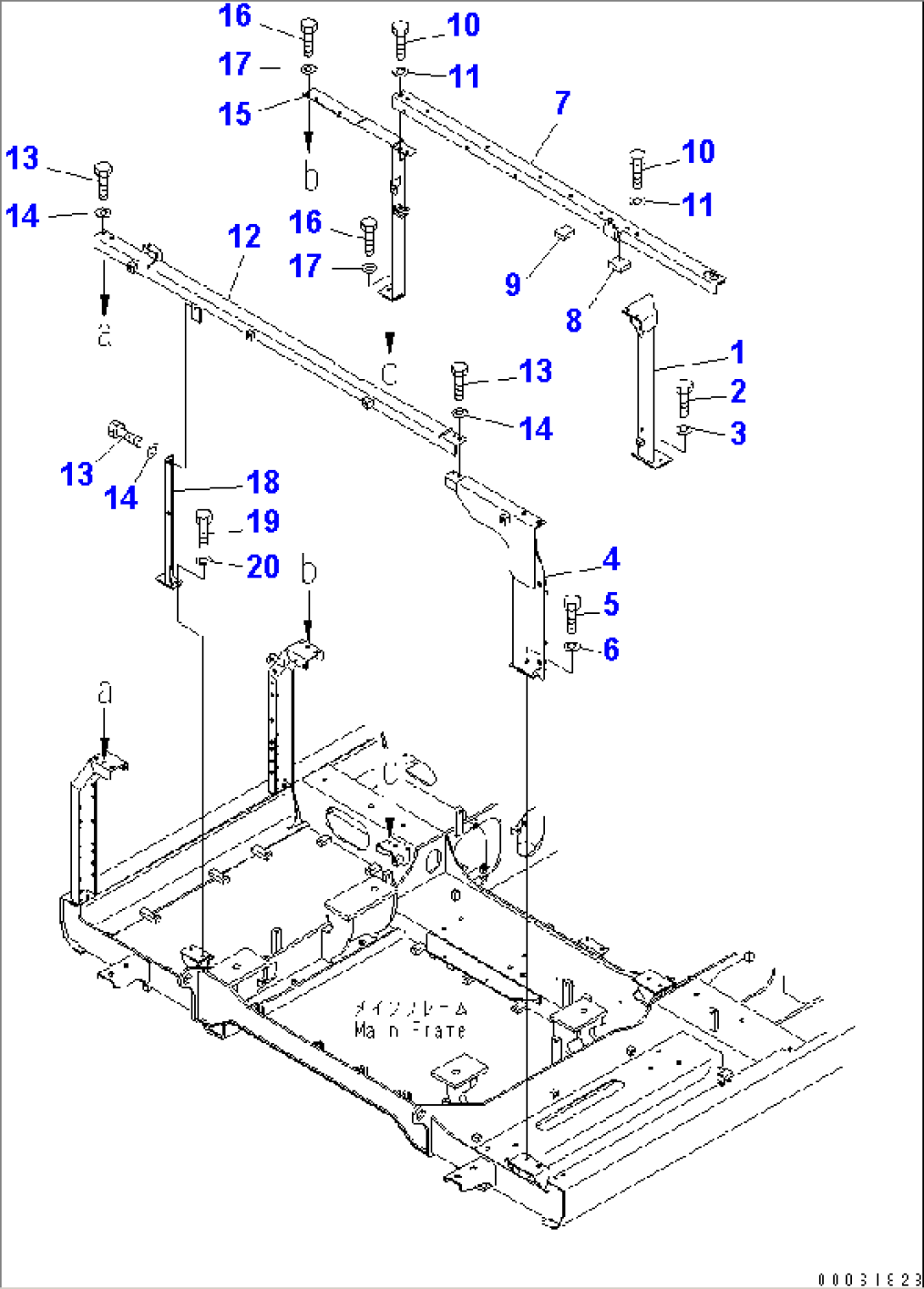

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-54-2231 | FRAME | 1001- | |
| 2 | 01010-81240 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 8234-54-1172 | FRAME | 1001- | |
| 5 | 01010-81230 | BOLT | 1001- | |
| 6 | 01643-31232 | WASHER | 1001- | |
| 7 | 8234-54-2221 | FRAME | 1001- | |
| 8 | 208-54-73510 | SHEET | 1001- | |
| 9 | 8234-54-2730 | SHEET | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 8234-54-1181 | FRAME | 1001- | |
| 13 | 01010-81230 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 8234-54-2241 | FRAME | 1003- | |
| 15 | \0\8234-54-2240 | FRAME | 1001-1002 | |
| 16 | 01010-81230 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 8234-54-1970 | FRAME | 1001- | |
| 19 | 01010-81230 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- |
