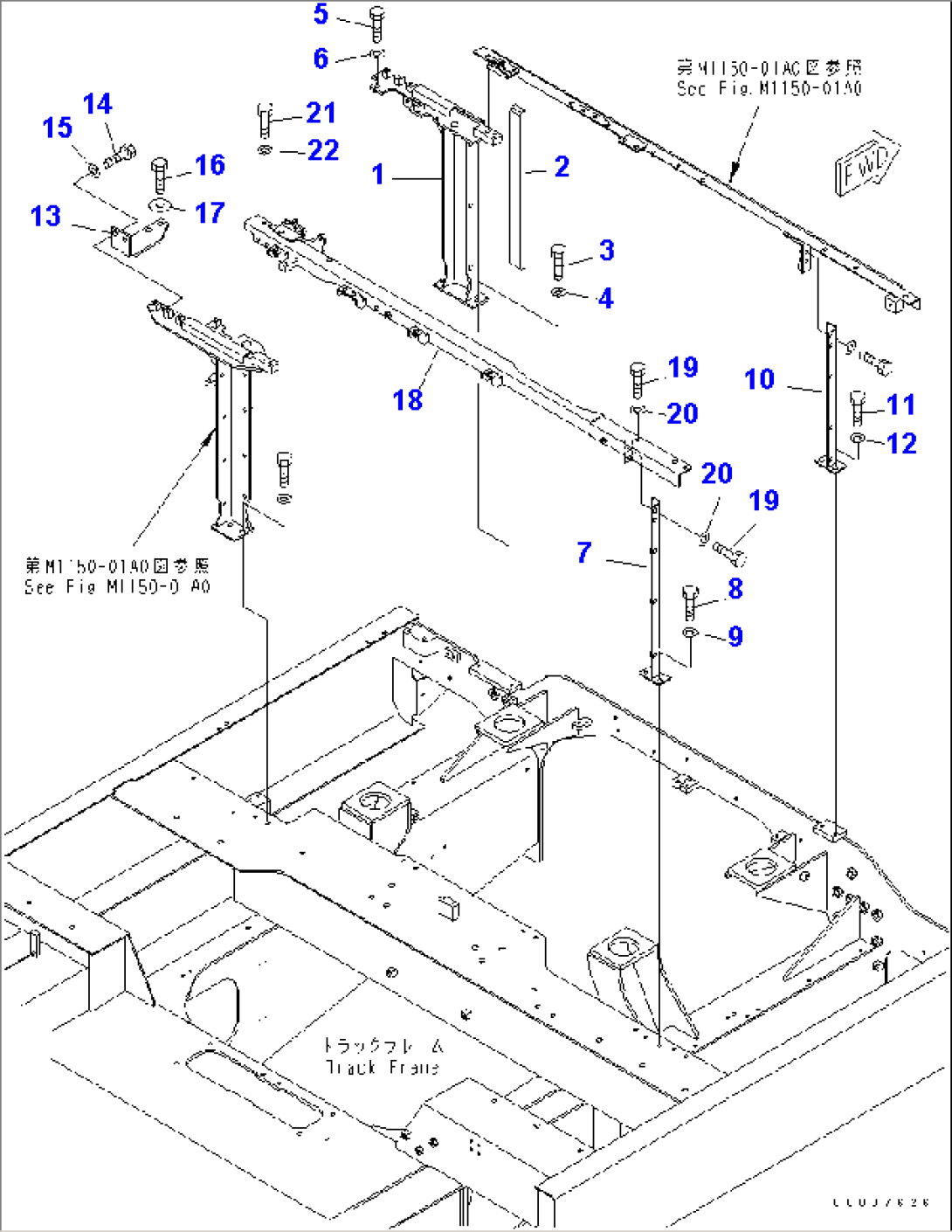

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-54-1221 | FRAME | 1001-@ | |
| 2 | 207-54-61590 | SHEET | 1001-@ | |
| 3 | 01010-81235 | BOLT | 1001-@ | |
| 4 | 01643-31232 | WASHER | 1001-@ | |
| 5 | 01010-81235 | BOLT | 1001-@ | |
| 6 | 01643-31232 | WASHER | 1001-@ | |
| 7 | 207-54-61531 | FRAME | 1001-@ | |
| 8 | 01010-81230 | BOLT | 1001-@ | |
| 9 | 01643-31232 | WASHER | 1001-@ | |
| 10 | 8295-54-1240 | FRAME | 1001-@ | |
| 11 | 01010-81230 | BOLT | 1001-@ | |
| 12 | 01643-31232 | WASHER | 1001-@ | |
| 13 | 208-54-61540 | BRACKET | 1001-@ | |
| 14 | 01010-81230 | BOLT | 1001-@ | |
| 15 | 01643-31232 | WASHER | 1001-@ | |
| 16 | 01010-81230 | BOLT | 1001-@ | |
| 17 | 175-54-34170 | WASHER | 1001-@ | |
| 18 | 8296-54-1670 | FRAME | 1001-1005 | |
| 19 | 01010-81230 | BOLT | 1001-@ | |
| 20 | 01643-31232 | WASHER | 1001-@ | |
| 21 | 01010-81230 | BOLT | 1001-@ | |
| 22 | 01643-31232 | WASHER | 1001-@ |
