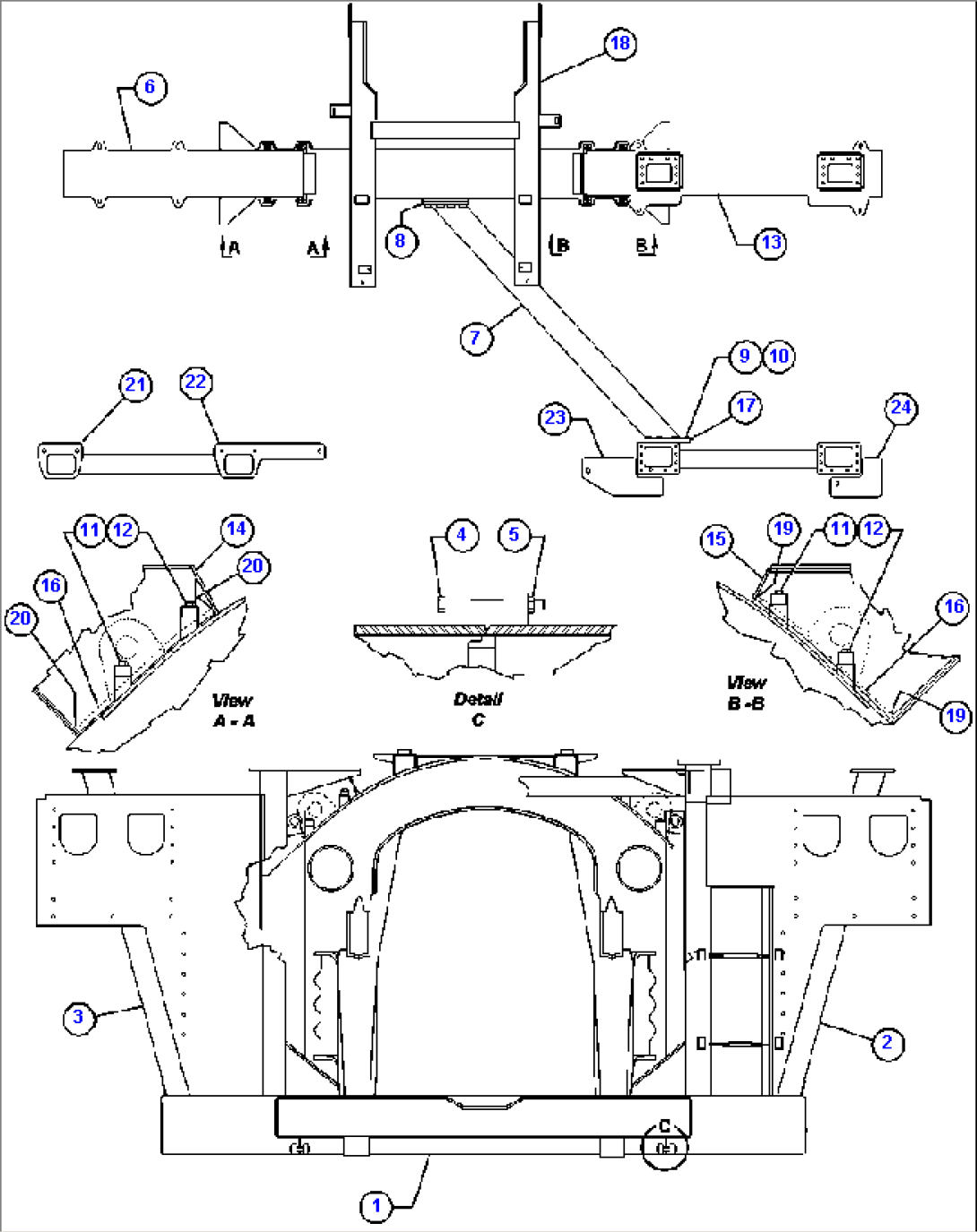

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | FRAME, MAIN (ORDER FROM FACTORY) | |||
| 2 | ED5930 | UPRIGHT - R.H. | ||
| 3 | YA3135 | UPRIGHT - L.H. | ||
| 4 | SH5272 | CAPSCREW - 5/8" - 11NC X 6" | ||
| 5 | C1525 | NUT - 5/8" - 11NC | ||
| 6 | ED6340 | SUB-FRAME - R.H. | ||
| 7 | TY6172 | TUBE, ROPS | ||
| 8 | TY6171 | MOUNT, ROPS | ||
| 9 | C1667 | CAPSCREW - 1" - 8NC X 2 1/2" | ||
| 10 | WA0364 | FLAT WASHER - 1" (HARDENED) | ||
| 11 | MM0091 | CAPSCREW - M20 X 2.5 X 30 | ||
| 12 | MM0707 | FLAT WASHER - M20 | ||
| 13 | ED6344 | SUB-FRAME - L.H. | ||
| 14 | ED6857 | PLATE - R.H. | ||
| 15 | ED6856 | PLATE - L.H. | ||
| 16 | ED6858 | BACKER | ||
| 17 | EB2093 | MOUNT, ROPS | ||
| 18 | YA3153 | SUPPORT | ||
| 19 | ED6872 | BACKER L.H. | ||
| 20 | ED6873 | BACKER R.H. | ||
| 21 | ED6859 | PLATE, MOUNT - RIGHT OUTER | ||
| 22 | ED6860 | PLATE, MOUNT - RIGHT INTER | ||
| 23 | ED6863 | PLATE, MOUNT - LEFT INTER | ||
| 24 | ED6862 | PLATE, MOUNT - LEFT OUTER |
