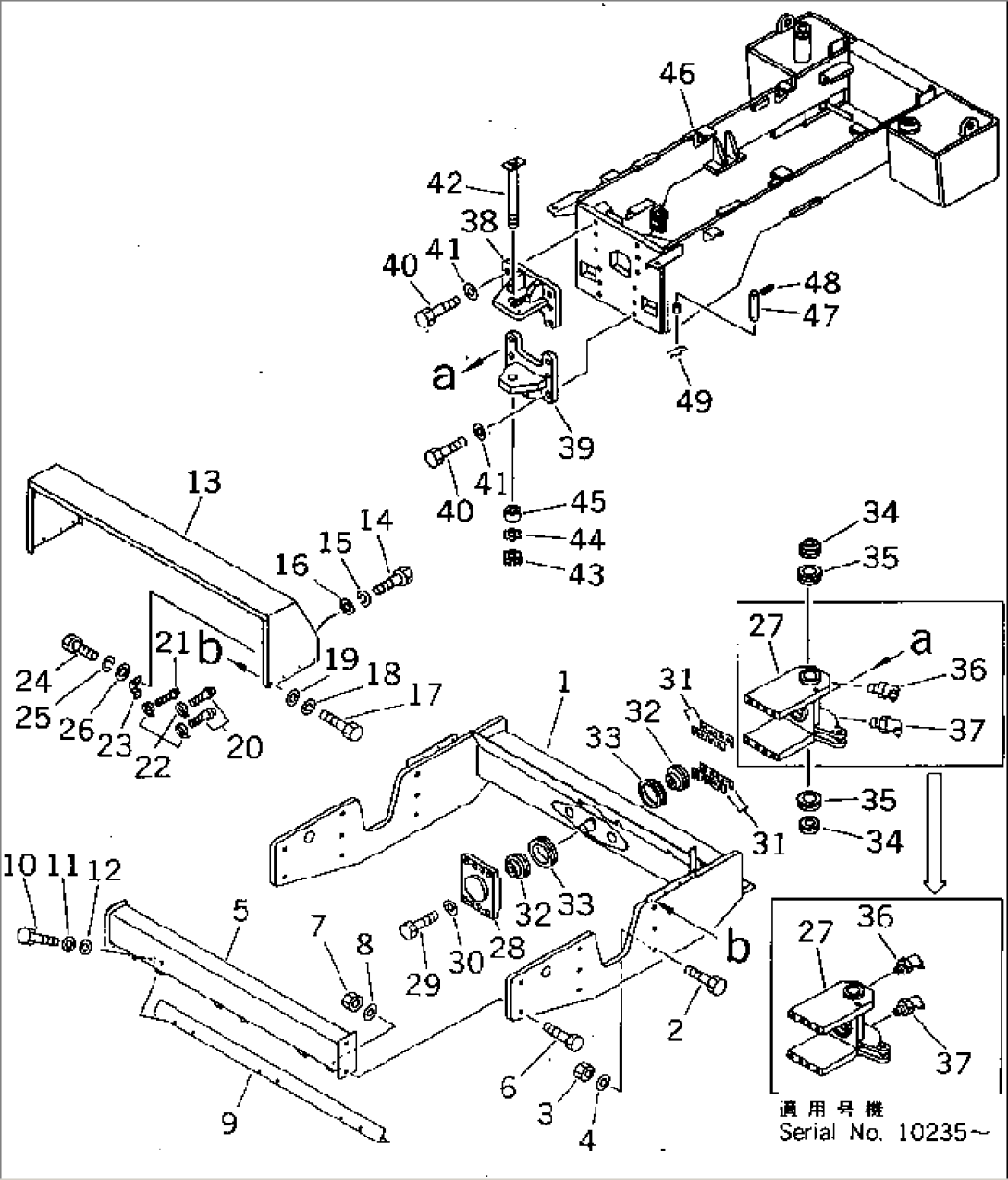

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-46-11111 | FRAME,FRONT | 10011-10301 | |
| 2 | 01010-52490 | BOLT | 10011-@ | |
| 3 | 01580-12419 | NUT | 10011-@ | |
| 4 | 01643-32460 | WASHER | 10011-@ | |
| 5 | 273-46-11132 | GUIDE | 10235-@ | |
| 273-46-11131 | GUIDE | 10011-10234 | ||
| 6 | 01010-52485 | BOLT | 10011-@ | |
| 7 | 01580-12419 | NUT | 10011-@ | |
| 8 | 01643-32460 | WASHER | 10011-@ | |
| 9 | 273-46-11341 | SCRAPER | 10011-@ | |
| 10 | 01010-51430 | BOLT | 10011-@ | |
| 11 | 01643-31445 | WASHER | 10011-@ | |
| 12 | 01643-31445 | WASHER | 10011-@ | |
| 13 | 273-46-11480 | COVER | 10011-10301 | |
| 14 | 01010-51025 | BOLT | 10011-10301 | |
| 15 | 01602-21030 | WASHER,SPRING | 10011-10301 | |
| 16 | 01643-31032 | WASHER | 10011-10301 | |
| 17 | 01010-51030 | BOLT | 10011-10301 | |
| 18 | 01602-21030 | WASHER,SPRING | 10011-10301 | |
| 19 | 01643-31032 | WASHER | 10011-10301 | |
| 20 | 273-60-14520 | TUBE | 10011-10301 | |
| 21 | 273-60-14650 | TUBE | 10011-10301 | |
| 22 | 08034-00414 | BAND | 10011-10301 | |
| 23 | 273-60-24110 | PLATE | 10011-10301 | |
| 24 | 01010-51025 | BOLT | 10011-10301 | |
| 25 | 01602-21030 | WASHER,SPRING | 10011-10301 | |
| 26 | 01643-31032 | WASHER | 10011-10301 | |
| 27 | 273-46-11122 | PLATE,GUIDE | 10235-@ | |
| 273-46-11121 | PLATE,GUIDE | 10011-10234 | ||
| 28 | 273-46-11172 | COVER | 10011-@ | |
| 29 | 01010-52070 | BOLT | 10011-@ | |
| 30 | 01643-32060 | WASHER | 10011-@ | |
| 31 | 273-46-00010 | SHIM ASS'Y | 10011-@ | |
| \6\ | SHIM¤ 1.0MM | 10011-@ | ||
| 32 | 569-63-22880 | BUSHING | 10011-@ | |
| 33 | 273-46-11230 | RING,SNAP | 10011-@ | |
| 34 | 236-46-13580 | BEARING | 10011-@ | |
| 35 | 273-46-11240 | RING,SNAP | 10011-@ | |
| 36 | 07020-00675 | FITTING,GREASE | 10011-@ | |
| 37 | 07020-00675 | FITTING,GREASE | 10011-10301 | |
| 38 | 273-46-12261 | BRACKET | 10011-@ | |
| 39 | 273-46-12270 | BRACKET | 10011-@ | |
| 40 | 01010-52480 | BOLT | 10011-@ | |
| 41 | 01643-32460 | WASHER | 10011-@ | |
| 42 | 273-46-11180 | PIN | 10011-@ | |
| 43 | 01530-05212 | NUT | 10011-@ | |
| 44 | 01658-25223 | WASHER | 10011-@ | |
| 45 | 273-46-11190 | SPACER | 10011-@ | |
| 46 | 273-46-11501 | FRAME,REAR | 10011-10301 | |
| 47 | 273-46-12211 | PIN | 10011-@ | |
| 48 | 04205-00650 | PIN,SPRING | 10011-@ | |
| 49 | 236-46-13450 | PIN | 10011-@ |
