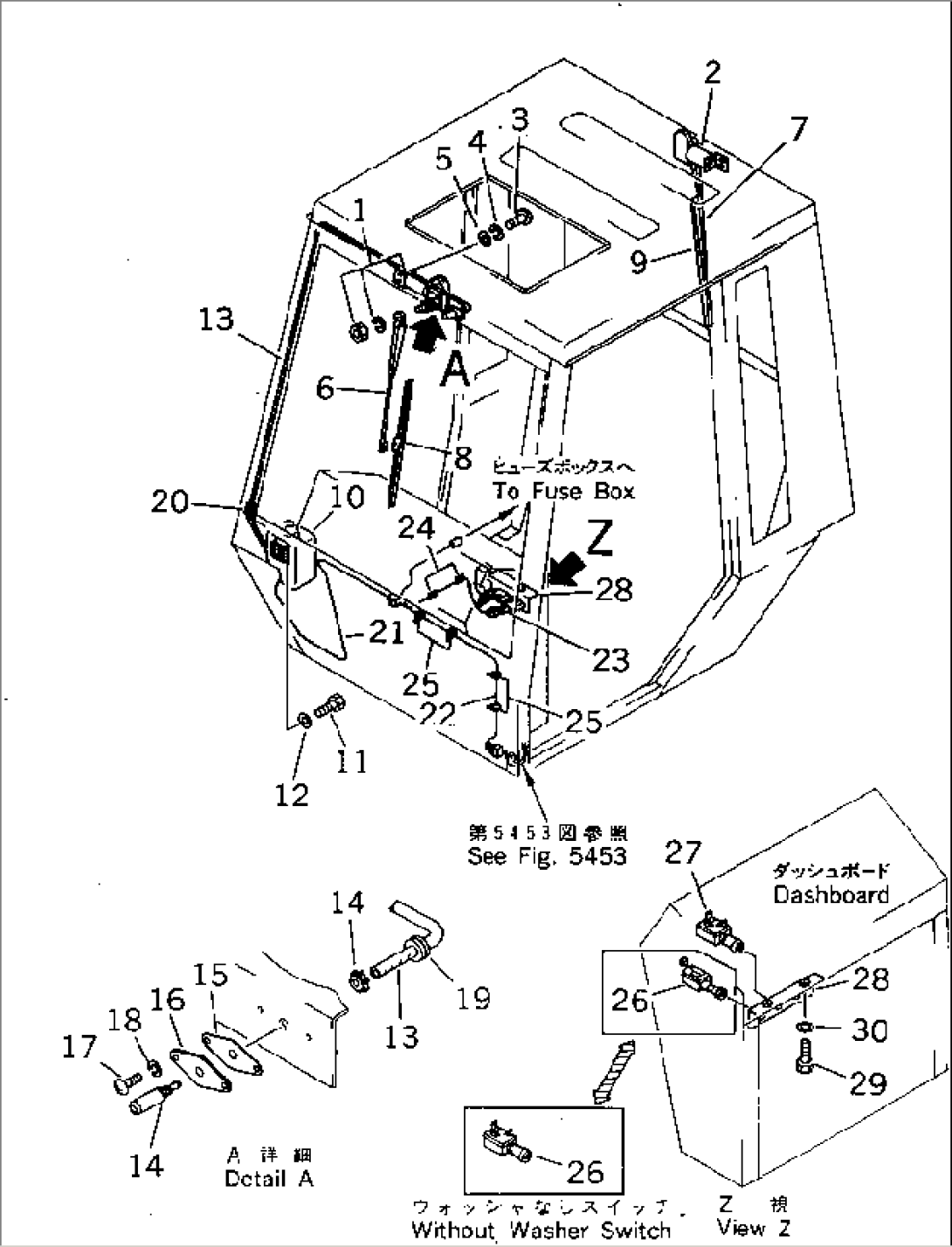

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08180-12480 | WIPER MOTOR ASS'Y,FRONT | 10235- | |
| 2 | 08180-12411 | WIPER MOTOR ASS'Y,REAR | 10011- | |
| 3 | 01220-40512 | SCREW | 10011- | |
| 4 | 01601-20513 | WASHER,SPRING | 10011- | |
| 5 | 01641-20508 | WASHER | 10011- | |
| 6 | 08184-30500 | ARM,FRONT | 10235- | |
| 7 | 08184-30400 | ARM,REAR | 10011- | |
| 8 | 205-06-62570 | BLADE | 10011- | |
| 9 | 08185-00400 | BLADE | 10011- | |
| 273-950-6100 | WINDOW WASHER A. | 10011- | ||
| 10 | 206-06-15230 | TANK | 10011- | |
| 11 | 01010-50612 | BOLT | 10011- | |
| 12 | 01643-30623 | WASHER | 10011- | |
| 13 | 273-950-2240 | HOSE | 10011- | |
| 14 | 205-06-61220 | NOZZLE ASS'Y | 10011- | |
| 15 | 22W-54-18860 | SEAT | 10011- | |
| 16 | 22W-54-18850 | PLATE | 10011- | |
| 17 | 01220-40512 | SCREW | 10011- | |
| 18 | 01601-20513 | WASHER,SPRING | 10011- | |
| 19 | 08037-01008 | GROMMET | 10011- | |
| 20 | 232-856-5250 | CLIP | 10011- | |
| 21 | 273-950-2250 | HARNESS | 10011- | |
| 22 | 273-950-2111 | HARNESS | 10011- | |
| 23 | 273-950-2160 | HARNESS | 10011- | |
| 24 | 232-856-5250 | CLIP | 10011- | |
| 25 | 08034-00310 | BAND | 10011- | |
| 26 | 205-06-61160 | SWITCH,WIPER (WITH WASHER SWITCH) | 10011- | |
| 26 | 08183-00000 | SWITCH,WIPER (WITHOUT WASHER SWITCH) | 10011- | |
| 27 | 08183-00000 | SWITCH,REAR WIPER | 10011- | |
| 28 | 273-950-2310 | BRACKET | 10011- | |
| 29 | 01010-50616 | BOLT | 10011- | |
| 30 | 01643-30623 | WASHER | 10011- |
