| Item | Part No. | Part Name | Qty | Serial No. |

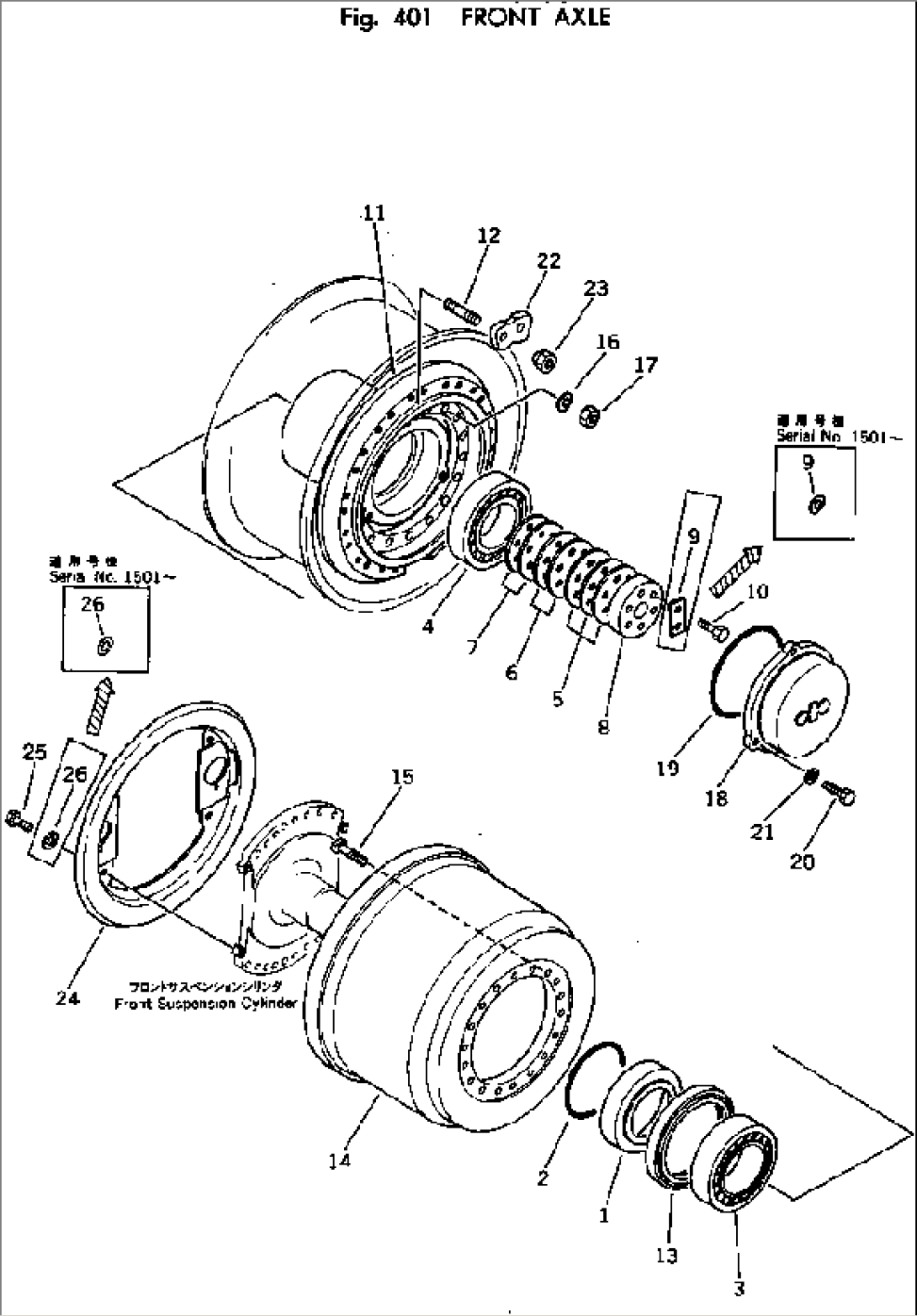

| \6\ | FRONT AXLE ASS'Y | 1102- | ||
| 1 | 569-30-11161 | RETAINER | 1102- | |
| 2 | 07000-05250 | O-RING (KIT) | 1102- | |
| 3 | 06000-32232 | BEARING,INNER | 1102- | |
| 4 | 06000-32228 | BEARING,OUTER | 1102- | |
| 5 | 569-30-00010 | SHIM ASS'Y | 1102- | |
| 5 | \6\ | SHIM, 0.2MM | 1102- | |
| 6 | \6\ | SHIM, 0.3MM | 1102- | |
| 7 | \6\ | SHIM, 1.0MM | 1102- | |
| 8 | 569-30-11210 | RETAINER | 1102- | |
| 9 | 01643-32060 | WASHER | 1501- | |
| 9 | 391-20-15130 | PLATE (KIT) | 1102-1500 | |
| 10 | 01010-62055 | BOLT | 1501- | |
| 10 | 01010-62050 | BOLT | 1102-1500 | |
| 569-30-00023 | WHEEL HUB ASS'Y,FRONT | 1501- | ||
| 569-30-00022 | WHEEL HUB ASS'Y,FRONT | 1102-1500 | ||
| 11 | 569-30-11122 | HUB | 1102- | |
| 12 | 569-22-42910 | STUD | 1501- | |
| 12 | 01120-82270 | STUD | 1102-1500 | |
| 13 | 569-30-11410 | SEAL (KIT) | 1102- | |
| 14 | 590-27-12511 | DRUM | 1102- | |
| 15 | 569-30-11180 | BOLT | 1102- | |
| 16 | 01602-22472 | WASHER | 1102- | |
| 17 | 01580-12419 | NUT | 1102- | |
| 18 | 569-30-11130 | COVER | 1102- | |
| 19 | 07000-05270 | O-RING (KIT) | 1102- | |
| 20 | 01010-51235 | BOLT | 1102- | |
| 21 | 01643-31232 | WASHER | 1102- | |
| 22 | 568-30-12210 | CLAMP | 1102- | |
| 23 | 569-22-42920 | NUT | 1501- | |
| 23 | 569-22-12920 | NUT | 1102-1500 | |
| 24 | 569-81-22910 | PLATE | 1102- | |
| 25 | 01010-31225 | BOLT | 1102- | |
| 26 | 01643-31232 | WASHER | 1501- | |
| 26 | 01602-21236 | WASHER | 1102-1500 |
