| Item | Part No. | Part Name | Qty | Serial No. |

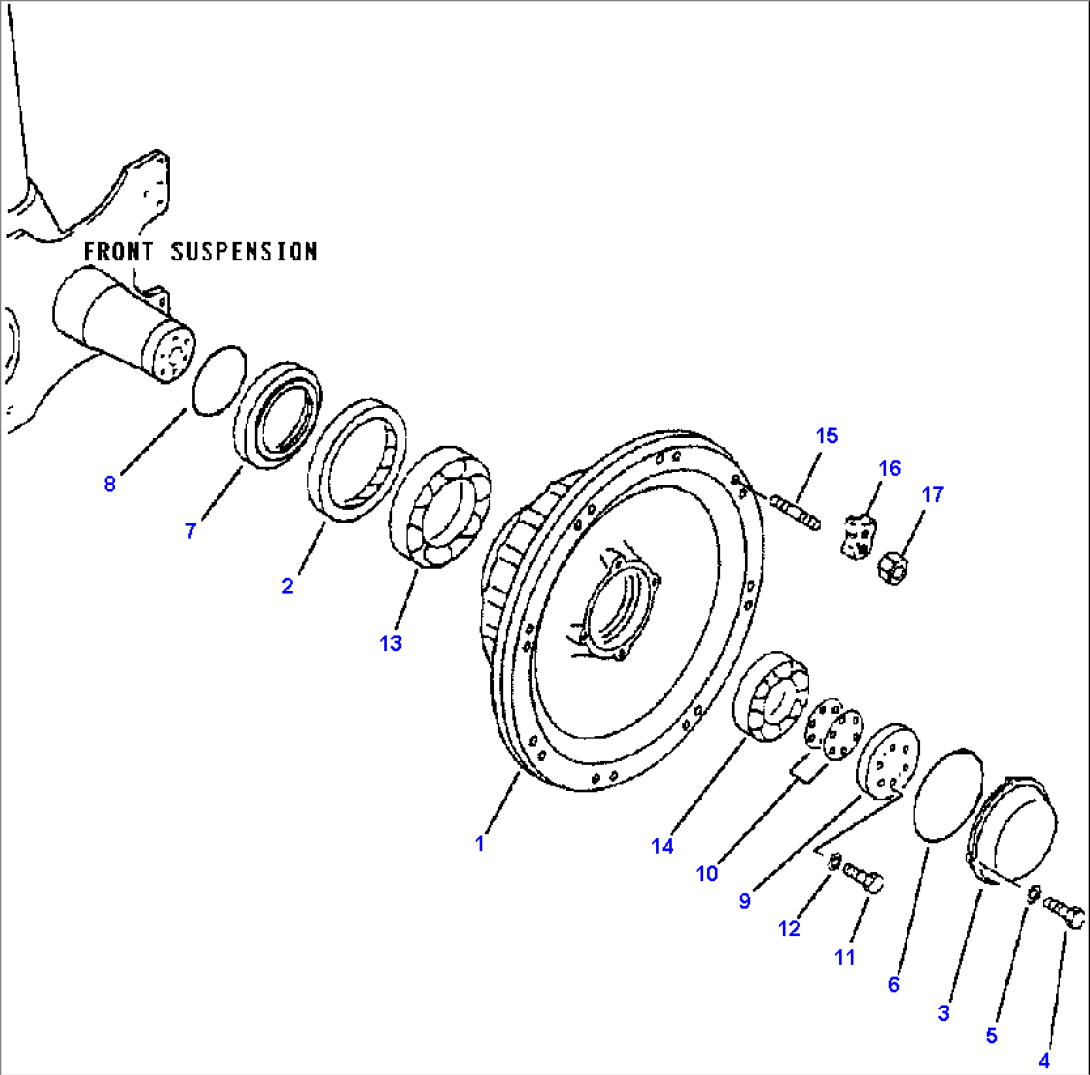

| 1 | 561-88-66520 | HUB, FRONT WHEEL | | |
| 2 | 561-27-61910 | SEAL | | |
| 3 | 561-27-61220 | COVER | | |
| 4 | 01010-81235 | CAPSCREW | | |
| 5 | 01643-31232 | FLAT WASHER | | |
| 6 | 07000-05300 | O-RING (1) | | |
| 7 | 561-27-61130 | RETAINER (2) | | |
| 7 | 561-27-61131 | RETAINER (3) | | |
| 8 | 07000-05305 | O-RING (1) | | |
| 9 | 561-27-61141 | RETAINER (2) | | |
| 9 | 561-27-61142 | RETAINER (3) | | |
| 10 | 561-27-00010 | SHIM ASSEMBLY (2) | | |
| 10 | 561-27-00011 | SHIM ASSEMBLY (3) | | |
| 10 | | SHIM - 0.2 MM | | |
| 10 | | SHIM - 0.3 MM | | |
| 10 | | SHIM - 1.0 MM | | |
| 10 | | SHIM - 0.05 MM | | |
| 11 | 01010-62470 | CAPSCREW | | |
| 12 | 01643-32460 | WASHER | | |
| 13 | 566-22-12180 | BEARING (2) | | |
| 13 | 561-27-61940 | BEARING (3) | | |
| 14 | 568-22-11960 | BEARING (2) | | |
| 14 | 561-27-61960 | BEARING (3) | | |
| 15 | 561-22-62910 | STUD | | |
| 16 | 561-22-62841 | CLAMP | | |
| 17 | 582-27-11291 | NUT | | |
| NS|27 | 561-27-05010 | NOTE: (1) INCLUDED IN 561-27-05010 FRONT AXLE SERVICE KIT. | | |
| NS|28 | | (2) EFFECTIVE THRU A10274. | | |
| NS|29 | | (3) EFFECTIVE WITH A10275. | | |
| NS|30 | | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) | | |
