| Item | Part No. | Part Name | Qty | Serial No. |

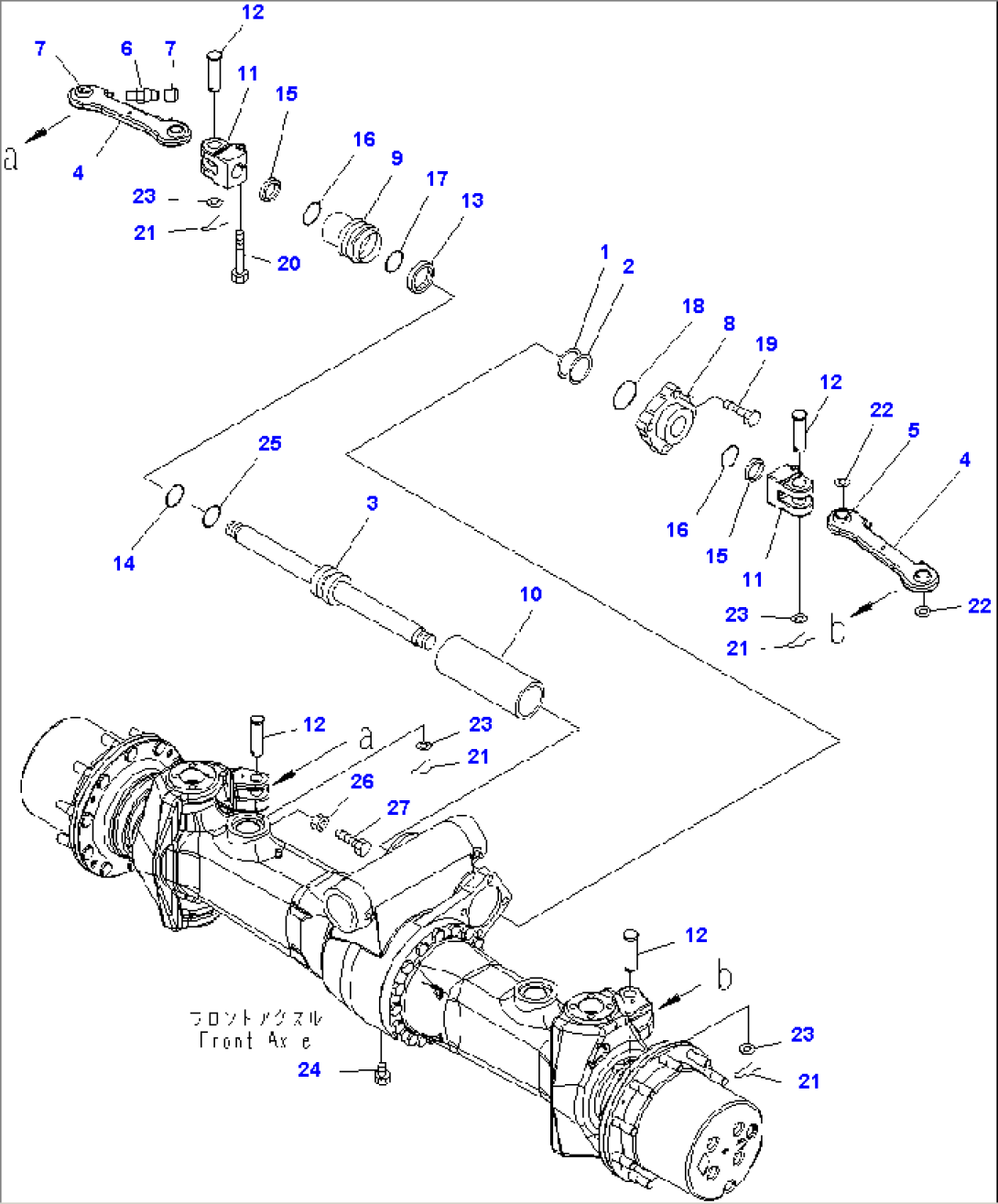

| 20G-23-31001 | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S1150-51A0 TO S1150-64A0. | K40001- | ||
| 1 | 20G-23-31330 | SHIM | K40001- | |
| 2 | 20G-22-31340 | SHIM | K40001- | |
| 3 | 20G-23-31180 | ROD,CONNECTING | K40001- | |
| 20K-23-32170 | TIE ROD ASS'Y | K40001- | ||
| 4 | 20K-23-31990 | TIE ROD | K40001- | |
| 5 | 20K-23-31280 | BEARING | K40001- | |
| 6 | 20K-23-31290 | NIPPLE | K40001- | |
| 7 | 20K-23-31310 | CAP,PROTECTION | K40001- | |
| 8 | 20G-23-31160 | COVER | K40001- | |
| 9 | 20G-23-31190 | BUSHING | K40001- | |
| 10 | 20G-23-31170 | HOSE,CYLINDER | K40001- | |
| 11 | 20G-23-31260 | FORK | K40001- | |
| 12 | 20G-23-31270 | PIN | K40001- | |
| 13 | 20G-23-31290 | O-RING | K40001- | |
| 14 | 20G-23-31240 | GASKET,PISTON | K40001- | |
| 15 | 20G-23-31210 | EXTRACTOR | K40001- | |
| 16 | 20G-23-31220 | SEAL ,PISTON ROD | K40001- | |
| 17 | 20G-23-31230 | O-RING | K40001- | |
| 18 | 20G-23-31280 | O-RING | K40001- | |
| 19 | 20G-23-31310 | SCREW | K40001- | |
| 20 | 20G-23-31940 | SCREW | K40001- | |
| 21 | 20K-23-31450 | PIN,SNAP | K40001- | |
| 22 | 20K-23-31460 | WASHER | K40001- | |
| 23 | 20G-23-31320 | WASHER | K40001- | |
| 24 | 20K-23-31480 | PLUG | K40001- | |
| 25 | 20G-23-31250 | GUIDE RING | K40001- | |
| 26 | 20K-23-31510 | NUT | K40001- | |
| 27 | 20K-23-31520 | SCREW | K40001- |
