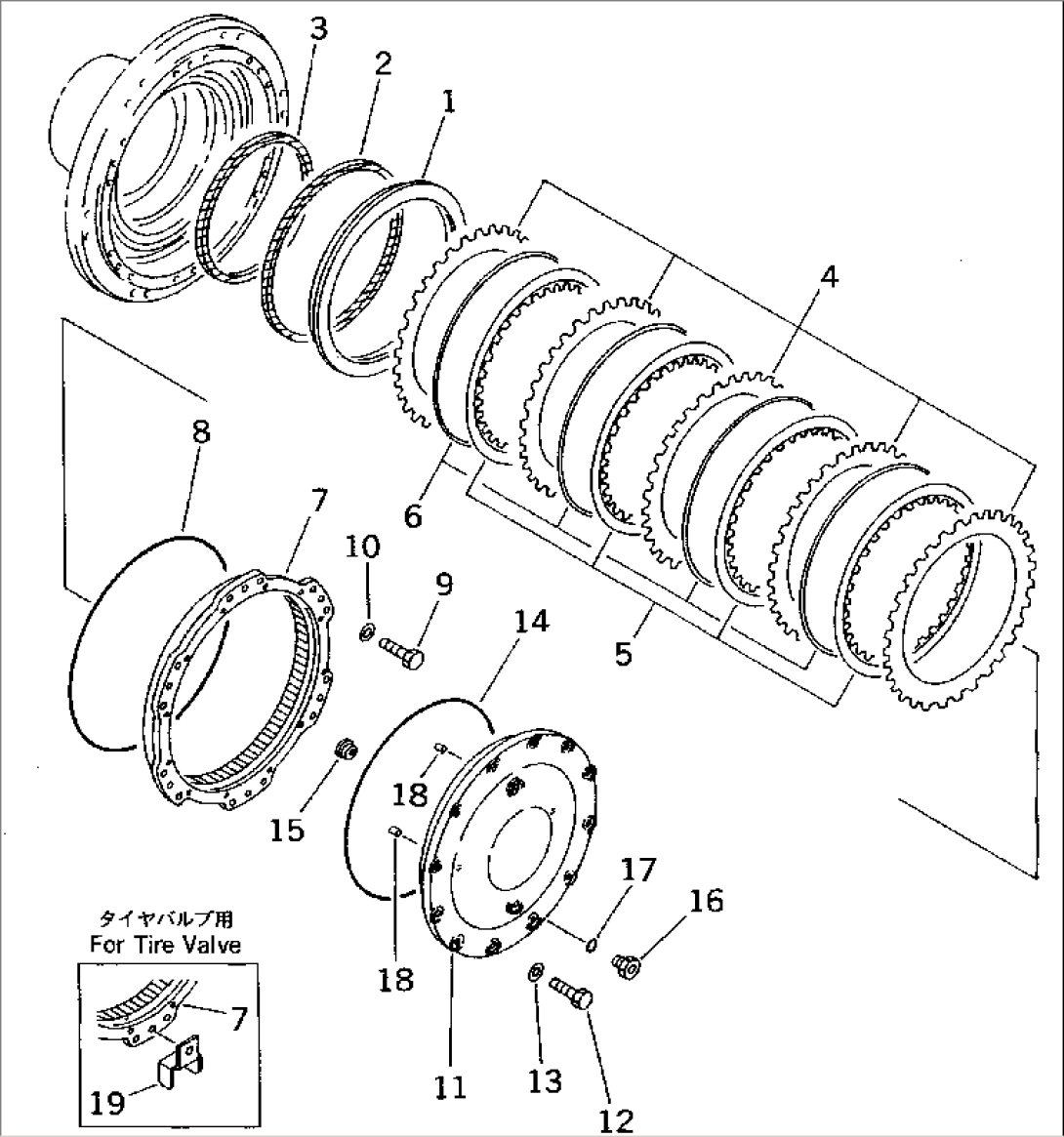

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-88-71390 | PISTON | 5001- | |
| 2 | 19M-15-19220 | RING,SEAL | 5001- | |
| 3 | 154-15-22811 | RING,SEAL | 5001- | |
| 4 | 582-15-12730 | PLATE | 5001- | |
| 5 | 562-15-12860 | DISC | 5001- | |
| 6 | 582-15-19810 | SPRING | 5001- | |
| 7 | 566-88-71410 | GEAR | 5001- | |
| 8 | 566-13-13341 | O-RING | 5001- | |
| 9 | 01010-51245 | BOLT | 5001- | |
| 10 | 01643-31232 | WASHER | 5001- | |
| 11 | 566-88-71740 | RETAINER | 5001- | |
| 12 | 01010-51235 | BOLT | 5001- | |
| 13 | 01643-31232 | WASHER | 5001- | |
| 14 | 56A-46-13480 | O-RING | 5001- | |
| 15 | 566-88-71530 | BUTTON | 5001- | |
| 16 | 07044-12412 | PLUG | 5001- | |
| 17 | 07002-02434 | O-RING | 5001- | |
| 18 | 708-8H-13220 | PIN,DOWEL | 5001- | |
| 19 | 566-88-71910 | COVER,TIRE VALVE (OP) | 5001- |
