| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (415-22-20001) | AXLE ASS'Y,FRONT | 10001- | |
| 2 | 01010-82040 | BOLT | 10001- | |
| 3 | 01643-32060 | WASHER | 10001- | |
| 4 | 01011-61660 | BOLT | 10001- | |
| 5 | 01643-31645 | WASHER | 10001- | |
| 6 | 01580-01613 | NUT | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa80 3 s/n 10001 up (canopy spec.)
- Power train
- Front axle and mounting parts
Поиск по каталогу

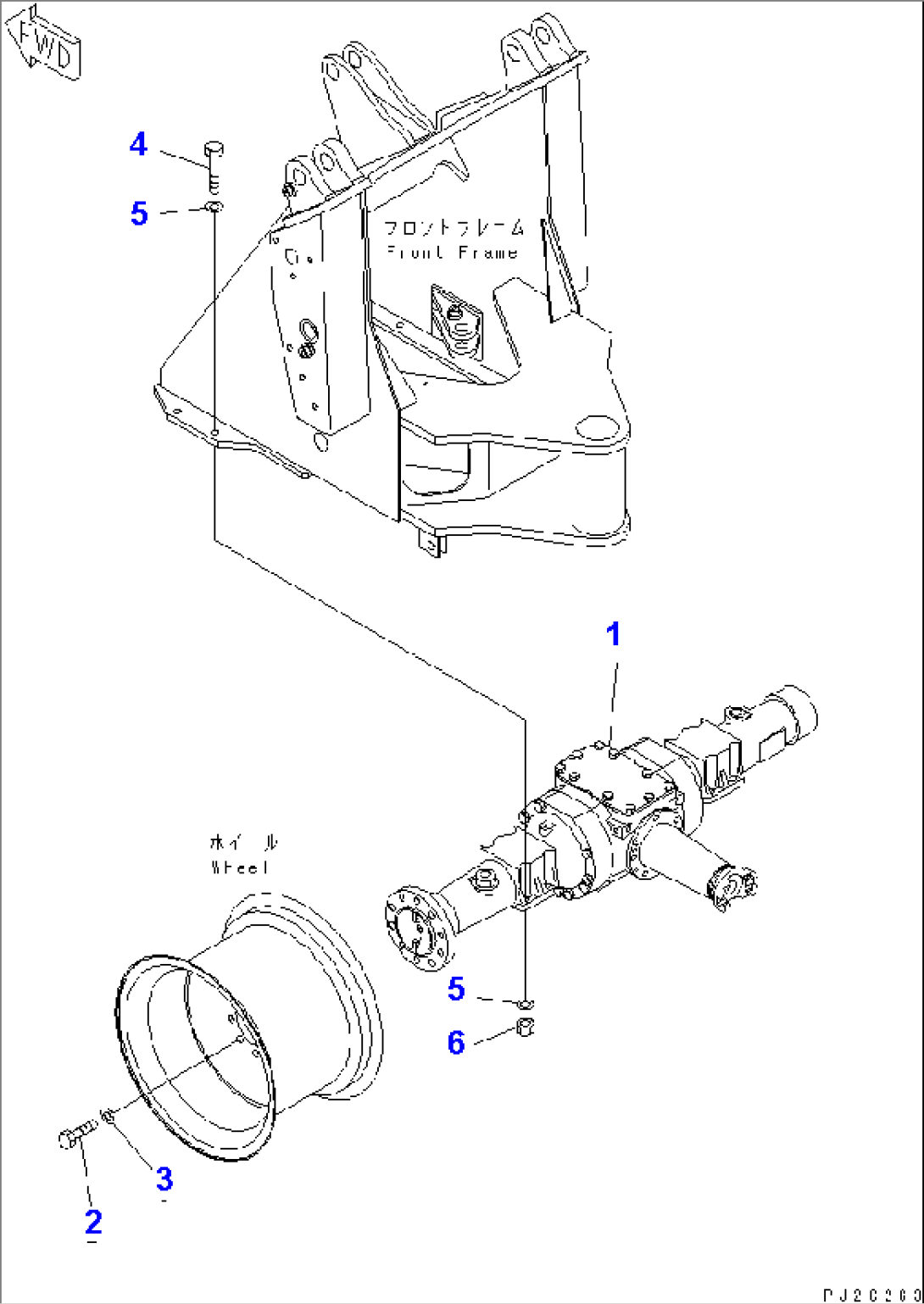

FRONT AXLE AND MOUNTING PARTS
