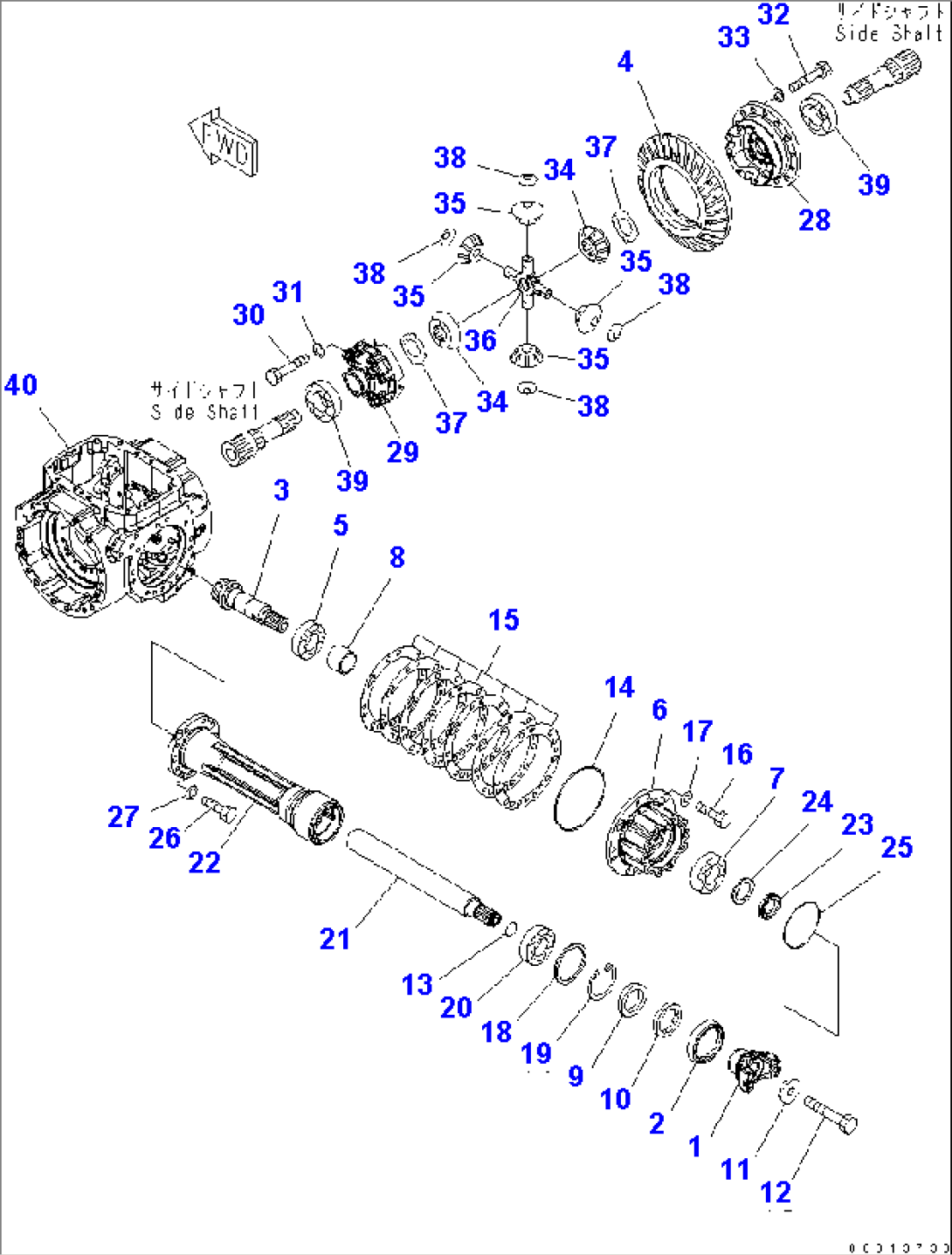

FRONT AXLE (DIFFERENTIAL)

Item	Part No.	Part Name	Qty	Serial No.
	417-22-30010	.AXLE ASS'Y,FRONT		70001-
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-51A0 TO F4400-54A0.
1	417-22-31240	.COUPLING		70001-
2	417-22-21310	.PROTECTOR		70001-
	417-22-31601	.PINION ASS'Y		70001-
3	\6\	..PINION		70001-
4	\6\	..GEAR,BEVEL		70001-
5	417-22-11810	.BEARING		70001-
6	417-22-31130	.CAGE,FRONT		70001-
7	417-22-11810	.BEARING		70001-
8	417-22-31861	.SPACER		70001-
9	07012-50065	.SEAL		70001-
10	417-22-31330	.SEAL,OIL		70001-
11	417-22-33770	.HOLDER		70001-
12	01011-61615	.BOLT		70001-
13	07000-13035	.O-RING		70001-
14	07000-15160	.O-RING		70001-
15	417-22-11361	.SHIMÂ¤ 0.05MM		70001-
	417-22-11371	.SHIMÂ¤ 0.2MM		70001-
	417-22-11381	.SHIMÂ¤ 0.3MM		70001-
	417-22-11391	.SHIMÂ¤ 0.8MM		70001-
16	01010-61235	.BOLT		70001-
17	01643-31232	.WASHER		70001-
18	417-22-31950	.RING,THRUST		70001-
19	04065-09030	.RING,SNAP		70001-
20	06301-06308	.BEARING		70001-
21	417-22-31920	.SHAFT		70001-
22	417-22-31870	.CAGE		70001-
23	417-22-31990	.NUT		70001-
24	417-22-31980	.HOLDER		70001-
25	07000-15110	.O-RING		70001-
26	01010-61240	.BOLT		70001-
27	01643-31232	.WASHER		70001-
	417-22-31502	.CASE ASS'Y		70001-
28	\6\	..CASE		70001-
29	\6\	..CASE		70001-
30	01010-61280	.BOLT		70001-
31	01643-51232	.WASHER		70001-
32	01010-61235	.BOLT		70001-
33	01643-31232	.WASHER		70001-
34	417-22-11432	.GEAR		70001-
35	417-22-11420	.PINION		70001-
36	418-23-31410	.SPIDER		70001-
37	418-23-31460	.WASHER		70001-
38	418-23-31550	.WASHER		70001-
39	417-22-11850	.BEARING		70001-
40	417-22-33110	.HOUSING		70001-
