| Item | Part No. | Part Name | Qty | Serial No. |
| (\2\415-22-21001) | AXLE,FRONT | (10041-11526) | ||
| (\0\415-22-21000) | AXLE,FRONT | 10001-10040 | ||

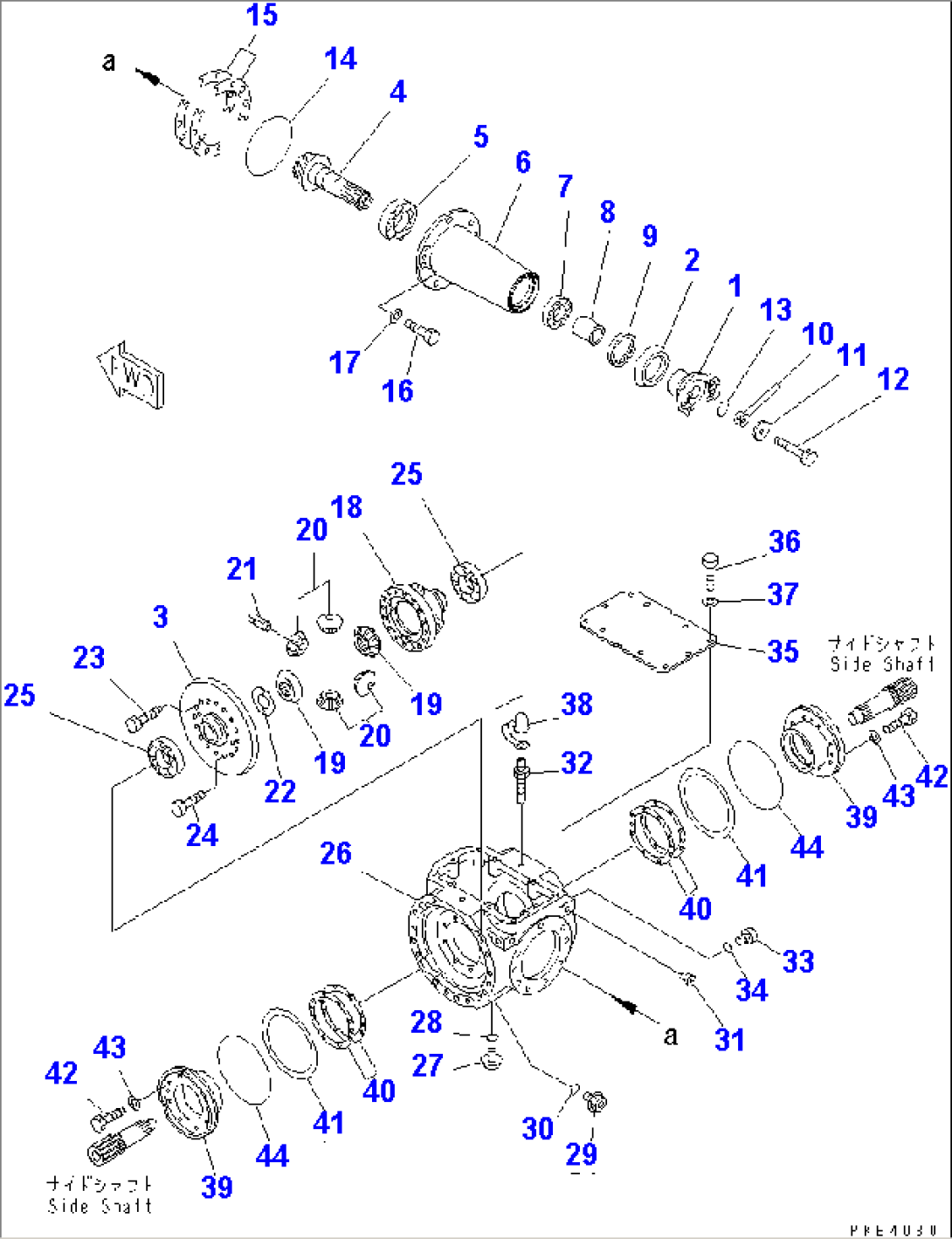

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||
| 1 | 415-22-21231 | COUPLING | 10001- | |
| 2 | 363-22-31310 | PROTECTOR | 10001- | |
| 415-22-21250 | PINION GEAR ASS'Y | 10001- | ||
| 3 | \6\ | GEAR | 10001- | |
| 4 | \6\ | PINION | 10001- | |
| 5 | 415-22-11830 | BEARING | 10001- | |
| 6 | 415-22-21150 | CAGE | 10001- | |
| 7 | 363-22-31820 | BEARING | 10001- | |
| 8 | 363-22-31260 | SPACER | 10001- | |
| 9 | 363-22-31250 | SEAL | 10001- | |
| 10 | 415-22-21560 | SHIM, 0.05MM | 10001- | |
| 10 | 415-22-21580 | SHIM, 0.2MM | 10001- | |
| 10 | 415-22-21590 | SHIM, 0.5MM | 10001- | |
| 11 | 415-22-11241 | HOLDER | 10001- | |
| 12 | 01010-31285 | BOLT | 10001- | |
| 13 | 07000-13025 | O-RING | 10001- | |
| 14 | 07000-12115 | O-RING | 10001- | |
| 15 | 415-22-11360 | SHIM, 0.05MM | 10001- | |
| 15 | 415-22-11370 | SHIM, 0.10MM | 10001- | |
| 15 | 415-22-11380 | SHIM, 0.40MM | 10001- | |
| 16 | 01010-31235 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 415-22-11512 | CARRIER | 11527- | |
| 18 | \0\415-22-21511 | CARRIER | 10001-11526 | |
| 19 | 415-22-11430 | GEAR,PM | 11527- | |
| 19 | \0\415-22-21431 | GEAR,PM | 10001-11526 | |
| 20 | 415-22-11420 | PINION | 11527- | |
| 20 | \0\415-22-21421 | PINION | 10001-11526 | |
| 21 | 415-22-21411 | SHAFT | 10001- | |
| 22 | 415-22-11530 | WASHER | 10001- | |
| 23 | 415-22-11440 | BOLT | 10001- | |
| 24 | 01010-61235 | BOLT | 11527- | |
| 24 | 01010-31240 | BOLT | 10001-11526 | |
| 25 | 415-22-11850 | BEARING | 10001- | |
| 26 | 415-22-13112 | HOUSING | 10001- | |
| 27 | 07044-12412 | PLUG | 10001- | |
| 28 | 07002-12434 | O-RING | 10001- | |
| 29 | 419-22-13140 | PLUG | 10001- | |
| 30 | 07002-13034 | O-RING | 10001- | |
| 31 | 07043-70211 | PLUG | 10001- | |
| 32 | 419-33-11460 | BLEEDER | 10001- | |
| 33 | 07040-11209 | PLUG | 10001- | |
| 34 | 07002-11223 | O-RING | 10001- | |
| 35 | 415-22-13120 | COVER | 10001- | |
| 36 | 01010-61025 | BOLT | 10001- | |
| 37 | 01643-31032 | WASHER | 10001- | |
| 38 | 566-32-11620 | CAP | 10001- | |
| 39 | 415-22-11161 | CARRIER | 10001- | |
| 40 | 415-22-11560 | SHIM, 0.07MM | 10001- | |
| 40 | 415-22-11570 | SHIM, 0.2MM | 10001- | |
| 40 | 415-22-11580 | SHIM, 0.3MM | 10001- | |
| 40 | 415-22-11590 | SHIM, 0.8MM | 10001- | |
| 41 | 415-33-11432 | RING | 10001- | |
| 42 | 01010-60825 | BOLT | 10001- | |
| 43 | 01643-50823 | WASHER | 10001- | |
| 44 | 415-33-11420 | O-RING | 10001- |
