| Item | Part No. | Part Name | Qty | Serial No. |
| (417-22-30101) | AXLE ASS'Y | 72151- | ||
| (417-22-30010) | AXLE ASS'Y,FRONT | 65061-72150 | ||

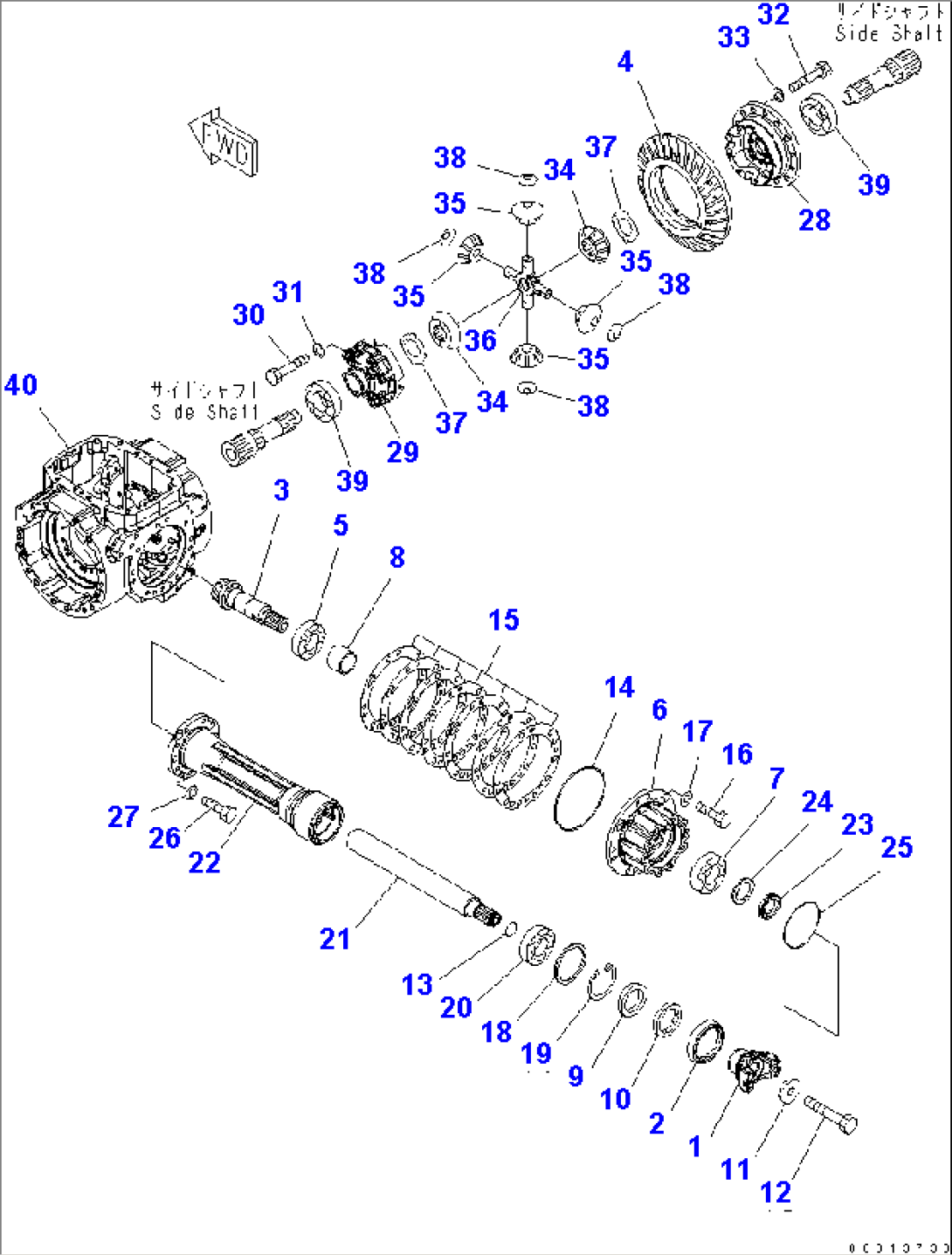

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-51A0 TO F4400-54A0. | ||||
| 417-22-31260 | COUPLING ASS'Y | 65061- | ||
| 1 | \6\ | COUPLING | 65061- | |
| 2 | \6\ | PROTECTOR | 65061- | |
| 417-22-31601 | PINION ASS'Y | 65061- | ||
| 3 | \6\ | PINION | 65061- | |
| 4 | \6\ | GEAR,BEVEL | 65061- | |
| 5 | 417-22-11810 | BEARING | 65061- | |
| 6 | 417-22-31130 | CAGE,FRONT | 65061- | |
| 7 | 417-22-11810 | BEARING | 65061- | |
| 8 | 417-22-31861 | SPACER | 65061- | |
| 9 | 07012-50065 | SEAL | 65061- | |
| 10 | 417-22-31330 | SEAL,OIL | 65061- | |
| 11 | 417-22-33770 | HOLDER | 65061- | |
| 12 | 01011-61615 | BOLT | 65061- | |
| 13 | 07000-13035 | O-RING | 65061- | |
| 14 | 07000-15160 | O-RING | 65061- | |
| 15 | 417-22-11361 | SHIM, 0.05MM | 65061- | |
| 15 | 417-22-11371 | SHIM, 0.2MM | 65061- | |
| 15 | 417-22-11381 | SHIM, 0.3MM | 65061- | |
| 15 | 417-22-11391 | SHIM, 0.8MM | 65061- | |
| 16 | 01010-61235 | BOLT | 65061- | |
| 17 | 01643-31232 | WASHER | 65061- | |
| 18 | 417-22-31950 | RING,THRUST | 65061- | |
| 19 | 04065-09030 | RING,SNAP | 65061- | |
| 20 | 06301-06308 | BEARING | 65061- | |
| 21 | 417-22-31920 | SHAFT | 65061- | |
| 22 | 417-22-31870 | CAGE | 65061- | |
| 23 | 417-22-31990 | NUT | 65061- | |
| 24 | 417-22-31980 | HOLDER | 65061- | |
| 25 | 07000-15110 | O-RING | 65061- | |
| 26 | 01010-61240 | BOLT | 65061- | |
| 27 | 01643-31232 | WASHER | 65061- | |
| 417-22-31502 | CASE ASS'Y | 65061- | ||
| 28 | \6\ | CASE | 65061- | |
| 29 | \6\ | CASE | 65061- | |
| 30 | 01010-61280 | BOLT | 65061- | |
| 31 | 01643-51232 | WASHER | 65061- | |
| 32 | 01010-61235 | BOLT | 65061- | |
| 33 | 01643-31232 | WASHER | 65061- | |
| 34 | 417-22-11432 | GEAR | 65061- | |
| 35 | 417-22-11420 | PINION | 65061- | |
| 36 | 418-23-31410 | SPIDER | 65061- | |
| 37 | 418-23-31460 | WASHER | 65061- | |
| 38 | 418-23-31550 | WASHER | 65061- | |
| 39 | 417-22-11850 | BEARING | 65061- | |
| 40 | 417-22-33110 | HOUSING | 65061- |
