| Item | Part No. | Part Name | Qty | Serial No. |

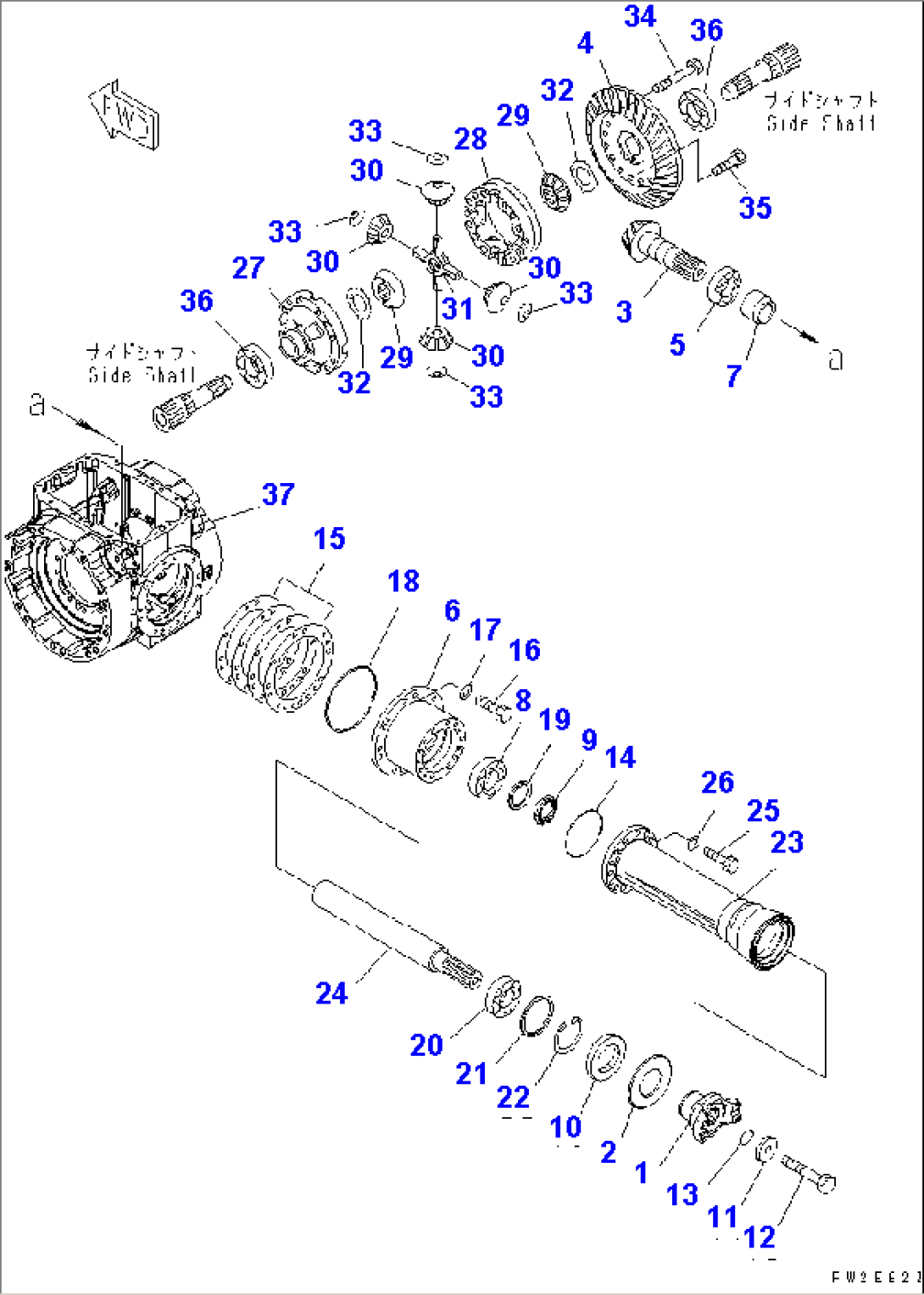

| AXLE ASS'Y,(SEE FIG. F4400-02A0) | A89001- | |||
| 1 | 418-23-31231 | COUPLING | A89001- | |
| 2 | 418-22-21310 | PROTECTOR | A89001- | |
| 418-22-31201 | PINION | A89001- | ||
| 3 | \6\ | PINION | A89001- | |
| 4 | \6\ | GEAR,BEVEL | A89001- | |
| 5 | 418-22-11810 | BEARING | A89001- | |
| 6 | 418-22-31141 | CAGE | A89001- | |
| 7 | 418-22-31861 | SPACER | A89001- | |
| 8 | 419-22-11820 | BEARING | A89001- | |
| 9 | 418-22-31990 | NUT | A89001- | |
| 10 | 418-22-21330 | SEAL,OIL | A89001- | |
| 11 | 417-15-13770 | HOLDER | A89001- | |
| 12 | 01011-61615 | BOLT | A89001- | |
| 13 | 07000-13042 | O-RING | A89001- | |
| 14 | 07000-15115 | O-RING | A89001- | |
| 15 | 417-22-11361 | SHIM, 0.05MM | A89001- | |
| 417-22-11371 | SHIM, 0.2MM | A89001- | ||
| 417-22-11381 | SHIM, 0.3MM | A89001- | ||
| 417-22-11391 | SHIM, 0.8MM | A89001- | ||
| 16 | 01010-61235 | BOLT | A89001- | |
| 17 | 01643-31232 | WASHER | A89001- | |
| 18 | 07000-15160 | O-RING | A89001- | |
| 19 | 418-22-31980 | HOLDER | A89001- | |
| 20 | 06301-06310 | BEARING | A89001- | |
| 21 | 418-22-31970 | RING | A89001- | |
| 22 | 04065-01104 | RING,SNAP | A89001- | |
| 23 | 418-22-31851 | CAGE | A89001- | |
| 24 | 418-22-31921 | SHAFT | A89001- | |
| 25 | 01010-61240 | BOLT | A89001- | |
| 26 | 01643-31232 | WASHER | A89001- | |
| 418-22-31502 | CASE ASS'Y | A89001- | ||
| 27 | 418-22-31512 | CASE | A89001- | |
| 28 | 418-22-31521 | CASE | A89001- | |
| 29 | 418-22-31430 | GEAR | A89001- | |
| 30 | 419-22-11421 | PINION | A89001- | |
| 31 | 418-22-31410 | SPIDER | A89001- | |
| 32 | 418-22-31460 | WASHER | A89001- | |
| 33 | 418-22-31550 | WASHER | A89001- | |
| 34 | 01010-61695 | BOLT | A89001- | |
| 35 | 01010-61645 | BOLT | A89001- | |
| 36 | 417-22-12840 | BEARING | A89001- | |
| 37 | 418-22-33121 | HOUSING | A89001- |
