| Item | Part No. | Part Name | Qty | Serial No. |
| (426-22-30052) | AXLE ASS'Y,FRONT | 55001- | ||

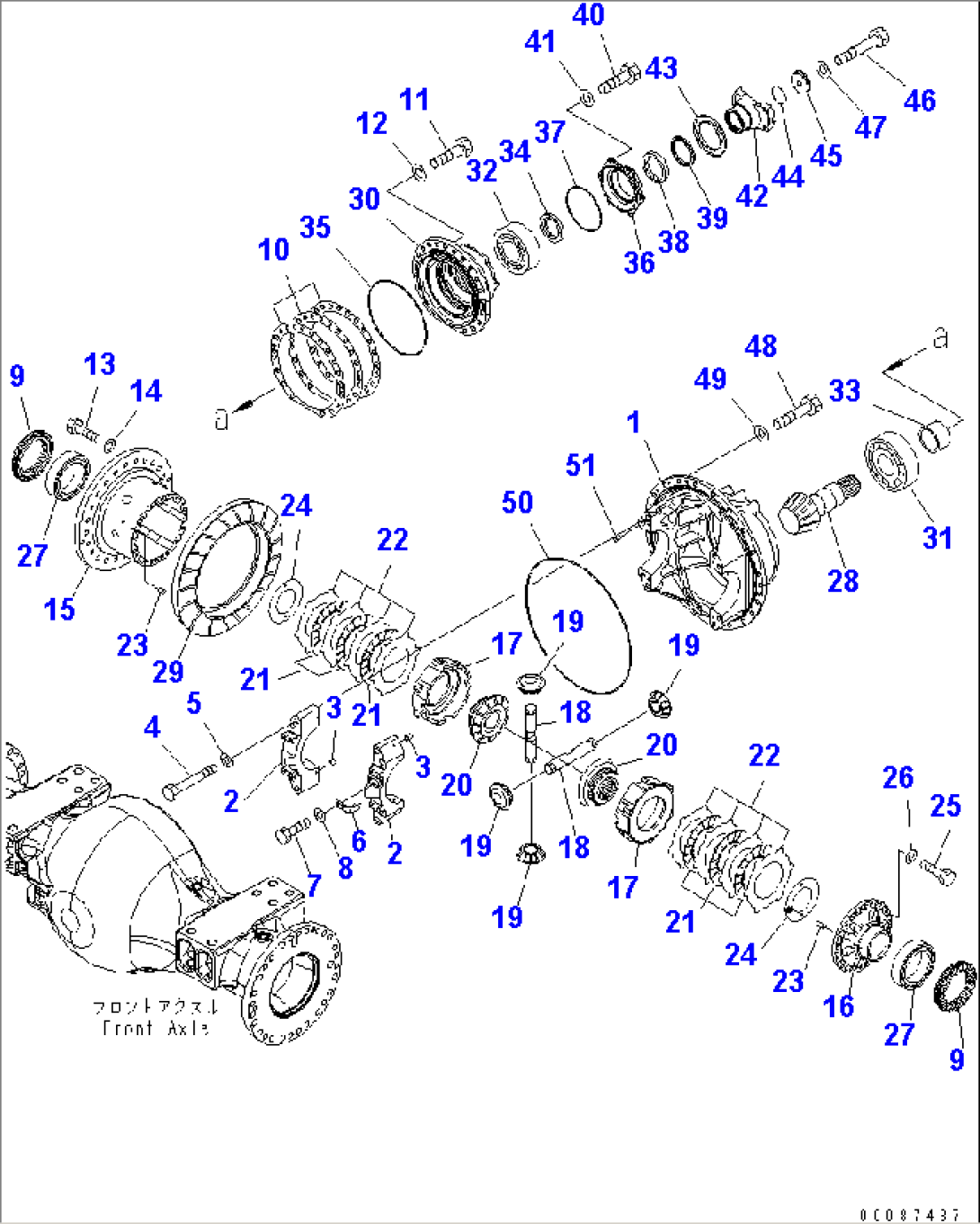

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-09A0. | ||||
| 426-22-31052 | DIFFERENTIAL ASS'Y | 55001- | ||
| 426-22-31151 | CARRIER ASS'Y | 55001- | ||
| 1 | \6\ | CARRIER | 55001- | |
| 2 | \6\ | CAP | 55001- | |
| 3 | 175-21-12180 | PIN | 55001- | |
| 4 | 01011-62455 | BOLT | 55001- | |
| 5 | 01643-32460 | WASHER | 55001- | |
| 6 | 426-22-11150 | LOCK | 55001- | |
| 7 | 01010-61230 | BOLT | 55001- | |
| 8 | 01643-31232 | WASHER | 55001- | |
| 9 | 426-22-31140 | NUT | 55001- | |
| 10 | 426-22-31371 | SHIM | 55001- | |
| 10 | 426-22-31381 | SHIM | 55001- | |
| 10 | 426-22-31391 | SHIM | 55001- | |
| 10 | 426-22-31361 | SHIM | 55001- | |
| 11 | 01010-62060 | BOLT | 55001- | |
| 12 | 01643-32060 | WASHER | 55001- | |
| 13 | 01010-62060 | BOLT | 55001- | |
| 14 | 01643-32060 | WASHER | 55001- | |
| 426-22-37500 | DIFFERENTIAL ASS'Y | 55001- | ||
| 15 | 426-22-37511 | CASE | 55001- | |
| 16 | 426-22-37521 | COVER | 55001- | |
| 17 | 426-22-37530 | RING | 55001- | |
| 18 | 426-22-37540 | SHAFT | 55001- | |
| 19 | 426-22-37310 | PINION | 55001- | |
| 20 | 426-22-37330 | GEAR | 55001- | |
| 21 | 426-22-37610 | CLUTCH DISC | 55001- | |
| 22 | 426-22-37620 | PLATE | 55001- | |
| 22 | 426-22-37630 | PLATE | 55001- | |
| 23 | 175-21-12180 | PIN | 55001- | |
| 24 | 426-22-37970 | WASHER | 55001- | |
| 24 | 426-22-37980 | WASHER | 55001- | |
| 24 | 426-22-37990 | WASHER | 55001- | |
| 25 | 01010-61445 | BOLT | 55001- | |
| 26 | 01643-31445 | WASHER | 55001- | |
| 27 | 566-22-71850 | BEARING | 55001- | |
| 426-22-31202 | PINION AND GEAR | 55001- | ||
| 28 | \6\ | PINION | 55001- | |
| 29 | \6\ | GEAR | 55001- | |
| 30 | 426-22-31311 | CAGE | 55001- | |
| 31 | 428-22-11810 | BEARING | 55001- | |
| 32 | 426-22-31820 | BEARING | 55001- | |
| 33 | 426-22-31331 | SPACER | 55001- | |
| 34 | 426-22-31340 | RETAINER | 55001- | |
| 35 | 07000-15350 | O-RING | 55001- | |
| 36 | 426-22-31751 | CAGE | 55001- | |
| 37 | 07000-15220 | O-RING | 55001- | |
| 38 | 07012-50110 | SEAL | 55001- | |
| 39 | 426-22-31770 | SEAL | 55001- | |
| 40 | 01010-61030 | BOLT | 55001- | |
| 41 | 01643-31032 | WASHER | 55001- | |
| 42 | 426-22-31731 | COUPLING | 55001- | |
| 43 | 426-22-31781 | PROTECTOR | 55001- | |
| 44 | 07000-15075 | O-RING | 55001- | |
| 45 | 426-22-31761 | HOLDER | 55001- | |
| 46 | 01051-62445 | BOLT | 55001- | |
| 47 | 01643-32460 | WASHER | 55001- | |
| 48 | 01010-62055 | BOLT | 55001- | |
| 49 | 01643-32060 | WASHER | 55001- | |
| 50 | 566-09-21110 | O-RING | 55001- | |
| 51 | 04020-01842 | PIN | 55001- |
