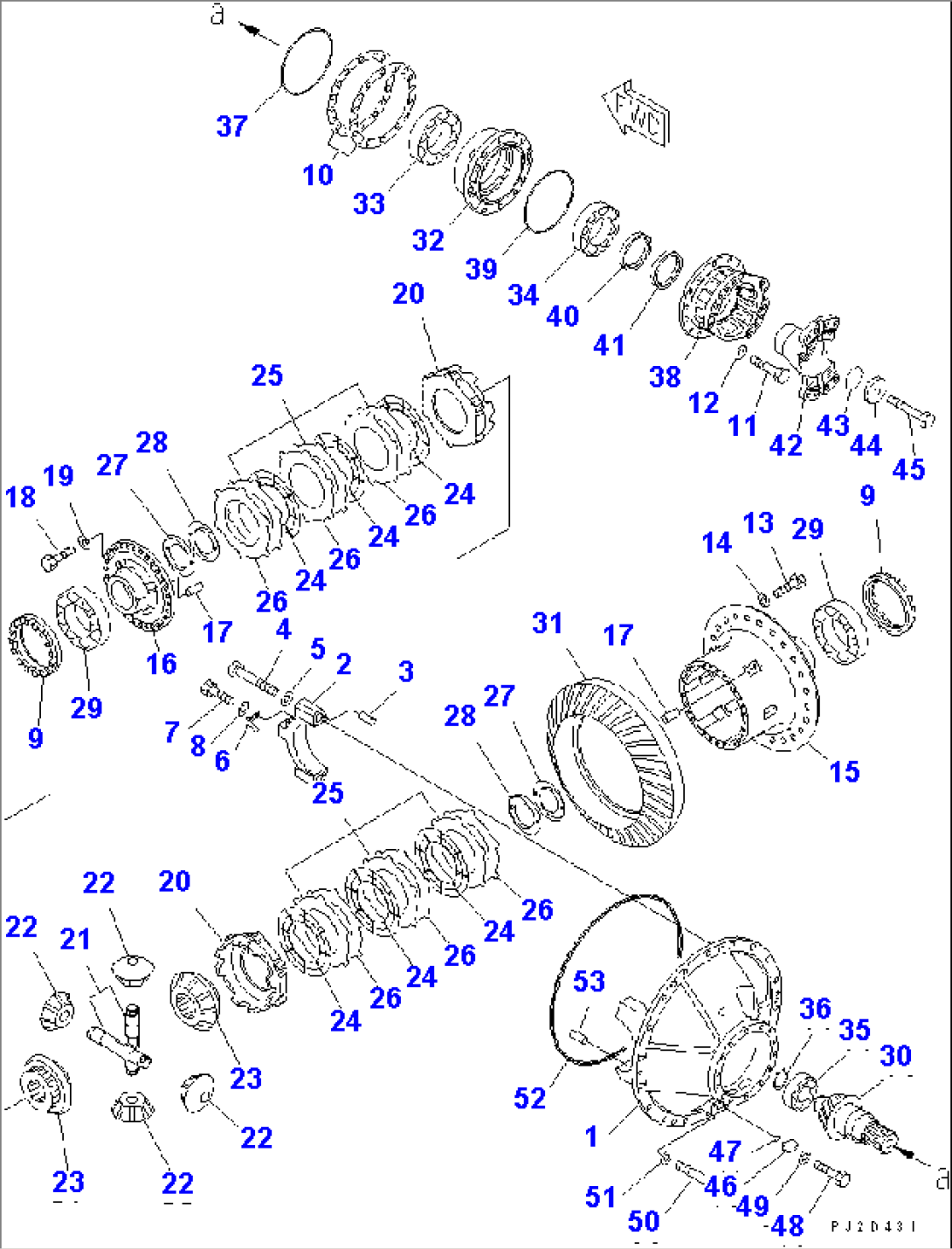

| Item | Part No. | Part Name | Qty | Serial No. |
| (426-22-20060) | FRONT AXLE ASS'Y | 52019- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A1A TO F4400-07A1. | ||||
| 426-22-21051 | DIFFERENTIAL ASS'Y | 52019- | ||
| 426-22-21190 | CARRIER ASS'Y | 52019- | ||
| 1 | \6\ | CARRIER | 52019- | |
| 2 | \6\ | CAP | 50001- | |
| 3 | 175-21-12180 | PIN,DOWEL | 50001- | |
| 4 | 01011-63060 | BOLT | 50001- | |
| 5 | 01643-33080 | WASHER | 50001- | |
| 6 | 426-22-11150 | LOCK | 50001- | |
| 7 | 01010-61230 | BOLT | .- | |
| 8 | 01643-31232 | WASHER | 50001- | |
| 9 | 287-22-11631 | NUT | 50001- | |
| 10 | 426-22-21370 | SHIM¤ 1.0MM | 50001- | |
| 426-22-21380 | SHIM¤ 0.3MM | 50001- | ||
| 426-22-21390 | SHIM¤ 0.2MM | 50001- | ||
| 11 | 01010-61665 | BOLT | .- | |
| 12 | 01643-31645 | WASHER | 50001- | |
| 13 | 01010-62060 | BOLT | 50001- | |
| 14 | 01643-32060 | WASHER | 50001- | |
| 426-22-27101 | DIFFERENTIAL ASS'Y | 50001- | ||
| 15 | 426-22-27111 | CASE | 50001- | |
| 16 | 426-22-27120 | COVER | 50001- | |
| 17 | 175-21-12180 | PIN | 50001- | |
| 18 | 01010-61445 | BOLT | 50001- | |
| 19 | 01643-31445 | WASHER | 50001- | |
| 20 | 426-22-27211 | RING,PRESSURE | 50001- | |
| 21 | 426-22-27220 | SHAFT | 50001- | |
| 22 | 426-22-27310 | PINION | 50001- | |
| 23 | 426-22-27320 | GEAR | 50001- | |
| 24 | 426-22-27412 | DISK | 50001- | |
| 25 | 426-22-27450 | PLATE | 50001- | |
| 26 | 426-22-27460 | PLATE | 50001- | |
| 27 | 426-22-27370 | WASHER | 50001- | |
| 28 | 426-22-27380 | WASHER,DOWEL | 50001- | |
| 29 | 569-22-11820 | BEARING | 50001- | |
| 426-22-21201 | GEAR ASS'Y | 50001- | ||
| 30 | \6\ | PINION | 50001- | |
| 31 | \6\ | GEAR,BEVEL | 50001- | |
| 32 | 426-22-21130 | CAGE | 50001- | |
| 33 | 426-22-21810 | BEARING | 50001- | |
| 34 | 426-22-21820 | BEARING | 50001- | |
| 35 | 426-22-21830 | BEARING | 50001- | |
| 36 | 04064-06020 | RING,SNAP | 50001- | |
| 37 | 07000-15240 | O-RING | 50001- | |
| 38 | 426-22-21320 | CAGE | 50001- | |
| 39 | 07000-15230 | O-RING | 50001- | |
| 40 | 07012-50110 | SEAL,OIL | 50001- | |
| 41 | 426-22-21760 | SEAL | 50001- | |
| 42 | 426-22-11230 | COUPLING | 50001- | |
| 43 | 07000-15075 | O-RING | 50001- | |
| 44 | 287-15-13621 | HOLDER | 50001- | |
| 45 | 01051-62440 | BOLT | 50001- | |
| 46 | 175-49-23680 | FRANGE | 52019- | |
| 47 | 07000-13032 | O-RING | 52019- | |
| 48 | 01010-81035 | BOLT | 52019- | |
| 49 | 01643-31032 | WASHER | 52019- | |
| 50 | 01010-62050 | BOLT | 50001- | |
| 51 | 01643-32060 | WASHER | 50001- | |
| 52 | 566-09-21110 | O-RING | 50001- | |
| 53 | 04020-01842 | PIN,DOWEL | 50001- |
