| Item | Part No. | Part Name | Qty | Serial No. |

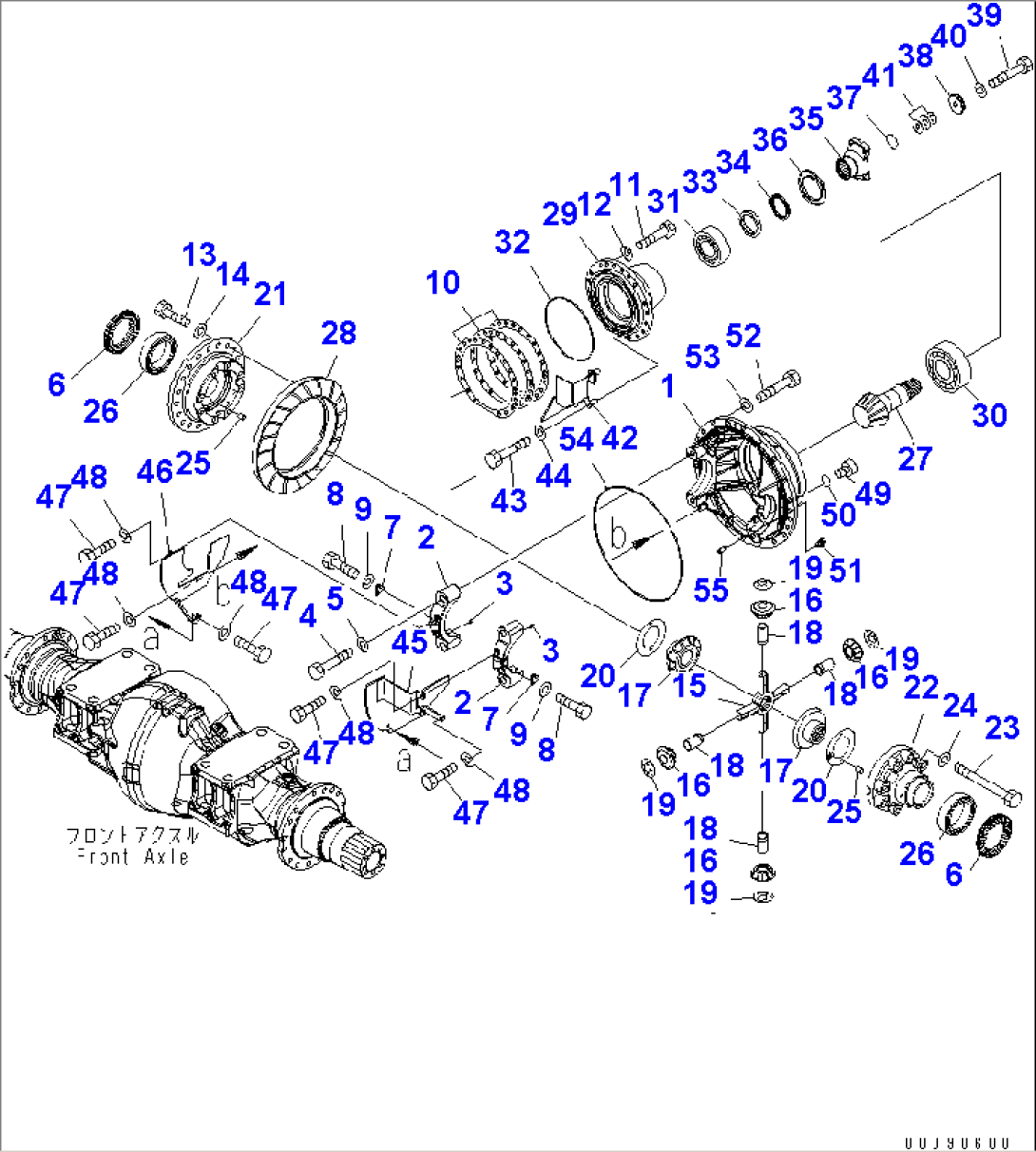

| (425-22-30011) | FRONT AXLE ASS'Y | 55482- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-07A0. | ||||
| 425-22-31011 | DIFFERENTIAL ASS'Y | 55482- | ||
| 425-22-31103 | CARRIER | 55482- | ||
| 1 | \6\ | CARRIER | 55482- | |
| 2 | \6\ | CAP | 55001- | |
| 3 | 175-21-12180 | PIN | 55001- | |
| 4 | 01011-63040 | BOLT | 55001- | |
| 5 | 01643-33080 | WASHER | 55001- | |
| 6 | 425-22-31140 | NUT | 55001- | |
| 7 | 425-22-31150 | PLATE | 55001- | |
| 8 | 01010-60820 | BOLT | 55001- | |
| 9 | 01643-30823 | WASHER | 55001- | |
| 10 | 425-22-31370 | SHIM,1.0MM | 55001- | |
| 10 | 425-22-31380 | SHIM,0.3MM | 55001- | |
| 10 | 425-22-31390 | SHIM,0.2MM | 55001- | |
| 10 | 425-22-31360 | SHIM,0.05MM | 55001- | |
| 11 | 01010-61655 | BOLT | 55001- | |
| 12 | 01643-31645 | WASHER | 55001- | |
| 13 | 01010-62055 | BOLT | 55001- | |
| 14 | 01643-32060 | WASHER | 55001- | |
| 15 | 425-22-31410 | SHAFT | 55001- | |
| 16 | 425-22-31450 | PINION | 55001- | |
| 17 | 425-22-31431 | GEAR | 55001- | |
| 18 | 425-22-31680 | BUSHING | 55001- | |
| 19 | 425-22-31691 | WASHER | 55001- | |
| 20 | 425-22-31530 | WASHER | 55001- | |
| 425-22-31501 | CASE ASS'Y | 55001- | ||
| 21 | \6\ | CASE | 55001- | |
| 22 | \6\ | CASE | 55001- | |
| 23 | 01011-62040 | BOLT | 55001- | |
| 24 | 01643-32060 | WASHER | 55001- | |
| 25 | 175-21-12180 | PIN | 55001- | |
| 26 | 425-22-31850 | BEARING | 55001- | |
| 425-22-31201 | GEAR ASS'Y | 55001- | ||
| 27 | \6\ | PINION | 55001- | |
| 28 | \6\ | GEAR | 55001- | |
| 29 | 425-22-31131 | CAGE | 55482- | |
| 30 | 426-22-31820 | BEARING | 55001- | |
| 31 | 421-22-31820 | BEARING | 55001- | |
| 32 | 07000-15310 | O-RING | 55001- | |
| 33 | 421-22-31771 | SEAL | 55001- | |
| 34 | 421-22-31761 | SEAL | 55001- | |
| 35 | 425-22-31230 | COUPLING | 55001- | |
| 36 | 421-22-31310 | PROTECTOR | 55001- | |
| 37 | 07000-15065 | O-RING | 55001- | |
| 38 | 425-22-31240 | HOLDER | 55001- | |
| 39 | 01051-62445 | BOLT | 55001- | |
| 40 | 01643-32460 | WASHER | 55001- | |
| 41 | 425-22-31570 | SHIM,0.05MM | 55001- | |
| 41 | 425-22-31580 | SHIM,0.2MM | 55001- | |
| 41 | 425-22-31590 | SHIM,0.5MM | 55001- | |
| 42 | 425-22-41250 | COVER | 55482- | |
| 43 | 01010-61060 | BOLT | 55482- | |
| 44 | 01643-31032 | WASHER | 55482- | |
| 45 | 425-22-41260 | COVER | 55482- | |
| 46 | 425-22-41271 | COVER | 55482- | |
| 47 | 01010-61025 | BOLT | 55482- | |
| 48 | 01643-31032 | WASHER | 55482- | |
| 49 | 07040-13316 | PLUG | 55001- | |
| 50 | 07002-13334 | O-RING | 55001- | |
| 51 | 287-35-11470 | PLUG | 55001- | |
| 52 | 01010-62050 | BOLT | 55001- | |
| 53 | 01643-32060 | WASHER | 55001- | |
| 54 | 14X-27-11170 | O-RING | 55001- | |
| 55 | 04020-01638 | PIN | 55001- |
