| Item | Part No. | Part Name | Qty | Serial No. |

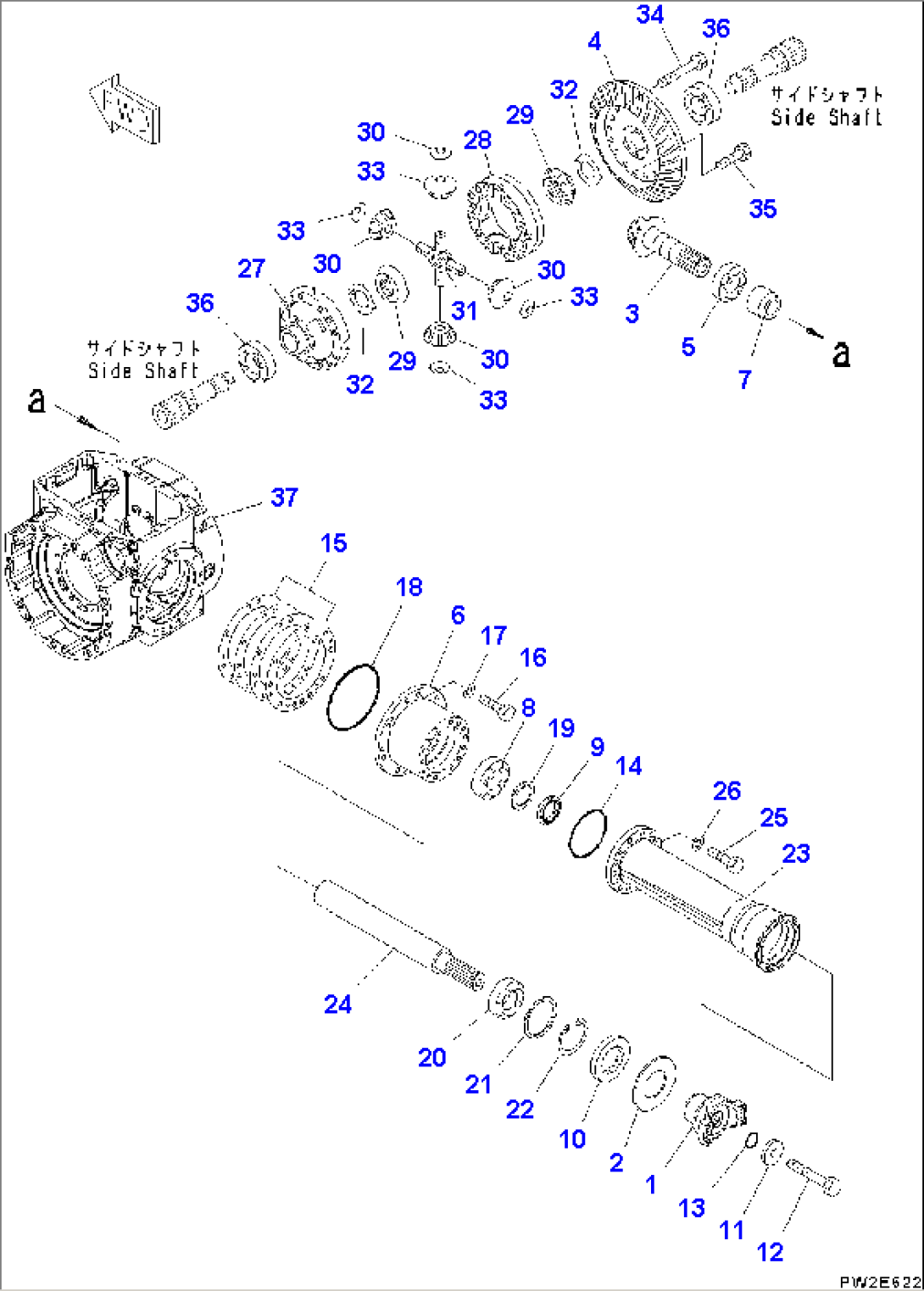

| 418-22-30100 | Axle Assembly,Front | C10001- | ||
| 1 | 418-23-31231 | Coupling | C10001- | |
| 2 | 418-22-21310 | Protector | C10001- | |
| 418-22-31201 | Pinion | C10001- | ||
| 3 | Pinion | C10001- | ||
| 4 | Gear, Bevel | C10001- | ||
| 5 | 418-22-11810 | Bearing | C10001- | |
| 6 | 418-22-31141 | Cage | C10001- | |
| 7 | 418-22-31861 | Spacer | C10001- | |
| 8 | 419-22-11820 | Bearing | C10001- | |
| 9 | 418-22-31990 | Nut | C10001- | |
| 10 | 418-22-21330 | Seal, Oil | C10001- | |
| 11 | 417-15-13770 | Holder | C10001- | |
| 12 | 01011-61615 | Bolt | C10001- | |
| 13 | 07000-13042 | O-ring | C10001- | |
| 14 | 07000-15115 | O-ring | C10001- | |
| 15 | 417-22-11361 | Shim, T=0.05mm | C10001- | |
| 417-22-11371 | Shim, T=0.2mm | C10001- | ||
| 417-22-11381 | Shim, T=0.3mm | C10001- | ||
| 417-22-11391 | Shim, T=0.8mm | C10001- | ||
| 16 | 01010-61235 | Bolt | C10001- | |
| 17 | 01643-31232 | Washer | C10001- | |
| 18 | 07000-15160 | O-ring | C10001- | |
| 19 | 418-22-31980 | Holder | C10001- | |
| 20 | 06301-06310 | Bearing | C10001- | |
| 21 | 418-22-31970 | Ring | C10001- | |
| 22 | 04065-01104 | Ring | C10001- | |
| 23 | 418-22-31851 | Cage | C10001- | |
| 24 | 418-22-31921 | Shaft | C10001- | |
| 25 | 01010-61240 | Bolt | C10001- | |
| 26 | 01643-31232 | Washer | C10001- | |
| 418-22-31502 | Case Assembly | C10001- | ||
| 27 | 418-22-31512 | Case | C10001- | |
| 28 | 418-22-31521 | Case | C10001- | |
| 29 | 418-22-31430 | Gear | C10001- | |
| 30 | 419-22-11421 | Pinion | C10001- | |
| 31 | 418-22-31410 | Spider | C10001- | |
| 32 | 418-22-31460 | Washer | C10001- | |
| 33 | 418-22-31550 | Washer | C10001- | |
| 34 | 01010-61695 | Bolt | C10001- | |
| 35 | 01010-61645 | Bolt | C10001- | |
| 36 | 417-22-12840 | Bearing | C10001- | |
| 37 | 418-22-33121 | Housing | C10001- |
