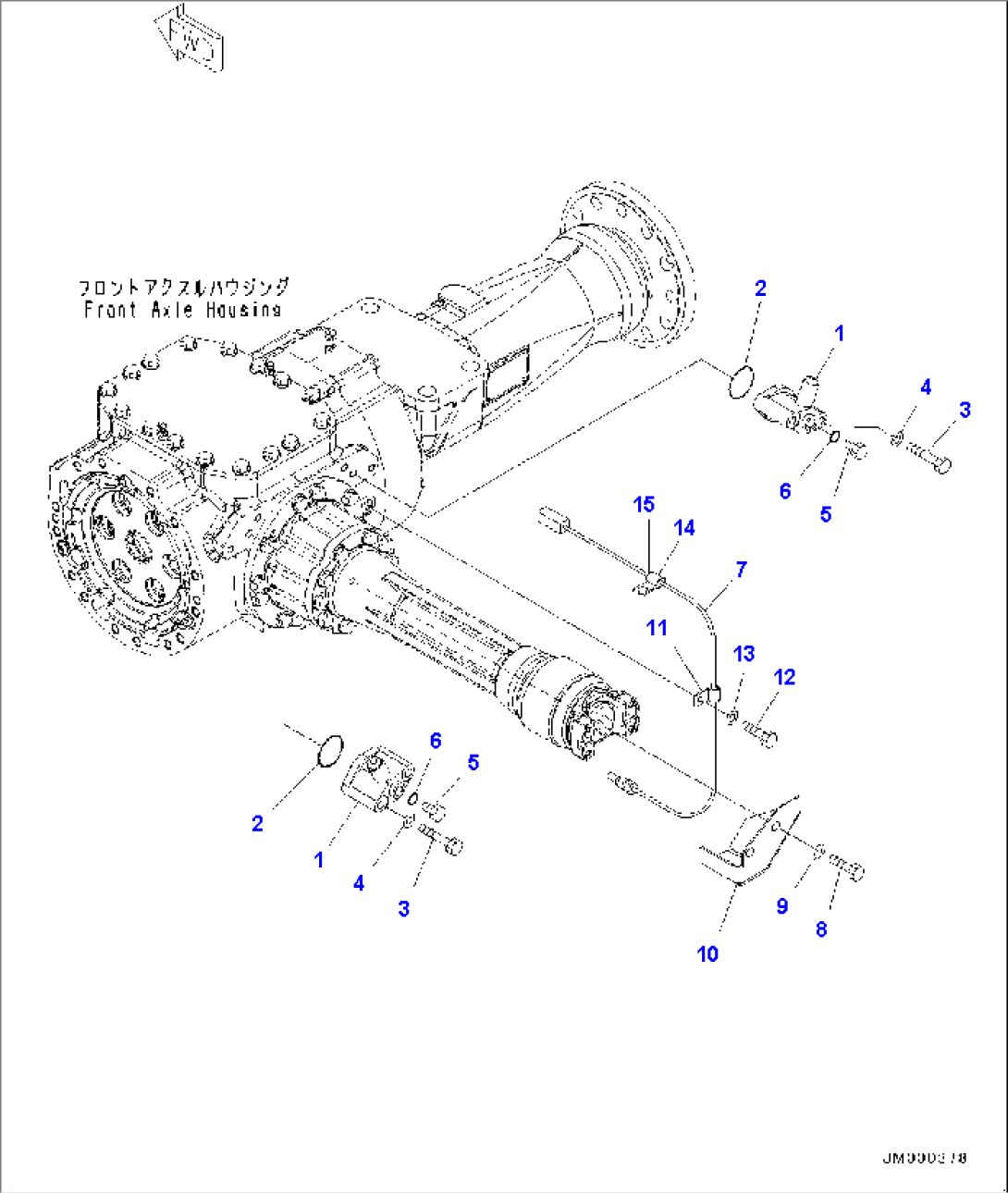

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-22-30101 | Axle Assembly | 80001- | ||
| 417-22-31010 | Differential Assembly | 80001- | ||
| 1 | 07044-12412 | Plug | 80001- | |
| 2 | 07002-12434 | O-ring | 80001- | |
| 3 | 07041-13612 | Plug | 80001- | |
| 4 | 07002-13634 | O-ring | 80001- | |
| 5 | 419-33-11460 | Bleeder | 80001- | |
| 6 | 417-22-33140 | Cover | 80001- | |
| 7 | 01010-61230 | Bolt | 80001- | |
| 8 | 01643-31232 | Washer | 80001- | |
| 9 | 566-32-11620 | Cap | 80001- | |
| 10 | 417-22-31160 | Carrier | 80001- | |
| 11 | 417-22-31460 | Shim, T=0.05mm | 80001- | |
| 11 | 417-22-31470 | Shim, T=0.2mm | 80001- | |
| 11 | 417-22-31480 | Shim, T=0.3mm | 80001- | |
| 11 | 417-22-31490 | Shim, T=0.8mm | 80001- | |
| 12 | 417-33-31430 | Ring | 80001- | |
| 13 | 01010-61040 | Bolt | 80001- | |
| 14 | 01643-31032 | Washer | 80001- | |
| 15 | 417-33-31420 | Seal | 80001- |
