| Item | Part No. | Part Name | Qty | Serial No. |
| (42A-22-20500) | FRONT AXLE ASS'Y | 23001- | ||

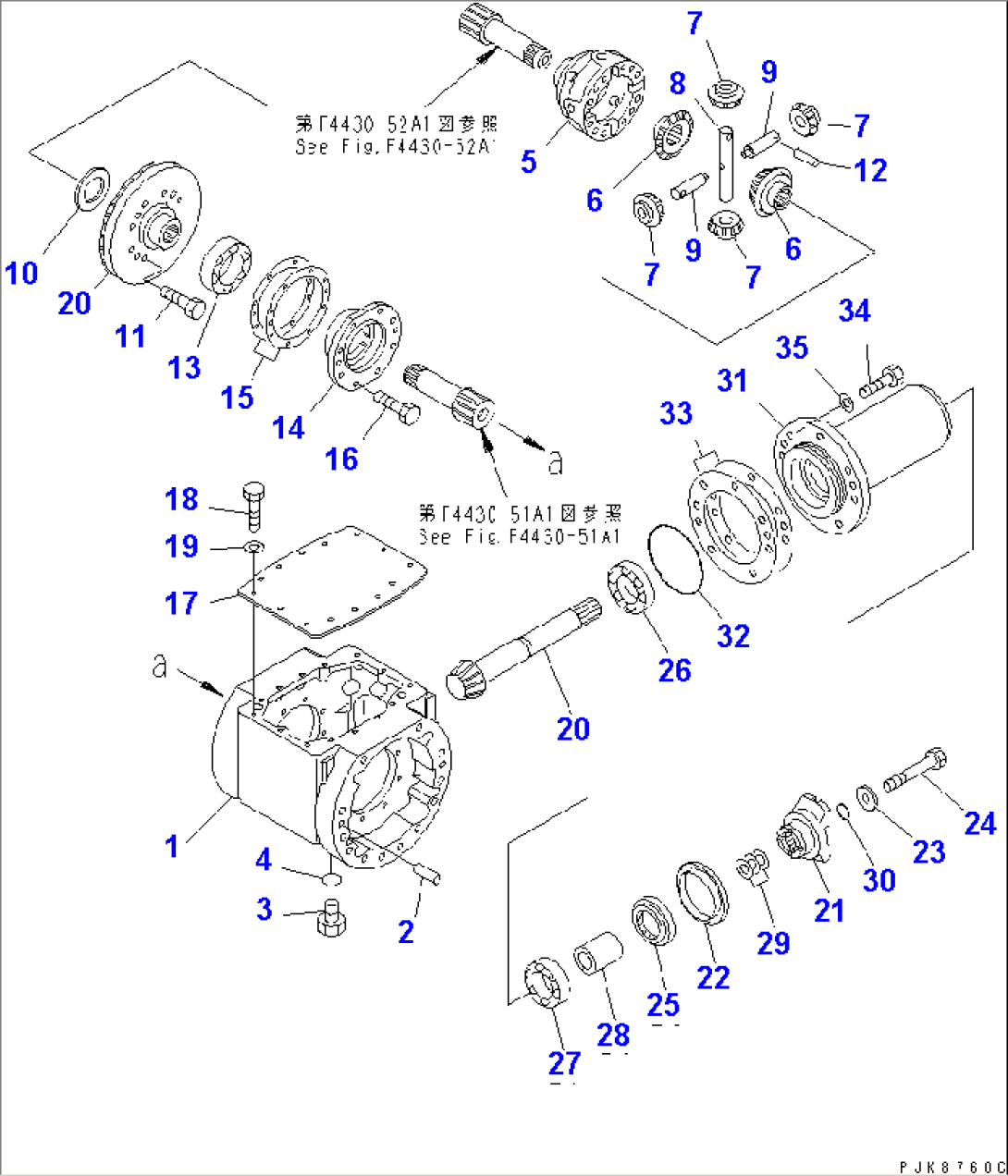

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4430-51A1 TO F4430-53A1. | ||||
| 363-22-31020 | DIFFERENTIAL ASS'Y | 23001- | ||
| 1 | 363-22-33110 | HOUSING | 23001- | |
| 2 | 04020-01024 | PIN,DOWEL | 23001- | |
| 3 | 07044-12412 | PLUG | 23001- | |
| 4 | 07002-12434 | O-RING | 23001- | |
| 5 | 363-22-31510 | CARRIER | 23001- | |
| 6 | 363-22-31430 | GEAR | 23001- | |
| 7 | 363-22-31420 | PINION | 23001- | |
| 8 | 363-22-31440 | SHAFT | 23001- | |
| 9 | 363-22-31450 | SHAFT | 23001- | |
| 10 | 363-22-31530 | WASHER | 23001- | |
| 11 | 01010-61030 | BOLT | 23001- | |
| 12 | 363-22-31521 | PIN | 23001- | |
| 13 | 363-22-31830 | BEARING | 23001- | |
| 14 | 363-22-31160 | CARRIER | 23001- | |
| 15 | 363-22-31460 | SHIM, 0.8MM | 23001- | |
| 15 | 363-22-31470 | SHIM, 0.05MM | 23001- | |
| 15 | 363-22-31480 | SHIM, 0.2MM | 23001- | |
| 15 | 363-22-31490 | SHIM, 0.3MM | 23001- | |
| 16 | 01010-60825 | BOLT | 23001- | |
| 17 | 363-22-33120 | COVER | 23001- | |
| 18 | 01010-60820 | BOLT | 23001- | |
| 19 | 01643-30823 | WASHER | 23001- | |
| 20 | 363-22-31400 | PINION ASS'Y | 23001- | |
| 20 | \6\ | GEAR | 23001- | |
| 20 | \6\ | PINION | 23001- | |
| 21 | 363-22-31230 | COUPLING | 23001- | |
| 22 | 363-22-31310 | PROTECTOR | 23001- | |
| 23 | 363-22-31240 | HOLDER | 23001- | |
| 24 | 01010-31070 | BOLT | 23001- | |
| 25 | 363-22-31250 | SEAL,OIL | 23001- | |
| 26 | 415-22-11811 | BEARING | 23001- | |
| 27 | 363-22-31820 | BEARING | 23001- | |
| 28 | 363-22-31260 | SPACER | 23001- | |
| 29 | 363-22-31560 | SHIM, 0.05MM | 23001- | |
| 29 | 363-22-31570 | SHIM, 0.18MM | 23001- | |
| 29 | 363-22-31580 | SHIM, 0.2MM | 23001- | |
| 29 | 363-22-31590 | SHIM, 0.5MM | 23001- | |
| 30 | 07000-13025 | O-RING | 23001- | |
| 31 | 363-22-31130 | CAGE | 23001- | |
| 32 | 07000-12105 | O-RING | 23001- | |
| 33 | 363-22-31370 | SHIM, 0.05MM | 23001- | |
| 33 | 363-22-31380 | SHIM, 0.2MM | 23001- | |
| 33 | 363-22-31390 | SHIM, 0.5MM | 23001- | |
| 34 | 01010-31235 | BOLT | 23001- | |
| 35 | 01643-31232 | WASHER | 23001- |
