| Item | Part No. | Part Name | Qty | Serial No. |
| (\0\417-22-20001) | AXLE ASS'Y,FRONT | 50001-51000 | ||

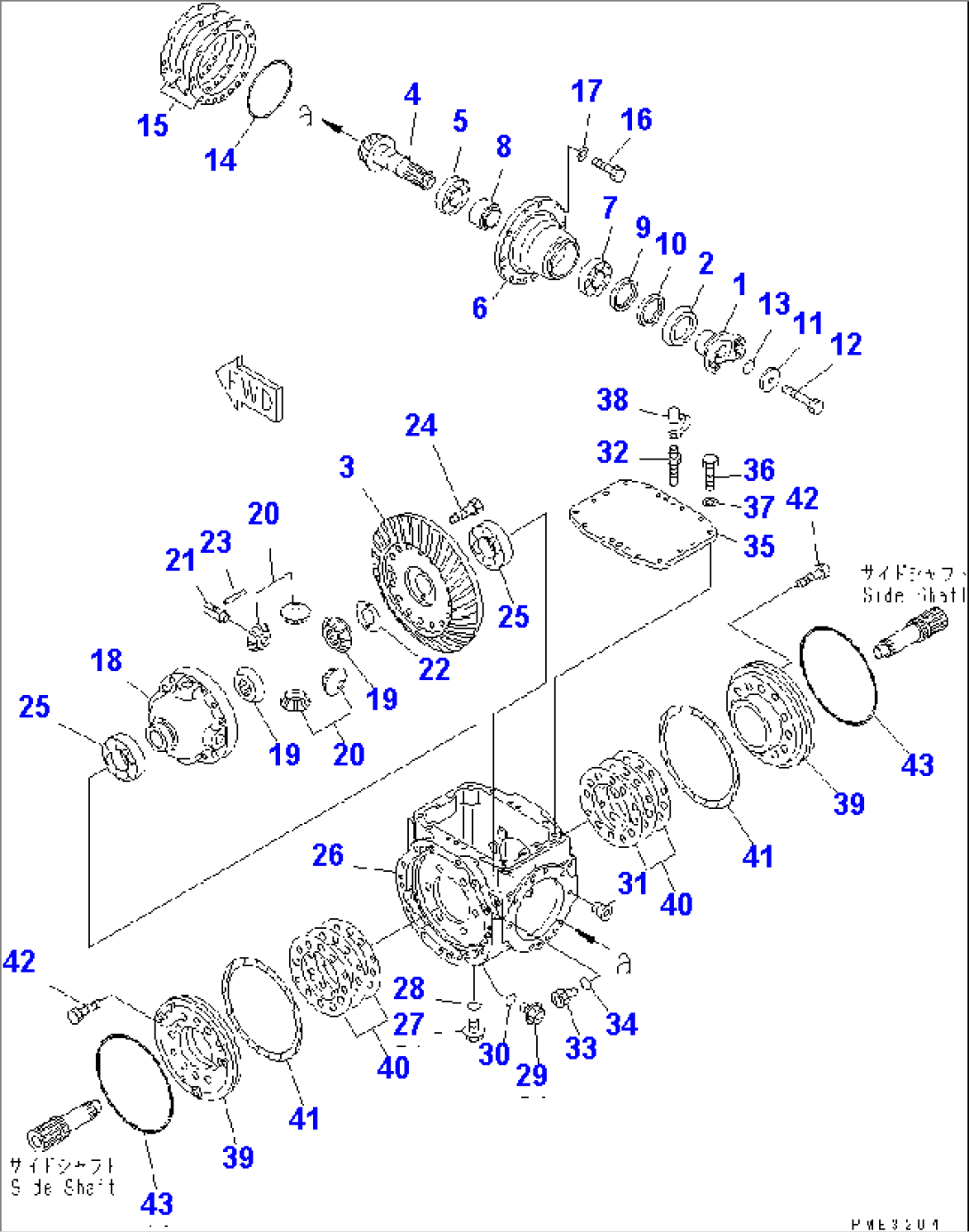

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||
| 417-23-31260 | COUPLING ASS'Y | 50001-@ | ||
| 1 | \6\ | COUPLING | 50001-@ | |
| 2 | \6\ | PROTECTOR | 50001-@ | |
| 417-22-21200 | PINION ASS'Y | 50001-@ | ||
| 3 | \6\ | GEAR | 50001-@ | |
| 4 | \6\ | PINION | 50001-@ | |
| 5 | 417-22-11810 | BEARING | 50001-@ | |
| 6 | 417-22-21130 | CAGE | 50001-@ | |
| 7 | 417-22-11820 | BEARING | 50001-@ | |
| 8 | 417-22-11860 | SPACER | 50001-@ | |
| 9 | 07012-00065 | SEAL | 50001-@ | |
| 10 | 417-22-21760 | SEAL | 50001-@ | |
| 11 | 417-15-13770 | HOLDER | 50001-@ | |
| 12 | 01011-61615 | BOLT | 50001-@ | |
| 13 | 07000-13035 | O-RING | 50001-@ | |
| 14 | 07000-15160 | O-RING | 50001-@ | |
| 15 | 417-22-11360 | SHIM, 0.05MM | 50001-@ | |
| 15 | 417-22-11370 | SHIM, 0.2MM | 50001-@ | |
| 15 | 417-22-11380 | SHIM, 0.3MM | 50001-@ | |
| 15 | 417-22-11390 | SHIM, 0.8MM | 50001-@ | |
| 16 | 01010-31235 | BOLT | 50001-@ | |
| 17 | 01643-31232 | WASHER | 50001-@ | |
| 18 | 417-22-11513 | CARRIER | 50001-51000 | |
| 19 | 417-22-11432 | GEAR | 50001-@ | |
| 20 | 417-22-11420 | PINION | 50001-@ | |
| 21 | 417-22-11410 | SHAFT | 50001-51000 | |
| 22 | 417-22-11530 | WASHER | 50001-51000 | |
| 23 | 417-22-11442 | PIN | 50001-51000 | |
| 24 | 01010-31645 | BOLT | 50001-51000 | |
| 25 | 417-22-11850 | BEARING | 50001-@ | |
| 26 | 417-22-13113 | HOUSING | 50001-@ | |
| 27 | 07044-13620 | PLUG | 50001-@ | |
| 28 | 07002-13634 | O-RING | 50001-@ | |
| 29 | 419-22-13140 | PLUG | 50001-@ | |
| 30 | 07002-13034 | O-RING | 50001-@ | |
| 31 | 07043-70211 | PLUG | 50001-@ | |
| 32 | 419-33-11460 | BLEEDER | 50001-@ | |
| 33 | 07040-11209 | PLUG | 50001-@ | |
| 34 | 07002-11223 | O-RING | 50001-@ | |
| 35 | 417-22-13121 | COVER | 50001-@ | |
| 36 | 01010-31230 | BOLT | 50001-@ | |
| 37 | 01643-31232 | WASHER | 50001-@ | |
| 38 | 566-32-11620 | CAP | 50001-@ | |
| 39 | 417-22-11162 | CARRIER | 50001-@ | |
| 40 | 417-22-11461 | SHIM, 0.07MM | 50001-@ | |
| 40 | 417-22-11471 | SHIM, 0.2MM | 50001-@ | |
| 40 | 417-22-11481 | SHIM, 0.3MM | 50001-@ | |
| 40 | 417-22-11491 | SHIM, 0.8MM | 50001-@ | |
| 41 | 417-33-11430 | RING | 50001-@ | |
| 42 | 01010-31230 | BOLT | 50001-@ | |
| 43 | 417-33-11420 | O-RING | 50001-@ |
