| Item | Part No. | Part Name | Qty | Serial No. |
| 417-22-20001 | AXLE ASS'Y,FRONT | 63001- | ||
| 417-22-20050 | AXLE ASS'Y,FRONT (LIMITED SLIP DIFF.) | 63001- | ||

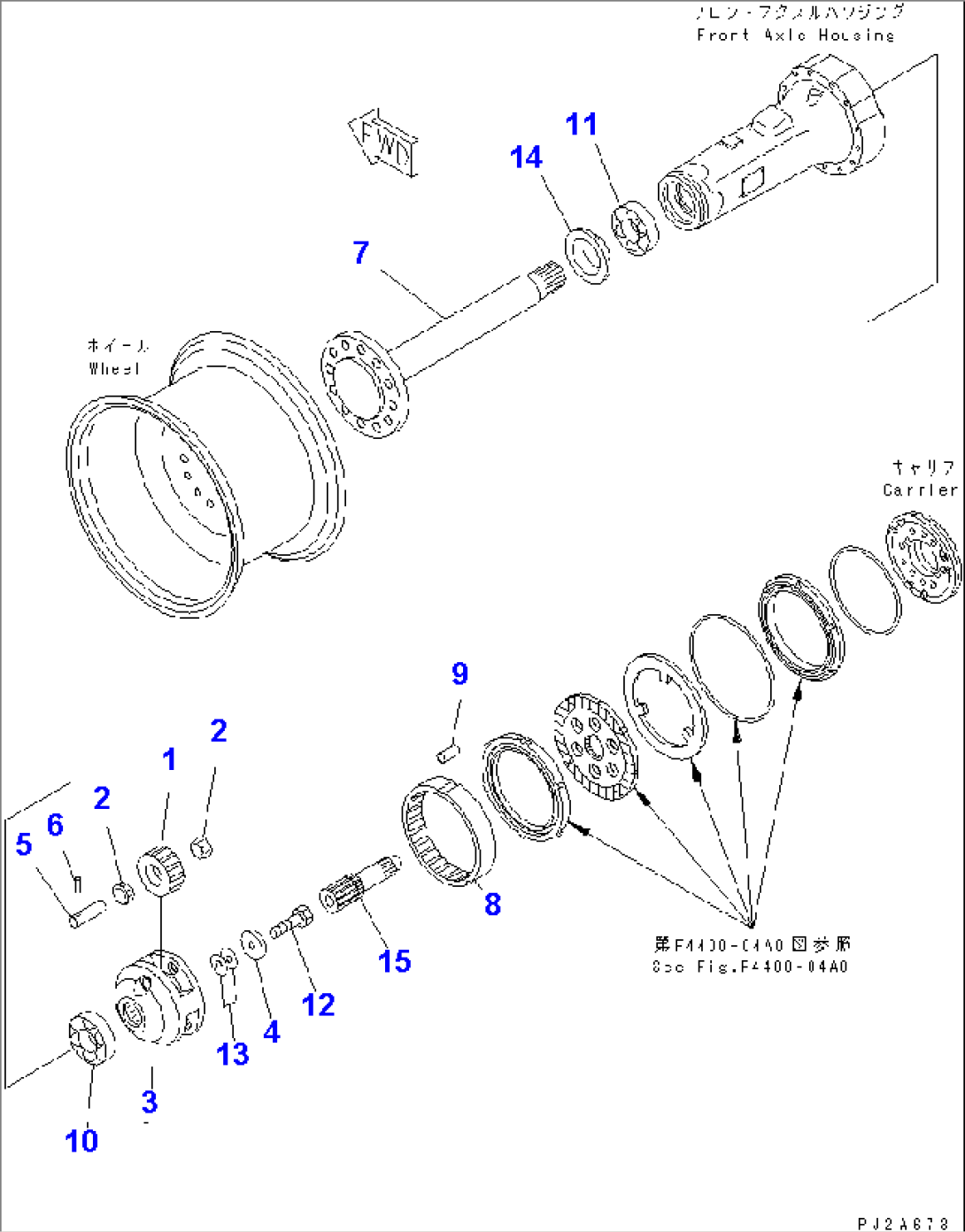

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||
| 1 | 417-22-22530 | GEAR | 63001- | |
| 2 | 417-22-22810 | BEARING | 63001- | |
| 3 | 417-22-22610 | CARRIER | 63001- | |
| 4 | 417-22-12350 | SPACER | 63001- | |
| 5 | 417-22-12510 | SHAFT | 63001- | |
| 6 | 419-22-12570 | PIN | 63001- | |
| 7 | 417-22-22410 | SHAFT | 63001- | |
| 8 | 417-22-12540 | GEAR | 63001- | |
| 9 | 417-22-12580 | PIN | 63001- | |
| 10 | 417-22-12840 | BEARING | 63001- | |
| 11 | 417-22-12850 | BEARING | 63001- | |
| 12 | 01010-61685 | BOLT | 63001- | |
| 13 | 417-22-12360 | SHIM¤ 0.05MM | 63001- | |
| 417-22-12370 | SHIM¤ 0.2MM | 63001- | ||
| 417-22-12380 | SHIM¤ 0.3MM | 63001- | ||
| 417-22-12390 | SHIM¤ 0.8MM | 63001- | ||
| 14 | 417-22-12460 | SEAL | 63001- | |
| 15 | 417-22-12421 | SHAFT | 63001- |
