| Item | Part No. | Part Name | Qty | Serial No. |
| 415-22-20001 | AXLE ASS'Y,FRONT | 10001- | ||

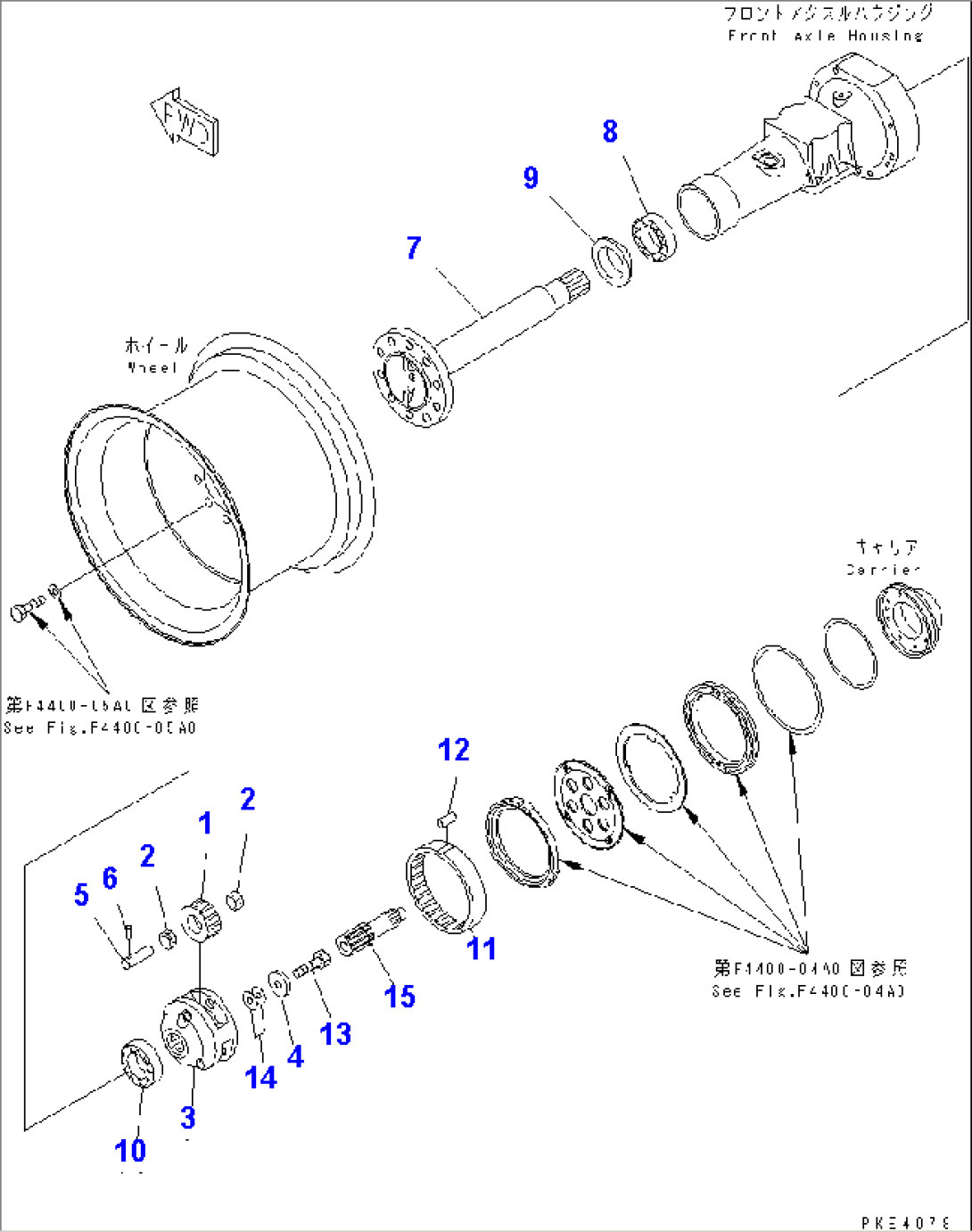

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||
| 415-22-22001 | FINAL DRIVE ASS'Y | 10001- | ||
| 1 | 415-22-12531 | GEAR | 10001- | |
| 2 | 415-22-12811 | BEARING,CONE | 10001- | |
| 3 | 415-22-12611 | CARRIER | 10001- | |
| 4 | 415-22-12351 | HOLDER | 10001- | |
| 5 | 415-22-12512 | SHAFT | 10001- | |
| 6 | 04025-00616 | PIN,SPRING | 10001- | |
| 7 | 415-22-22411 | SHAFT | 10001- | |
| 8 | 20G-22-11540 | BEARING | 10001- | |
| 20G-22-11550 | CONE | 10001- | ||
| 20G-22-11560 | CUP | 10001- | ||
| 9 | 415-22-12460 | SEAL | 10001- | |
| 10 | 415-22-12840 | BEARING | 10001- | |
| 11 | 415-22-12540 | GEAR | 10001- | |
| 12 | 415-22-12581 | PIN | 10001- | |
| 13 | 01010-61250 | BOLT | 10001- | |
| 14 | 415-22-12360 | SHIM¤ 0.05MM | 10001- | |
| 415-22-12370 | SHIM¤ 0.2MM | 10001- | ||
| 415-22-12380 | SHIM¤ 0.3MM | 10001- | ||
| 415-22-12390 | SHIM¤ 0.8MM | 10001- | ||
| 15 | 415-22-12421 | SHAFT | 10001- |
