| Item | Part No. | Part Name | Qty | Serial No. |
| 427-22-20001 | AXLE ASS'Y,FRONT | 50001- | ||
| 427-22-20070 | AXLE ASS'Y | 50001- | ||

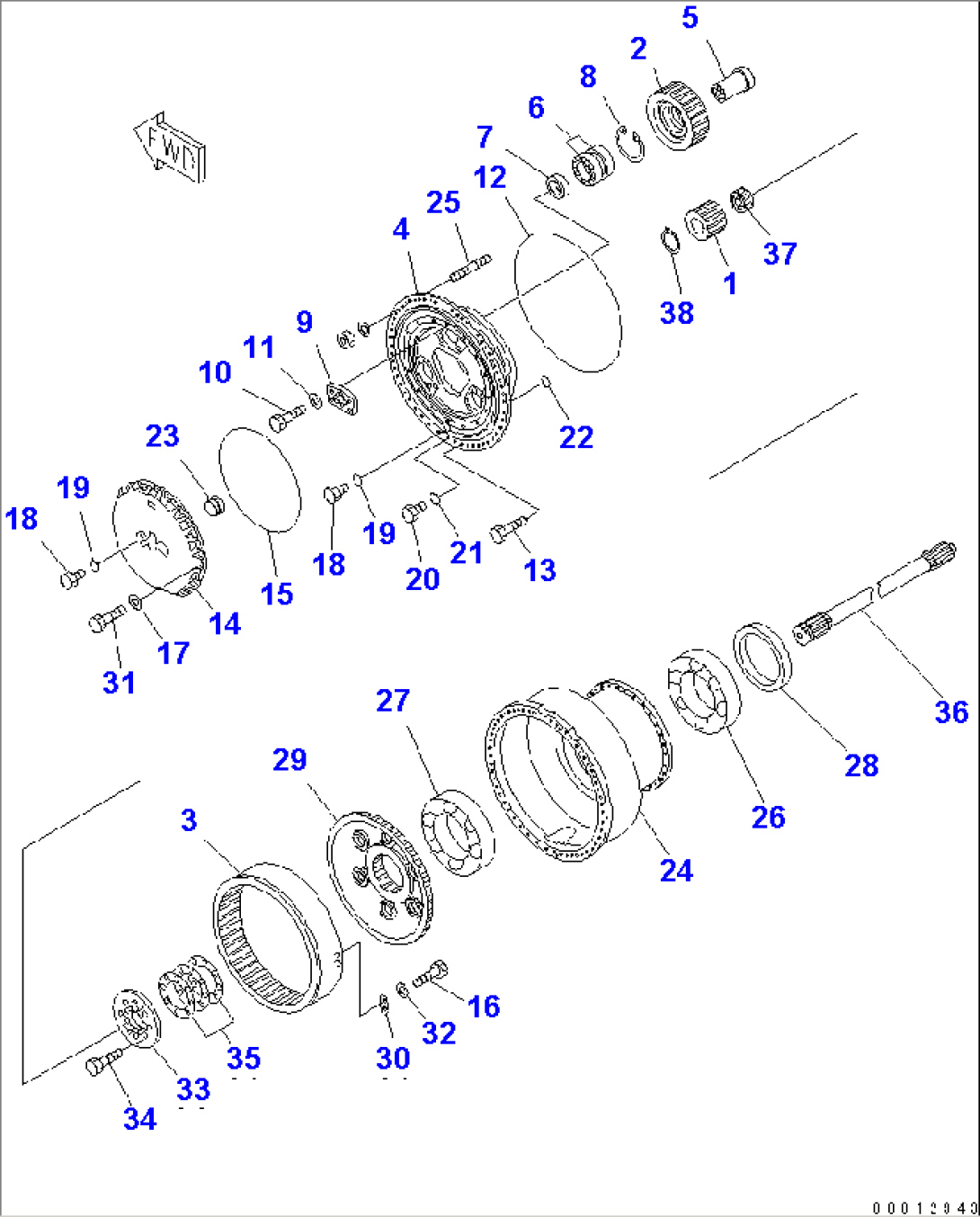

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-07A0. | ||||
| 427-22-12002 | FINAL DRIVE ASS'Y | 50001- | ||
| 1 | 427-22-12421 | GEAR | 50001- | |
| 2 | 427-22-12530 | GEAR | 50001- | |
| 3 | 427-22-12541 | GEAR | 50001- | |
| 4 | 427-22-12611 | CARRIER | 50001- | |
| 5 | 427-22-12511 | SHAFT | 50001- | |
| 6 | 427-22-12520 | BEARING | 50001- | |
| 7 | 427-22-12570 | SPACER | 50001- | |
| 8 | 04071-00180 | RING,SNAP | 50001- | |
| 9 | 427-22-12560 | HOLDER | 50001- | |
| 10 | 01010-31660 | BOLT | 50001- | |
| 11 | 01643-31645 | WASHER | 50001- | |
| 12 | 562-22-12920 | O-RING | 50001- | |
| 13 | 01252-31225 | BOLT | 50001- | |
| 14 | 427-22-12623 | COVER | 50001- | |
| 15 | 281-09-11110 | O-RING | 50001- | |
| 16 | 427-22-12590 | BOLT | 50001- | |
| 17 | 01643-31232 | WASHER | 50001- | |
| 18 | 07044-13620 | PLUG | 50001- | |
| 19 | 07002-13634 | O-RING | 50001- | |
| 20 | 07044-12412 | PLUG | 50001- | |
| 21 | 07002-12434 | O-RING | 50001- | |
| 22 | 07000-13028 | O-RING | 50001- | |
| 23 | 562-22-12630 | BUTTON | 50001- | |
| 24 | 427-22-12713 | HUB | 51002- | |
| \0\427-22-12712 | HUB | 50001-51001 | ||
| 25 | 01145-62405 | STUD | 50001- | |
| 26 | 568-22-12940 | BEARING | 50001- | |
| 27 | 568-22-12960 | BEARING | 50001- | |
| 28 | 427-22-12130 | RETAINER | 50001- | |
| 29 | 561-22-62311 | HUB | 50001- | |
| 30 | 427-22-12340 | HOLDER | 50001- | |
| 31 | 01010-61235 | BOLT | .- | |
| \0\01010-31235 | BOLT | 50001-. | ||
| 32 | 01643-31232 | WASHER | 50001- | |
| 33 | 427-22-12211 | RETAINER | 50001- | |
| 34 | 01010-62495 | BOLT | 50001- | |
| 35 | 427-22-12230 | SHIM¤ 1.0MM | 50001- | |
| 427-22-12240 | SHIM¤ 0.3MM | 50001- | ||
| 427-22-12250 | SHIM¤ 0.2MM | 50001- | ||
| 36 | 427-22-12411 | SHAFT | 50001- | |
| 37 | 427-22-12430 | SPACER | 50001- | |
| 38 | 561-22-32810 | RING,SNAP | 50001- |
