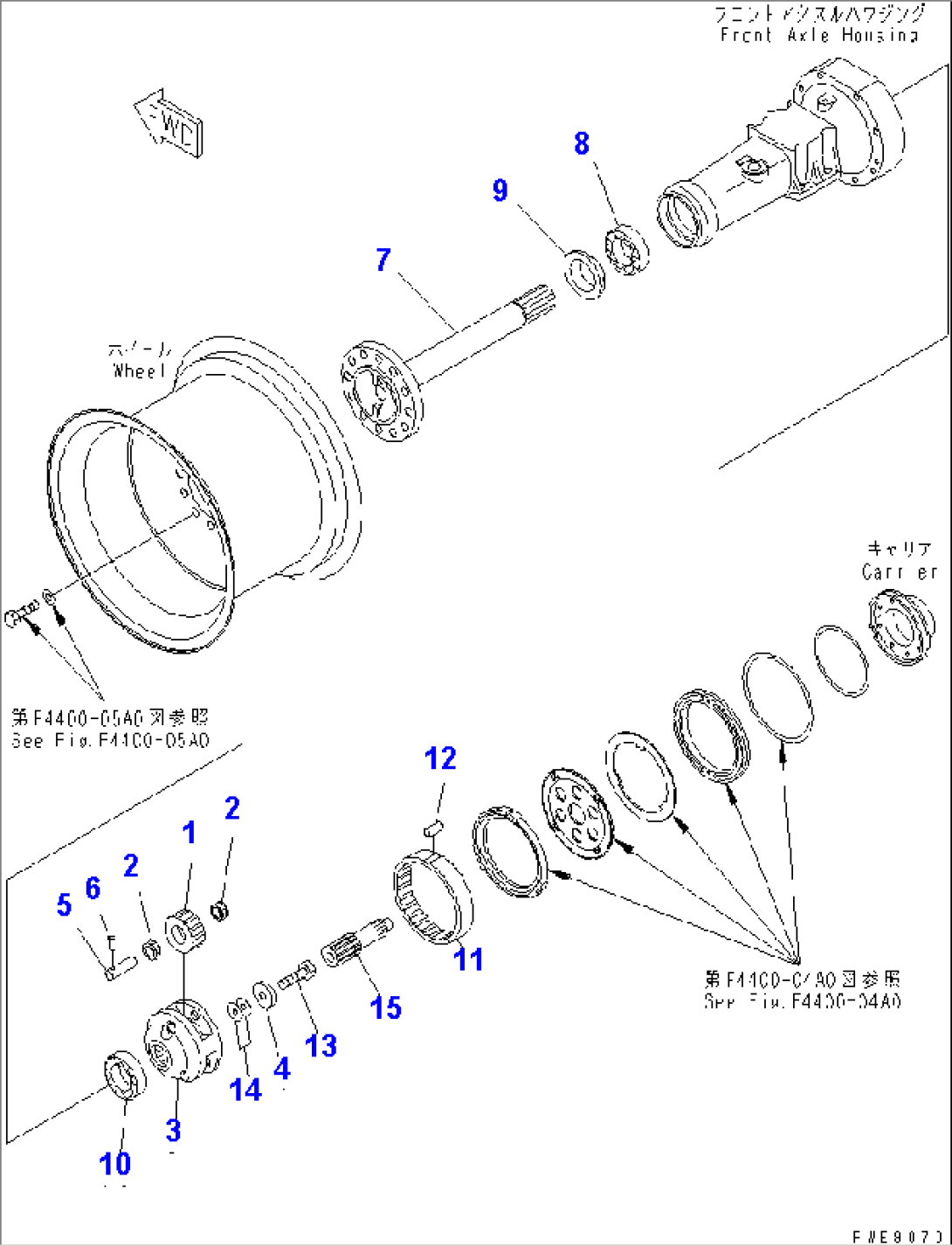

| Item | Part No. | Part Name | Qty | Serial No. |
| 415-22-21001 | AXLE,FRONT | 10041- | ||
| \0\415-22-21000 | AXLE,FRONT | 10001-10040 | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||
| 1 | 415-22-22530 | GEAR | 10001- | |
| 2 | 415-22-12811 | BEARING | 10001- | |
| 3 | 415-22-22611 | CARRIER | 10001- | |
| 4 | 415-22-12351 | HOLDER | 10001- | |
| 5 | 415-22-12512 | SHAFT | 10001- | |
| 6 | 04025-00616 | PIN,SPRING | 10001- | |
| 7 | 415-22-22450 | SHAFT | 10001- | |
| 8 | 415-22-22810 | BEARING | 10001- | |
| 9 | 415-22-22830 | SEAL | 10001- | |
| 10 | 415-22-22820 | BEARING | 10001- | |
| 11 | 415-22-22540 | GEAR | 10001- | |
| 12 | 415-22-22580 | PIN | 10001- | |
| 13 | 01010-61250 | BOLT | 10001- | |
| 14 | 415-22-12360 | SHIMä 0.05MM | 10001- | |
| 415-22-12370 | SHIMä 0.2MM | 10001- | ||
| 415-22-12380 | SHIMä 0.3MM | 10001- | ||
| 415-22-12390 | SHIMä 0.8MM | 10001- | ||
| 15 | 415-22-22420 | SHAFT | 10001- |
