| Item | Part No. | Part Name | Qty | Serial No. |
| 418-22-30011 | AXLE ASS'Y,FRONT | 70001- | ||
| 418-22-30011K1 | AXLE ASS'Y,FRONT | 70001- | ||
| 418-22-30060 | AXLE ASS'Y,FRONT (ASD) | 70001- | ||

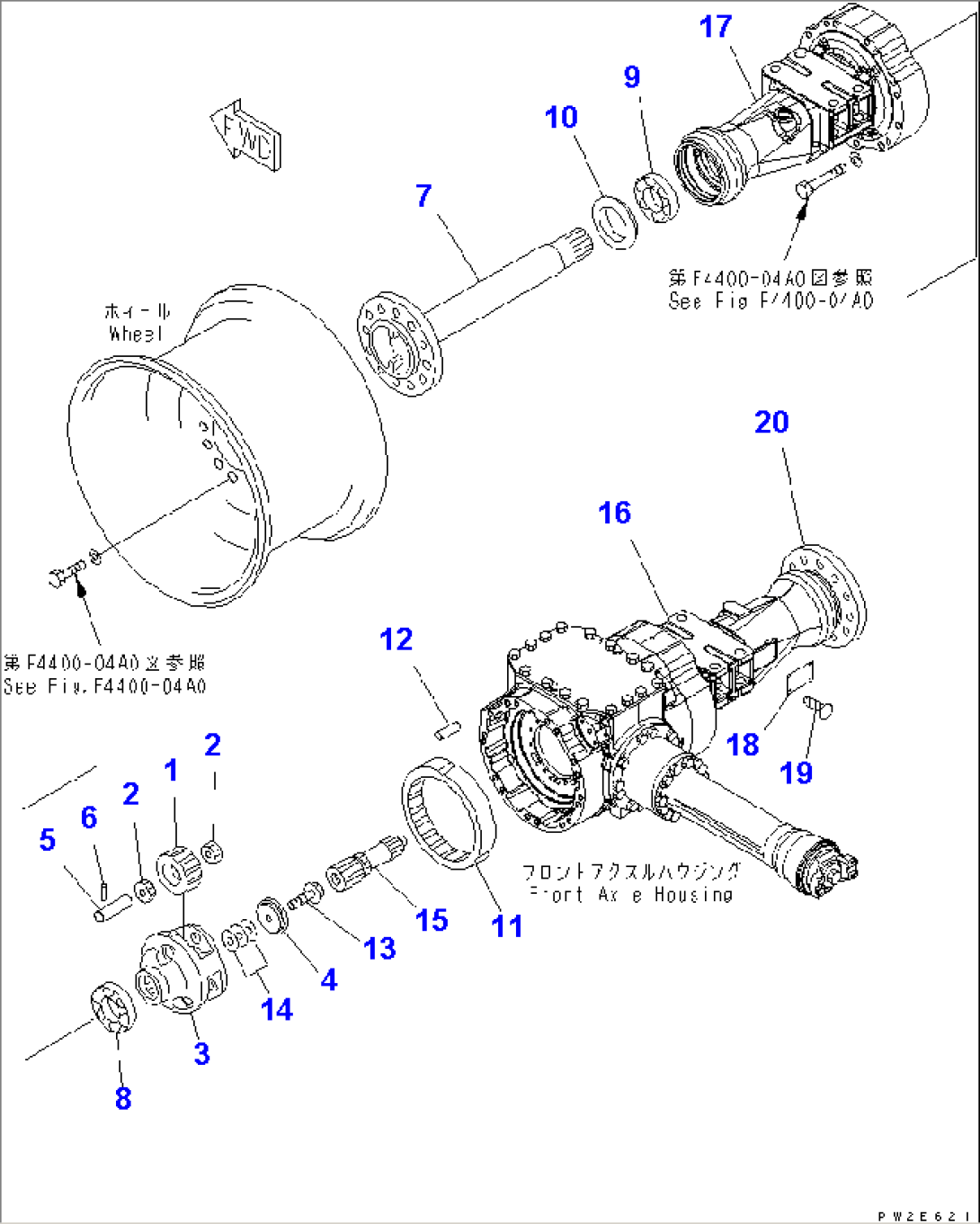

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-04A0. | ||||
| 1 | 418-22-32831 | GEAR | 70001- | |
| 2 | 417-22-22810 | BEARING,CONE | 70001- | |
| 3 | 418-22-32671 | CARRIER | 70001- | |
| 4 | 418-22-32960 | HOLDER | 70001- | |
| 5 | 419-22-12510 | SHAFT | 70001- | |
| 6 | 419-22-12570 | PIN | 70001- | |
| 7 | 418-22-32950 | SHAFT | 70001- | |
| 8 | 418-22-12850 | BEARING | 70001- | |
| 9 | 419-22-22850 | BEARING | 70001- | |
| 10 | 419-22-22861 | SEAL | 70001- | |
| 11 | 418-22-32850 | GEAR | 70007- | |
| \0\418-22-32841 | GEAR | 70001-70006 | ||
| 12 | 417-22-12580 | PIN | 70001- | |
| 13 | 01438-02000 | BOLT | 70001- | |
| 14 | 418-22-21460 | SHIM¤ 0.05MM | 70001- | |
| 418-22-21470 | SHIM¤ 0.2MM | 70001- | ||
| 418-22-21480 | SHIM¤ 0.5MM | 70001- | ||
| 15 | 418-22-32331 | SHAFT | 70001- | |
| 16 | 418-22-33810 | HOUSING,R.H. | 70012- | |
| \0\418-22-33610 | HOUSING,R.H. | 70001-70011 | ||
| 17 | 418-22-33820 | HOUSING,L.H. | 70012- | |
| \0\418-22-33620 | HOUSING,L.H. | 70001-70011 | ||
| 18 | 815-02-10110 | PLATE¤ NAME,(LIMITED SUPPLY) | 70001- | |
| 19 | 04418-13060 | SCREW | 70001- | |
| 20 | 07030-01030 | BREATHER | 70001- |
