| Item | Part No. | Part Name | Qty | Serial No. |
| 418-22-30100 | AXLE ASS'Y,FRONT | 65001- | ||
| (418-22-47010) | AXLE ASS'Y,FRONT (LSD) | 69378- | ||
| (418-22-30050) | AXLE ASS'Y,FRONT (LSD) | 65001-69377 | ||

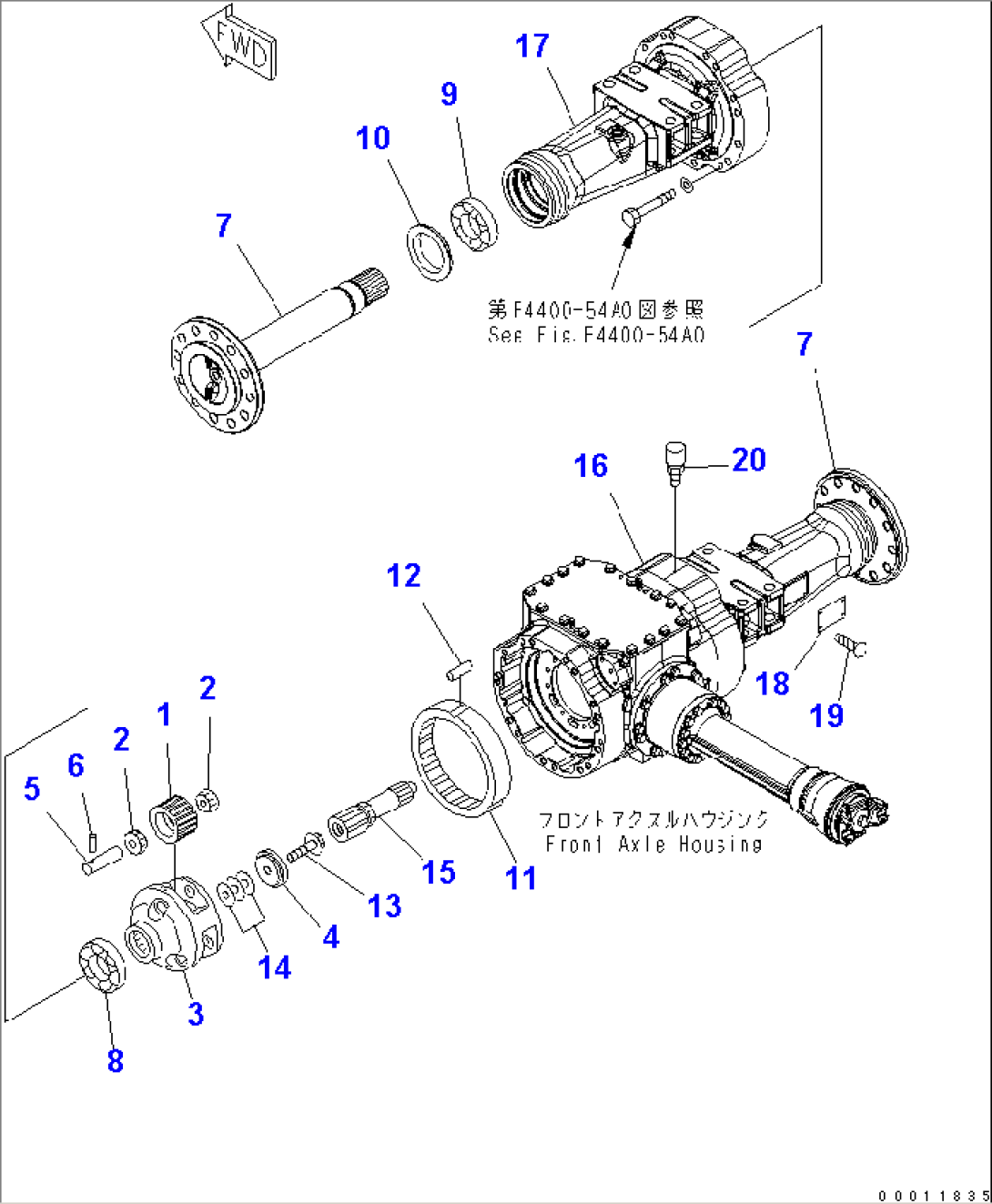

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-04A0. | ||||
| 1 | 418-22-32531 | GEAR | 65001- | |
| 2 | 417-22-22810 | BEARING,CONE | 65001- | |
| 3 | 418-22-32611 | CARRIER | 65001- | |
| 4 | 418-22-32810 | HOLDER | 65001- | |
| 5 | 419-22-12510 | SHAFT | 65001- | |
| 6 | 419-22-12570 | PIN | 65001- | |
| 7 | 418-23-32960 | SHAFT | 65001- | |
| 8 | 418-22-12840 | BEARING | 65001- | |
| 9 | 418-22-12850 | BEARING | 65001- | |
| 10 | 418-22-12460 | SEAL | 65001- | |
| 11 | 418-22-32541 | GEAR | 65001- | |
| 12 | 417-22-12580 | PIN | 65001- | |
| 13 | 01438-02000 | BOLT | 65001- | |
| 14 | 418-22-21460 | SHIM, 0.05MM | 65001- | |
| 14 | 418-22-21470 | SHIM, 0.2MM | 65001- | |
| 14 | 418-22-21480 | SHIM, 0.5MM | 65001- | |
| 15 | 418-22-32421 | SHAFT | 65001- | |
| 16 | 418-22-33710 | HOUSING | 65001- | |
| 17 | 418-22-33720 | HOUSING | 65001- | |
| 18 | 815-02-10110 | PLATE, NAME | 65001- | |
| 19 | 04418-13060 | SCREW | 65001- | |
| 20 | 07030-01030 | BREATHER | 65001- |
