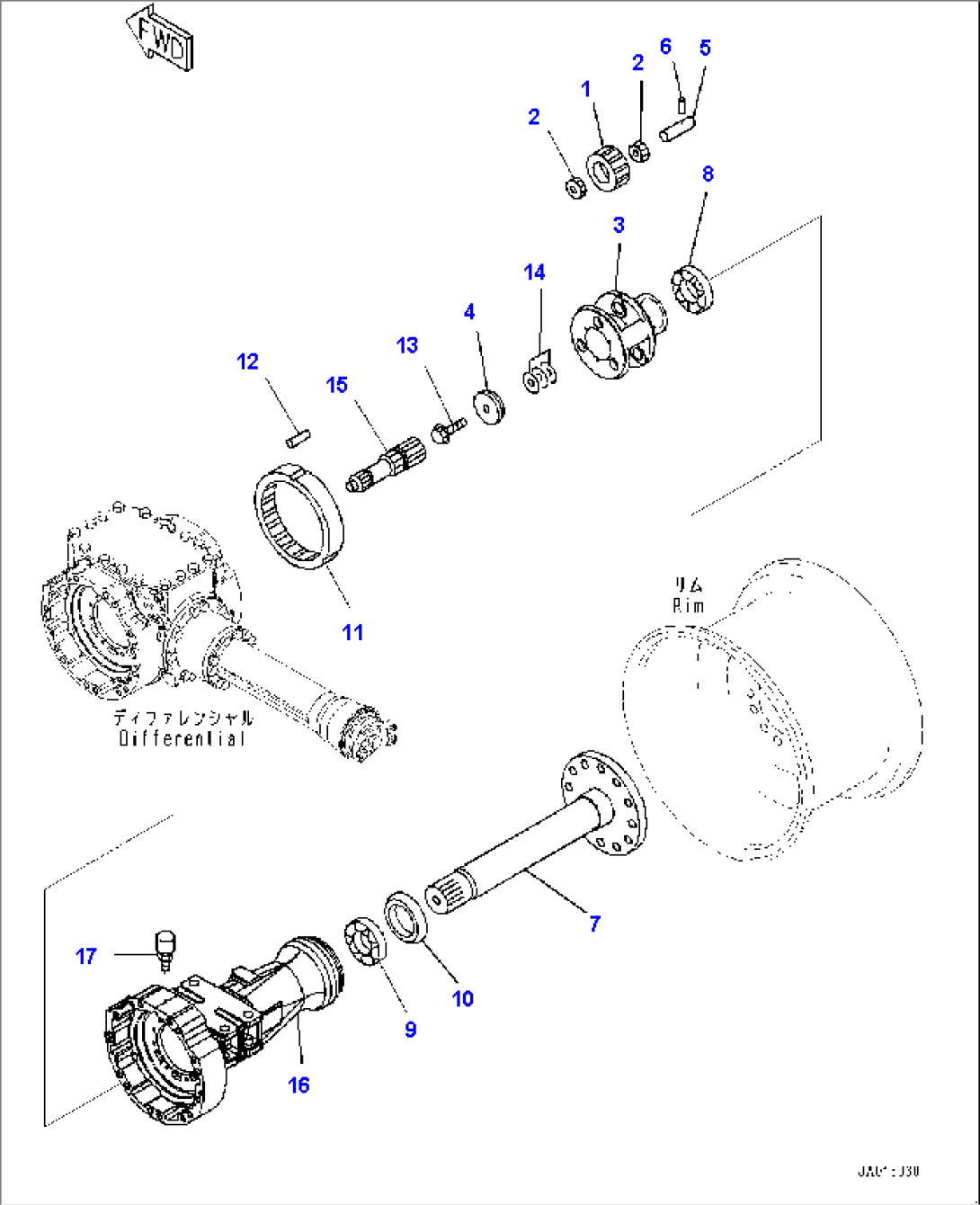

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-22-30100 | Axle Assembly | 80001- | ||
| 418-22-32030 | Final Drive Assembly | 80001- | ||
| 1 | 418-22-32531 | Gear | 80001- | |
| 2 | 417-22-22810 | Bearing | 80001- | |
| 3 | 418-22-32611 | Carrier | 80001- | |
| 4 | 418-22-32810 | Holder | 80001- | |
| 5 | 419-22-12510 | Shaft | 80001- | |
| 6 | 419-22-12570 | Pin | 80001- | |
| 7 | 418-23-32961 | Shaft | 80001- | |
| 8 | 418-22-12840 | Bearing | 80001- | |
| 9 | 418-22-12850 | Bearing | 80001- | |
| 10 | 418-22-12460 | Seal | 80001- | |
| 11 | 418-22-32542 | Gear | 80001- | |
| 12 | 417-22-12580 | Pin, Dowel | 80001- | |
| 13 | 01438-02000 | Bolt | 80001- | |
| 14 | 418-22-21460 | Shim, T=0.05mm | 80001- | |
| 14 | 418-22-21470 | Shim, T=0.2mm | 80001- | |
| 14 | 418-22-21480 | Shim, T=0.5mm | 80001- | |
| 15 | 418-22-32421 | Shaft | 80001- | |
| 16 | 418-22-33710 | Housing | 80001- | |
| 17 | 07030-01030 | Breather | 80001- |
