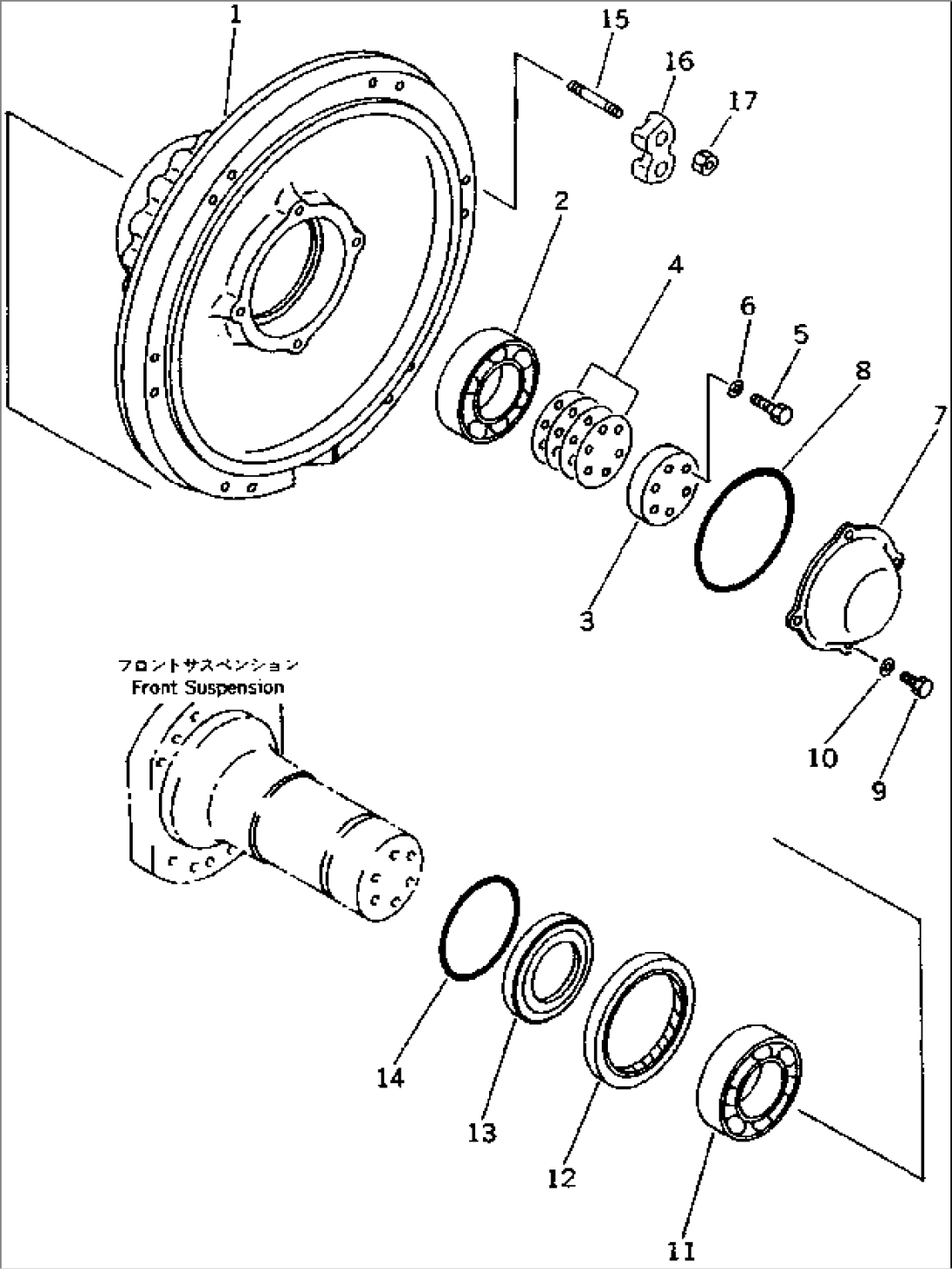

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-27-71210 | HUB,FRONT WHEEL | 1001- | |
| 2 | 566-27-71960 | BEARING,ROLLER, OUTER | 2018- | |
| 2 | 06000-32224 | BEARING,ROLLER, OUTER | 1001-2017 | |
| 3 | 566-30-11210 | RETAINER | 1001- | |
| 4 | 566-30-00011 | SHIM ASS'Y | 1001- | |
| 4 | \6\ | SHIM, 0.2MM | 1001- | |
| 4 | \6\ | SHIM, 0.3MM | 1001- | |
| 4 | \6\ | SHIM, 1.0MM | 1001- | |
| 5 | 01010-61845 | BOLT | 1001- | |
| 6 | 01643-31845 | WASHER | 1001- | |
| 7 | 566-30-11132 | COVER,FRONT WHEEL | 1001- | |
| 8 | 07000-15230 | O-RING | .- | |
| 8 | \0\07000-05230 | O-RING (K9) | 1001-. | |
| 9 | 01010-51225 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 566-27-71940 | BEARING,ROLLER, INNER | 2018- | |
| 11 | 06000-32226 | BEARING,ROLLER, INNER | 1001-2017 | |
| 12 | 566-27-41412 | SEAL,OIL (K9) | 1001- | |
| 13 | 566-27-41130 | RETAINER | 1001- | |
| 14 | 07000-15200 | O-RING | .- | |
| 14 | \0\07000-05200 | O-RING (K9) | 1001-. | |
| 15 | 01144-82480 | STUD | 1001- | |
| 16 | 569-22-62841 | CLAMP | 1001- | |
| 17 | 569-22-62870 | NUT | 1001- |
